OCL Architectural Lighting · Sconce
OCL's ADA-compliant cylinder wall sconce in indoor and wet-location outdoor versions, with up-only or up-and-down illumination and narrow/wide flood optics — delivering 900–2,700 delivered lumens from a 5" die-cast aluminum body.
| Wattage | 10–30 W |
|---|---|
| Luminous flux | 900–2700 lm |
| Efficacy | 90 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| IP rating | IP66 |
| Mounting | Indoor ADA-compliant wall sconce, Outdoor ADA-compliant wall sconce (wet location) |
| Dimensions | 8" high x 5" x 4" cylinder; 6 lb |
| Distribution | Up, Down, Up and Down |
| Finishes | Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured, RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); Lutron EcoSystem 1% available as modification; field-replaceable driver; universal 120–277V input |
| Rated environments | Dry, Damp (optional ULD label), Wet (outdoor O1OA) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

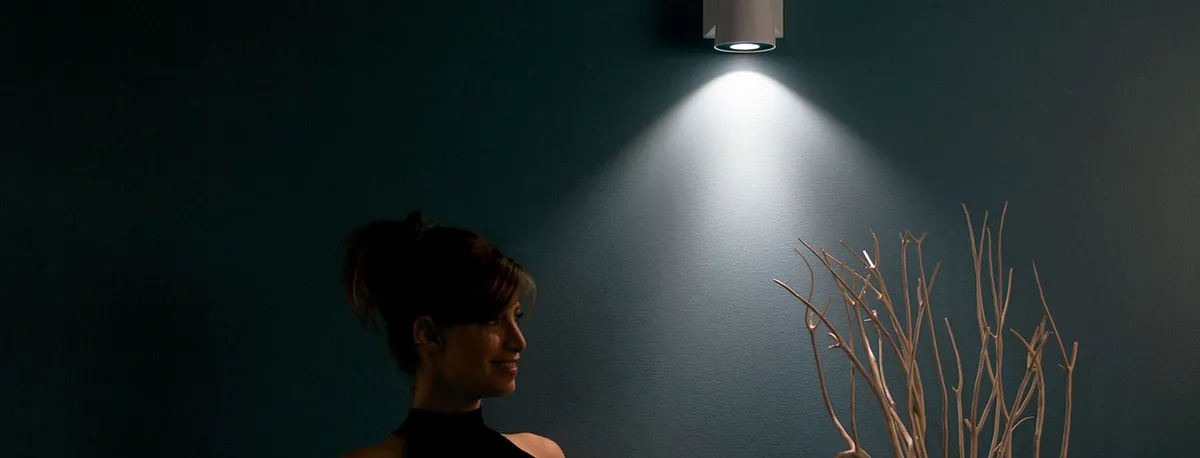

Vega is OCL Architectural Lighting's cylinder wall sconce, offered as an indoor ADA-compliant sconce (S1SA) and a wet-location outdoor ADA-compliant sconce (O1OA, IP66). The die-cast aluminum body manages thermal load and threads into an injection-molded acrylic diffuser that is UV stable, F1 rated and UL-94 HB flame class; the LED array and driver are field replaceable. Two configurations are offered — VA1 up-only or down-only illumination and VA2 simultaneous up-and-down illumination — each with narrow flood (24°, NF) or wide flood (50°, WF) reflectors. At 3500K / 80+ CRI, VA1 delivers 900 lm (LED1, 10 W), 1,350 lm (LED2, 15 W) or 2,000 lm (LED3, 25 W), and VA2 delivers 1,800 lm (LED1, 20 W) or 2,700 lm (LED2, 30 W), spanning 900 to 2,700 delivered lumens with efficacy published to 90 lm/W (multiply by 0.95 for 2700K, 0.97 for 3000K, 1.03 for 4000K; 90+ CRI lumens use a 0.85 multiplier). Color temperatures are 2700K, 3000K, 3500K and 4000K in 80+ or 90+ CRI. Fixtures run on universal 120–277V input with 0-10V dimming to 1% standard (DM1), 1% minimum dimming level, power factor >0.9 and THD <20%; a Lutron EcoSystem 1% modification is available. Eleven standard powder-coat finishes are offered (black, brass metallic, bronze, black textured, graphite, goldtastic, matte white, steel gray, silver metallic, sky white, white textured) with RAL, Pantone and custom finishes. The luminaire measures 8" high x 5" x 4" and weighs 6 lb. ETL listed to UL 1598 for dry locations (optional ULD damp label on S1SA), with the O1OA rated for wet locations (IP66), and backed by a five-year limited warranty.
Pick from Vega's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
