OCL Architectural Lighting · Sconce
OCL's ADA-compliant architectural wall sconce with a tapering die-cast arch design and decorative horizontal bars, indoor and wet-location outdoor versions in 18/24/36/48" — delivering 1,050–4,600 delivered lumens behind extruded white acrylic, mountable vertically or horizontally.
| Wattage | 20–80 W |
|---|---|
| Luminous flux | 1050–4600 lm |
| Efficacy | 58 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Indoor ADA-compliant wall sconce, Outdoor ADA-compliant wall sconce (wet location), Vertical or horizontal orientation |
| Dimensions | 18" / 24" / 36" / 48" long x 4" deep x 6" wide |
| Distribution | Direct/Indirect |
| Finishes | Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured, RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); dimming to 0.1% and Lutron EcoSystem 1% (LDE1) available as modification with remote drivers; BIOS SkyBlue circadian option; field-replaceable driver; universal 120–277V input; Nichia 757 LEDs |
| Rated environments | Dry, Damp (optional ULD label), Wet (outdoor O1OA) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Allure is OCL Architectural Lighting's ADA-compliant sconce, offered as an indoor sconce (S1SA) and a wet-location outdoor sconce (O1OA). It features solid aluminum die-cast ends with a domed top, a 0.125"-thick extruded aluminum back channel, and decorative die-cast horizontal bars with a distinctive tapering arch design. The lens is 3/16"-thick extruded virgin white acrylic (45% DR high impact, UV stable, F1 rated, UL-94 HB flame class) in matte white or gloss white (gloss is required for the outdoor O1OA). Allure can be mounted vertically or horizontally, and a hinged front face simplifies maintenance. Four lengths are offered — 18", 24", 36" and 48" — with delivered output at 3500K / 80+ CRI of 1050/1600/2600/3700 lm (LED1, 20/30/45/65 W) or 1350/2000/3250/4600 lm (LED2, 25/35/60/80 W), spanning 1050 to 4600 delivered lumens (multiply by 0.95 for 2700K, 0.97 for 3000K, 1.03 for 4000K; 90+ CRI uses a 0.85 multiplier). The distribution is near-symmetric direct/indirect (roughly 51% down / 49% up), with published efficacy of 58 lm/W on the 18" LED1. Color temperatures are 2700K, 3000K, 3500K and 4000K in 80+ CRI (R9 > 0) or 90+ CRI (R9 > 50). OCL proprietary LED arrays use Nichia 757 diodes on universal 120–277V input with 0-10V dimming to 1% standard (DM1); dimming to 0.1% and Lutron EcoSystem 1% are available as modifications with remote drivers, and a BIOS SkyBlue circadian light engine is offered. Eleven standard powder-coat finishes are available (black, brass metallic, bronze, black textured, graphite, goldtastic, matte white, steel gray, silver metallic, sky white, white textured) with RAL, Pantone and custom finishes. Made in USA; S1SA is ETL listed to UL 1598 for dry locations (optional ULD damp label) and O1OA is ETL listed to UL 1598 for wet locations. RoHS compliant, WELL-aligned with the BIOS option, and backed by a five-year limited warranty.
Pick from Allure's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
OCL Architectural Lighting · Sconce
OCL's ADA-compliant linear wall sconce with laser-cut decorative aluminum faces over a 1.5"-wide back channel, indoor and wet-location outdoor versions in 24/36/48/60" — delivering 500–1,700 delivered lumens, mountable vertically or horizontally.
ILEX · Sconce
Metro Series wall sconce — a linear White Shade wrapped in slim powder-coated metalwork on a curved arm, integrated LED delivering 3,000 lm at 2700K, 90 CRI.
OCL Architectural Lighting · Sconce

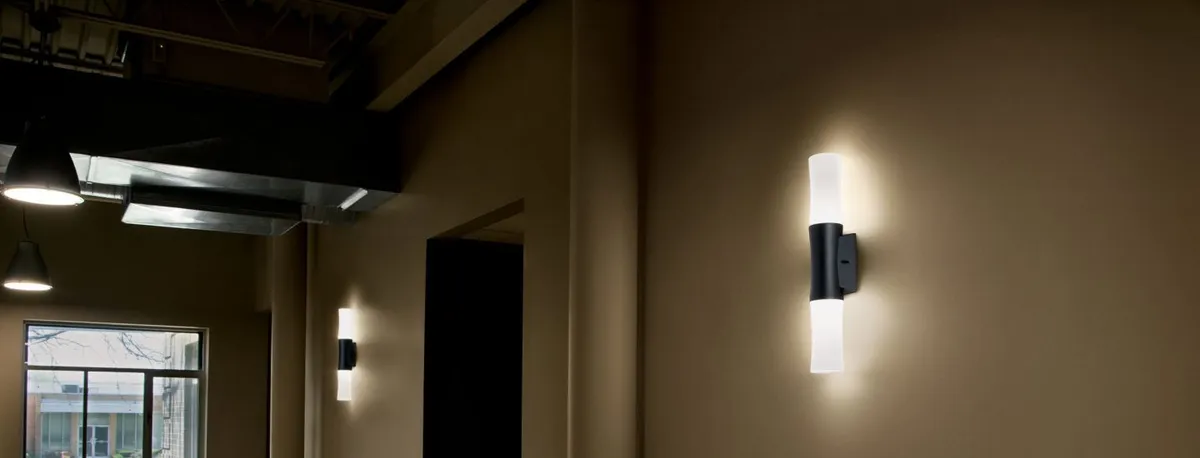

Cylindrical die-cast aluminum ADA wall sconce with a segmented "bamboo" body, for indoor or IP66 wet-location outdoor use in 16" and 24" sizes — up- or down-light (BA1) or up-and-down (BA2), delivering 850–2,550 lm at 2700–4000K, 80+/90+ CRI.
