OCL Architectural Lighting · Sconce
Linear ADA-compliant wall sconce for indoor or wet-location outdoor use, in 24/36/48/60" lengths — an extruded aluminum back channel with a slit-cutout decorative bar and white acrylic diffuser, delivering 800–2,650 lm at 2700–4000K, 80+/90+ CRI.
| Wattage | 15–55 W |
|---|---|
| Luminous flux | 800–2650 lm |
| Efficacy | 48 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Indoor ADA-compliant wall sconce, Outdoor ADA-compliant wall sconce (wet location), Vertical or horizontal orientation |
| Dimensions | 24" / 36" / 48" / 60" long × 3.5" tall × 3" deep; 2.5" wide back channel; 5–11 lb |
| Finishes | Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured, RAL / Pantone / custom |
| Dimming | 0–10V dimming to 1% standard (DM1); Lutron EcoSystem 1% (LDE1) and dim-to-0.1% available as modifications; universal 120–277V input; Nichia 757 LEDs |
| Rated environments | Dry, Damp (S1SA with optional ULD label), Wet (O1OA outdoor) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

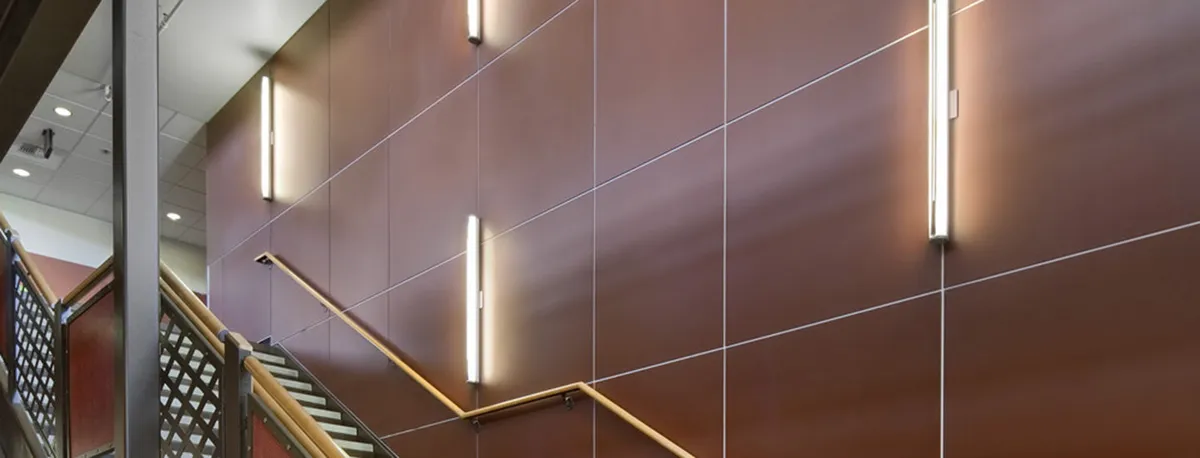

Vapor is a linear ADA-compliant wall sconce from OCL Architectural Lighting, offered as an indoor sconce (S1SA) or a wet-location outdoor sconce (O1OA) and mountable vertically or horizontally. It is built on an extruded aluminum back channel 2.50" wide and 0.125" thick with a matte anodized coating, solid aluminum die-cast ends, a 0.08" aluminum decorative bar with a slit cutout, and a 3/16" extruded virgin white acrylic diffuser (45% DR high impact, UV stable, F1 and UL-94 HB rated) in Matte White (MW) or Gloss White (GW, required for the O1OA outdoor version). Vapor comes in four lengths — 24", 36", 48" and 60" — each roughly 3.5" tall × 3" deep and weighing 5–11 lb. Two LED outputs are published: LED1 delivers 800 lm (24"), 1,250 lm (36"), 1,650 lm (48") and 2,100 lm (60") at 15/25/35/40 W, and LED2 delivers 1,000 / 1,550 / 2,100 / 2,650 lm at 20/30/40/55 W — up to 48 lm/W, all values at 3500K and 80+ CRI (90+ CRI with R9>50 is available; multiply lumens by 0.85). Color temperature options are 2700K, 3000K, 3500K and 4000K. The luminaire uses OCL's proprietary LED arrays with Nichia 757 diodes on a universal 120–277V driver, ships standard with 0–10V dimming to 1% (DM1), and offers Lutron EcoSystem 1% (LDE1) and dim-to-0.1% as modifications. Eleven powder-coat finishes are offered plus RAL/Pantone/custom. The S1SA is ETL listed to UL 1598 for dry locations (optional ULD damp label); the O1OA is ETL listed to UL 1598 for wet locations. Vapor carries a 5-year warranty and a BIOS SkyBlue circadian light-engine option, and is designed and fabricated in St. Louis, Missouri.
Pick from Vapor's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
