OCL Architectural Lighting · Sconce
OCL's cylindrical banded LED sconce (series RG1) in two sizes (18 and 24 in), delivering 1,030–1,940 delivered lumens at 20–35 W in 80+ or 90+ CRI.
| Wattage | 20–35 W |
|---|---|
| Luminous flux | 1030–1940 lm |
| Efficacy | 55 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Wall sconce, S1SA indoor ADA-compliant, 4x4" octagon or 4" round J-box |
| Dimensions | 18 or 24 in H × 6.7 in dia |
| Distribution | Direct / indirect (narrow flood; ~50% down / 50% up) |
| Finishes | Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured, Polished Aluminum (premium metal), Brushed Aluminum (premium metal), Pewter (premium metal), Polished Brass (premium metal), Brushed Brass (premium metal), Antique Brass (premium metal), Statuary Bronze (premium metal), Satin Nickel (premium metal), Oil Rubbed Bronze (premium metal), RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); 0.1% and Lutron EcoSystem (LDE1) available; universal 120–277V; field-replaceable electronic driver; OCL proprietary LED arrays with Nichia 757 diodes |
| Rated environments | Dry, Damp (optional ULD label) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

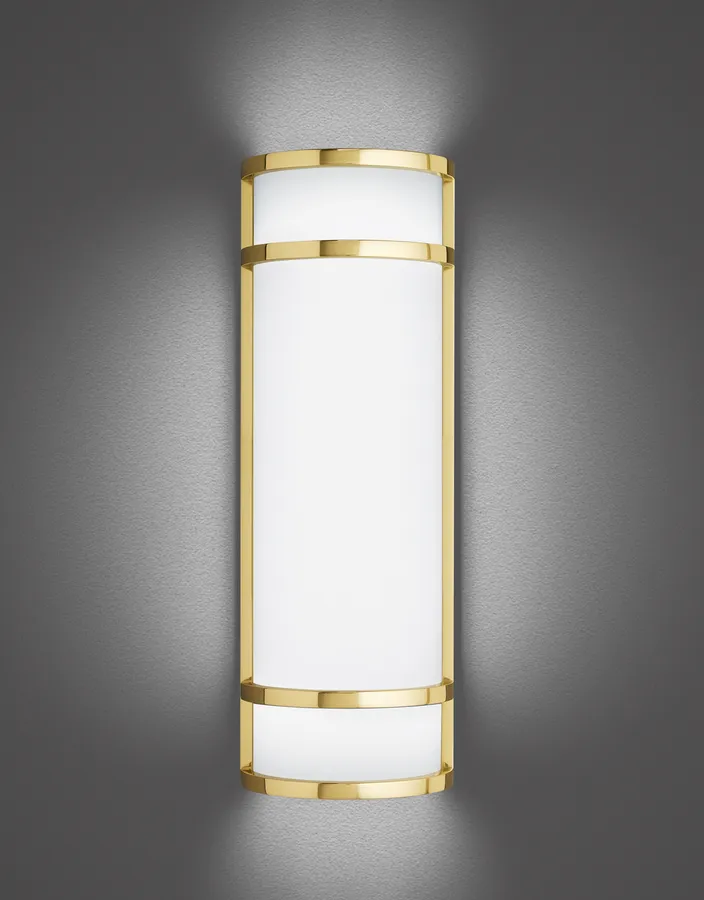

Regency (series RG1) is OCL Architectural Lighting's robust cylindrical wall sconce, constructed from solid aluminum or brass bar stock with a 1/8" thick extruded virgin white acrylic diffuser (UV stable, UL-94 HB flame class); faux-acrylic diffusers are thermally formed with colors mixed completely through to avoid noticeable fading. It is offered in two sizes — 18 and 24 in high — on a 6.7" diameter body. Two LED packages are published (values at 3500K, 80+ CRI; multiply by 0.95 for 2700K, 0.97 for 3000K, 1.03 for 4000K, and 0.85 for 90+ CRI): LED1 delivers 1,030 lm (18 in, 20 W) and 1,280 lm (24 in, 25 W); LED2 delivers 1,550 lm (18 in, 30 W) and 1,940 lm (24 in, 35 W). Efficacy is about 55 lm/W (18 in LED1), with a narrow-flood distribution split roughly 50% down / 50% up. Available in both 80+ CRI (80 RA, R9>0) and 90+ CRI (90 RA, R9>50), in 2700K, 3000K, 3500K and 4000K on a universal 120–277V supply with 0-10V dimming to 1% standard (DM1); 0-10V to 0.1% and Lutron EcoSystem (LDE1) are available as modifications. The S1SA indoor ADA-compliant hanging system mounts to a 4x4" octagon or 4" round J-box (by others). OCL proprietary LED arrays use Nichia 757 diodes with a field-replaceable driver. Diffusers are offered in gloss white, matte white, faux alabaster and white swirl. Finishes include eleven standard powder coats (black, brass metallic, bronze, black textured, graphite, goldtastic, matte white, steel gray, silver metallic, sky white, white textured) and nine premium metal finishes (polished aluminum, brushed aluminum, pewter, polished brass, brushed brass, antique brass, statuary bronze, satin nickel, oil-rubbed bronze), plus RAL, Pantone and custom options. Designed and fabricated in St. Louis, Missouri; ETL listed to UL 1598 for dry locations with an optional damp (ULD) label, RoHS compliant, and covered by a five-year limited warranty.
Pick from Regency's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
