OCL Architectural Lighting · Sconce
OCL's ADA-compliant architectural wall sconce with a clean tapering arch and matte-anodized back channel, indoor and wet-location outdoor versions in 18/24/36/48" — delivering 1,050–4,600 delivered lumens behind extruded white acrylic, mountable vertically or horizontally.
| Wattage | 20–80 W |
|---|---|
| Luminous flux | 1050–4600 lm |
| Efficacy | 58 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Indoor ADA-compliant wall sconce, Outdoor ADA-compliant wall sconce (wet location), Vertical or horizontal orientation |
| Dimensions | 18" / 24" / 36" / 48" long x 4" deep x 6" wide |
| Distribution | Direct/Indirect |
| Finishes | Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Matte White, Steel Gray, Silver Metallic, Sky White, White Textured, RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); dimming to 0.1% and Lutron EcoSystem 1% (LDE1) available as modification with remote drivers; BIOS SkyBlue circadian option; field-replaceable driver; universal 120–277V input; Nichia 757 LEDs |
| Rated environments | Dry, Damp (optional ULD label), Wet (outdoor O1OA) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

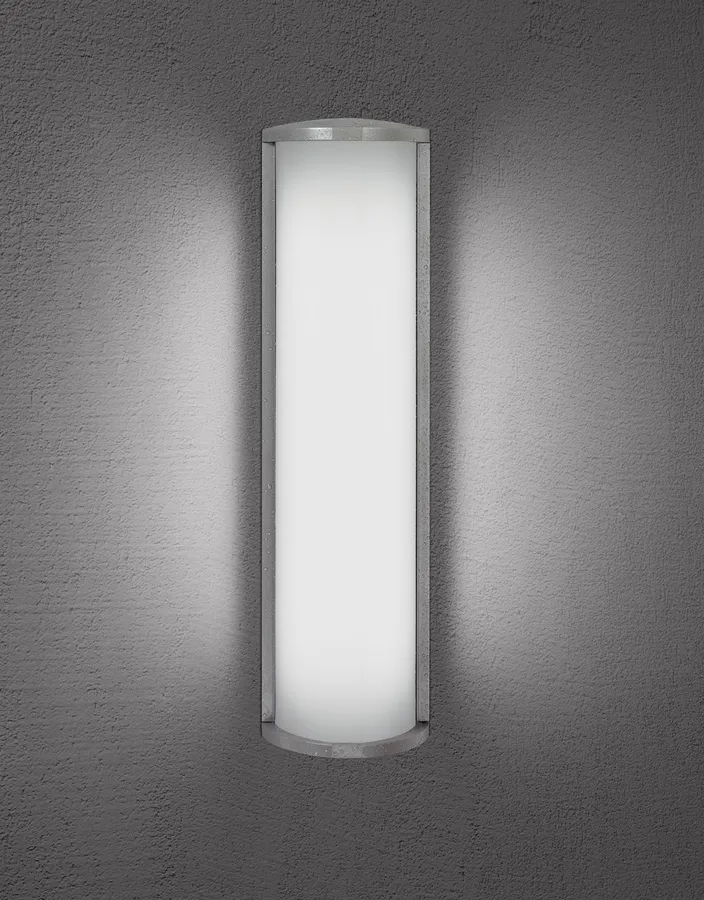

Newport is OCL Architectural Lighting's ADA-compliant sconce, offered as an indoor sconce (S1SA) and a wet-location outdoor sconce (O1OA). It features solid aluminum die-cast ends with a domed top and a distinctive tapering arch design over a 0.125"-thick matte-anodized extruded aluminum back channel — a cleaner, bar-free companion to OCL's Allure. The lens is 3/16"-thick extruded virgin white acrylic (45% DR high impact, UV stable, F1 rated, UL-94 HB flame class) in matte white or gloss white (gloss is required for the outdoor O1OA). Newport can be mounted vertically or horizontally, and a hinged front face simplifies maintenance. Four lengths are offered — 18", 24", 36" and 48" — with delivered output at 3500K of 1050/1600/2600/3700 lm (LED1, 20/30/45/65 W) or 1350/2000/3250/4600 lm (LED2, 25/35/60/80 W), spanning 1050 to 4600 delivered lumens (multiply by 0.95 for 2700K, 0.97 for 3000K, 1.03 for 4000K; wattage and lumen data are approximate pending LM-79 testing). The distribution is near-symmetric direct/indirect (roughly 51% down / 49% up), with published efficacy of 58 lm/W on the 36" LED1. Color temperatures are 2700K, 3000K, 3500K and 4000K at 80+ CRI. OCL proprietary LED arrays use Nichia 757 diodes on universal 120–277V input with 0-10V dimming to 1% standard (DM1); dimming to 0.1% and Lutron EcoSystem 1% are available as modifications with remote drivers, and a BIOS SkyBlue circadian light engine is offered. Eleven standard powder-coat finishes are available (black, brass metallic, bronze, black textured, graphite, goldtastic, matte white, steel gray, silver metallic, sky white, white textured) with RAL, Pantone and custom finishes. Made in USA; ETL listed to UL 1598 for dry locations (optional ULD damp label on S1SA) with the O1OA rated for wet locations, and backed by a five-year limited warranty.
Pick from Newport's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
