Round aluminium and methacrylate disc sconce by Folio in Ø200/250/300 mm, wall- or ceiling-mounted, at CRI > 90.
| Wattage | 13–19 W |
|---|---|
| Luminous flux | 533–804 lm |
| Efficacy | 42 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Wall, Ceiling |
| Dimensions | Ø200–Ø300 mm × 35–48 mm deep |
| Distribution | Direct |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

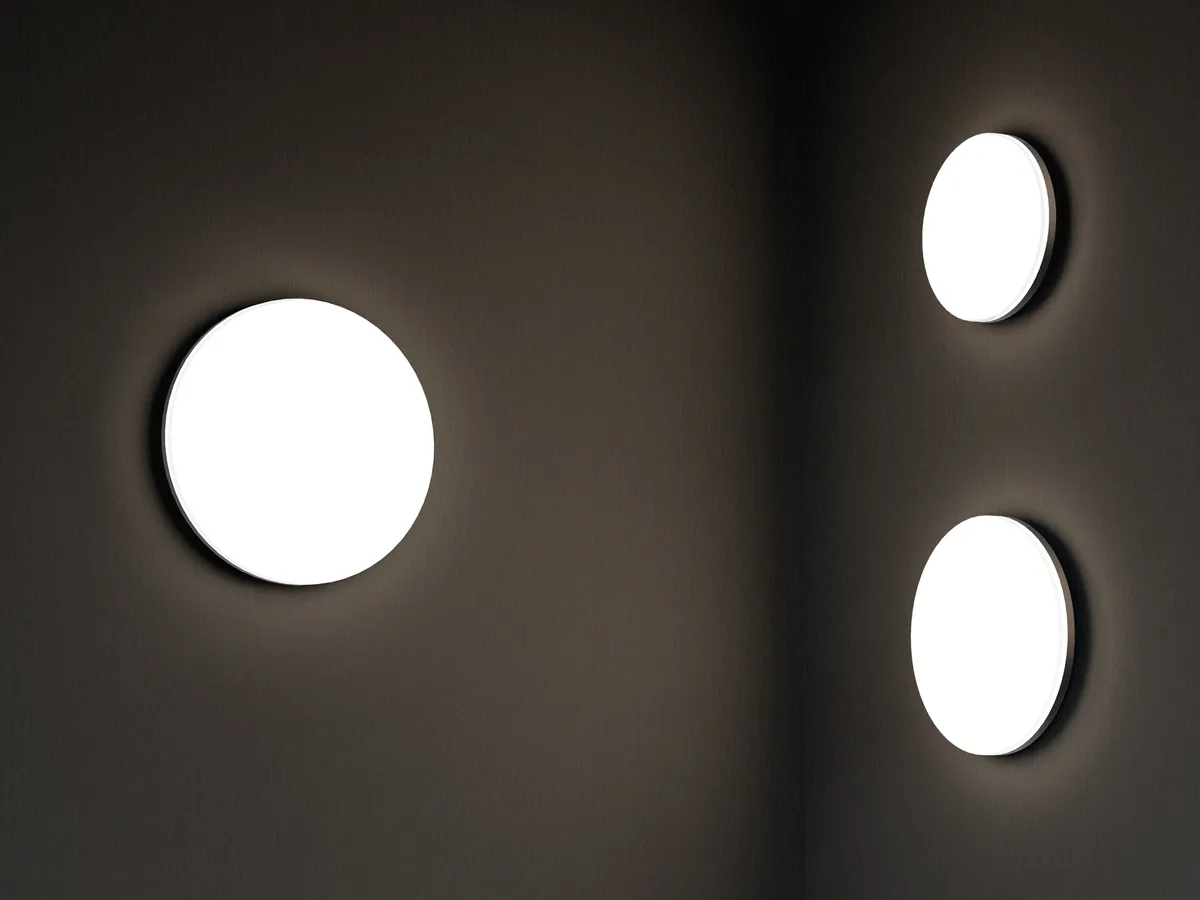

Dot is a circular aluminium disc luminaire from Folio's Architectural range, with a methacrylate diffuser and Nichia LEDs, offered as Dot wall or Dot ceiling. It comes in Ø200, Ø250 and Ø300 mm sizes delivering 533–804 lm at 13–19 W. Standard CCTs are 2700 K, 3000 K, 3500 K, 4000 K and 5700 K at CRI Ra ≥ 90 (R9 ≥ 50), running on 24 V DC with a remote or integrated power supply. It is rated L90 > 60,000 hours at 50 °C and carries a 2-year warranty.
Pick from Dot's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
