2x4 recessed healthcare troffer with three switched compartments - 1400 lm reading (3000K), 3400 lm ambient (3000K), and 7300 lm exam (4000K) - at 90+ CRI with high R9.
| Wattage | 25–98 W |
|---|---|
| Luminous flux | 1400–7300 lm |
| Efficacy | 74 lm/W |
| Color temperature (CCT) | 3000K / 4000K |
| CRI | ≥90 |
| Mounting | Recessed (9/16 slot grid), Recessed (T-bar 9/16 / 15/16), Recessed (sheetrock, flange kit) |
| Dimensions | 24" W x 48" L x 4-1/8" H (2x4 troffer) |
| Distribution | Direct |
| Finishes | White |
| Dimming | 0-10V dimming 1% (120-277V) standard; non-dim, Lutron EcoSystem 1%, custom controls; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

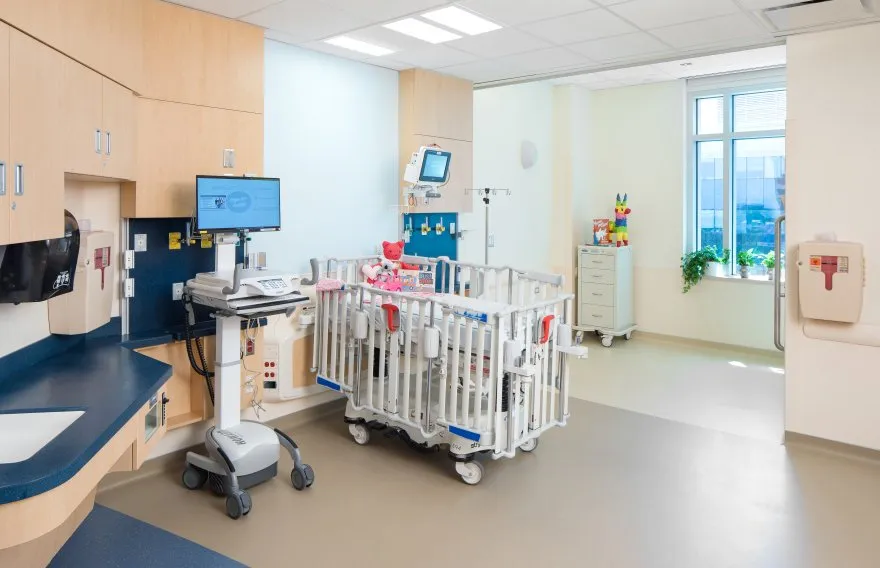

Medilite is Picasso Lighting's patient-room troffer, built to deliver the three lighting scenes a hospital room requires - exam, reading, and general/ambient - from a single 24 in x 48 in x 4-1/8 in recessed housing. The published performance table lists a 1400-lumen reading section at 25 W (3000K), a 3400-lumen ambient section at 52 W (3000K), and a 7300-lumen examination section at 98 W (4000K, 75 lm/W); configurations are offered with all three circuits or ambient/exam only, and adult or child layouts. Unlike common 22-gauge pre-painted folded-steel troffers, the housing is die-formed 20-gauge steel with welded and sanded corners for a seamless, light-leak-free body, and one door with semi-frosted lenses covers all three compartments for easy cleaning. CRI is 90+ with a high R9 value for color rendering in clinical settings. It mounts in 9/16 slot-grid, T-bar (9/16 and 15/16), and sheetrock ceilings via a flange kit, with unrestricted ceiling thickness. Drivers are universal 110-277 VAC with 0-10V 1% dimming, non-dim, Lutron EcoSystem 1%, and custom control options, plus optional occupancy sensor, 6 ft whip, and emergency battery backup. BABAA-compliant ordering is offered; fixtures are IBEW-manufactured in Moonachie, NJ, UL listed for dry and damp locations, rated 50,000 hours, with a limited five-year warranty.
Pick from Medilite's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
