2x2 recessed LED troffer with acrylic center rail, 3000 or 4000 delivered lumens at up to 108 lm/W, 2700-4000K, for slot-grid, T-bar, and sheetrock ceilings.
| Wattage | 28.5–37.2 W |
|---|---|
| Luminous flux | 3000–4000 lm |
| Efficacy | 108 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (15/16 flat tee), Recessed (9/16 flat tee), Recessed (9/16 slot grid / interlude tee) |
| Dimensions | 24" x 24" x 4-1/4" H |
| Distribution | Direct |
| Finishes | White, Custom (consult factory) |
| Dimming | 0-10V 1% dimming standard (120-277 VAC); non-dim, Lutron EcoSystem 1%, custom controls; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

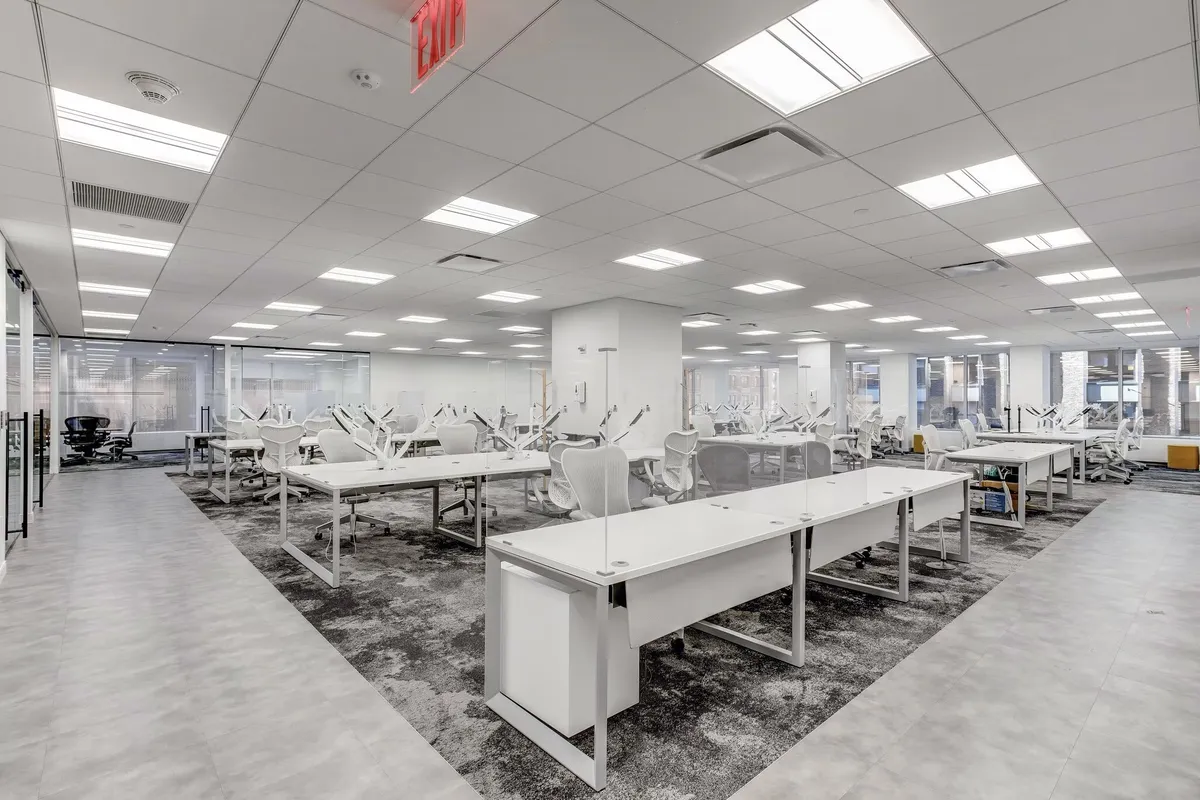

Jacqueline 2x2 is a 24" x 24" recessed troffer related to Picasso Lighting's Rail and EZ-Rail series, but with a frosted acrylic rail in the center instead of aluminum — still leaving room for occupancy sensors and other sensing equipment. The housing is die-formed 20-gauge steel with welded and sanded corners for a seamless, light-leak-free troffer at 4-1/4" height, with frosted (standard) or soft-white acrylic (optional) side lenses that lift and shift out for service. Output is ordered as 3000 or 4000 delivered lumens, drawing 28.5 W and 37.2 W respectively (106-108 lm/W at 3000K), in 2700/3000/3500/4000K at 80+ or 90+ CRI with tunable white (2700-5000K) available. Drivers are universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and custom controls plus an emergency battery-backup driver, occupancy sensor, air-handling (return) option, and 6 ft whip are optional. It mounts in 15/16 and 9/16 flat tee, 9/16 slot grid, and interlude tee ceilings for flat or tegular tile (sheetrock and other ceilings via factory), recessed only. Fixtures are IBEW manufactured and assembled in the USA, BABAA-qualified, UL listed for dry and damp locations, with 50,000-hour rated LED life and a five-year limited warranty.
Pick from Jacqueline 2x2's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
