2 ft by 2 ft recessed indirect luminaire with a frosted acrylic dome dish for a soft cloud-like appearance, delivering 2,500 to 4,500 lumens in 2700-4000K plus tunable white.
| Wattage | 29–52 W |
|---|---|
| Luminous flux | 2500–4500 lm |
| Efficacy | 87 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (15/16 flat tee grid), Recessed (9/16 flat tee grid), Recessed (9/16 tegular / slot grid tee), Recessed (sheetrock ceiling) |
| Dimensions | 24" x 24" (2x2); 5" fixture height |
| Distribution | Indirect |
| Finishes | Standard White (powder coat), Custom trim colors (consult factory) |
| Dimming | 0-10V 1% dimming standard; non-dim and Lutron EcoSystem 1% selectable; PoE, DALI, DMX on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

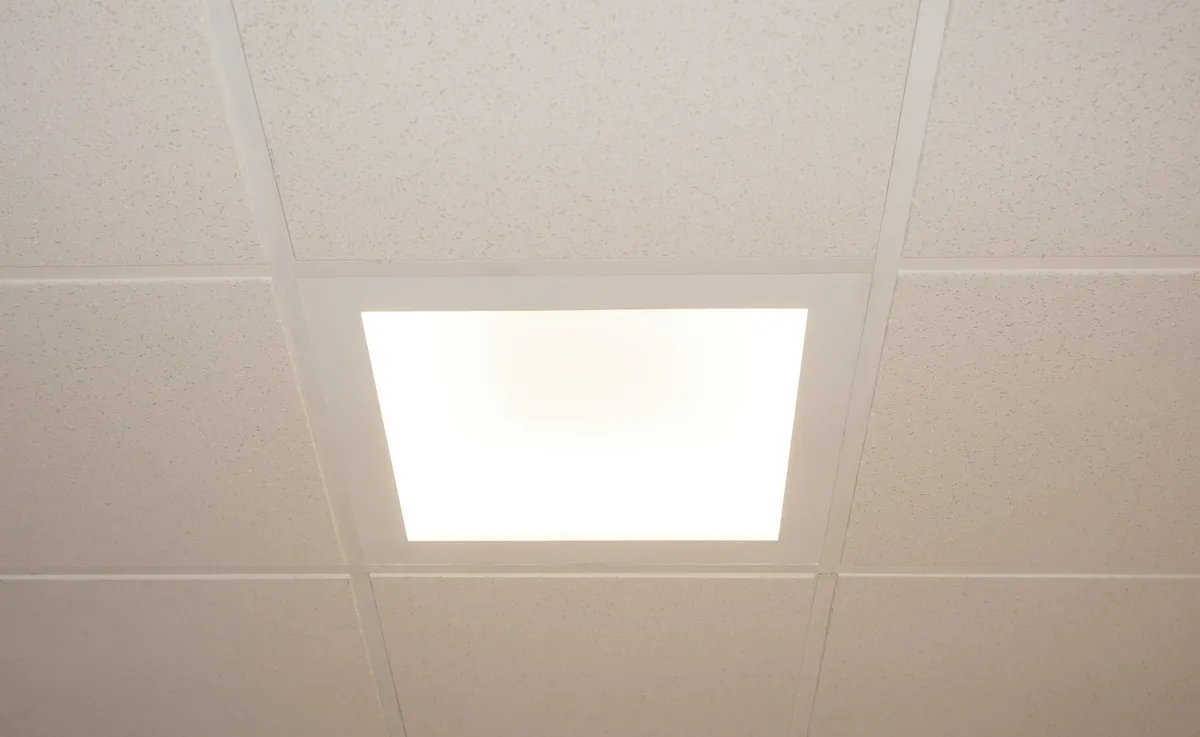

Dream 2x2 is a recessed luminaire from Picasso Lighting with indirect LEDs arranged in a square pattern around a dome-shaped frosted acrylic dish, producing a diffused, cloud-like appearance that works as an individual fixture or clustered across a grid ceiling. The housing is die-formed 20-gauge steel, 24 inches square and 5 inches tall, with a decorative trim in standard white that can be ordered in other colors. The LED performance table publishes 2,500, 3,500, and 4,500 total lumens at 29, 41, and 52 W (86 lm/W at 3000K); the spec-sheet builder lists the low package as 2,600 TL. CCT options are 2700K, 3000K, 3500K, and 4000K at 80+ or 90+ CRI, with tunable white 2700-5000K also selectable. Drivers are UL-recognized, universal 110-277 VAC with 0-10V 1% dimming; non-dim, Lutron EcoSystem 1%, and custom controls are selectable, with PoE, DALI, and DMX available on request, plus options for emergency battery backup, remote occupancy sensor, 6 ft whip, and Lutron Athena wireless nodes. Available only as a standard 2x2 recessed fixture for slot grid, T-bar, and sheetrock ceilings, it is IBEW manufactured and assembled in the USA with a BABAA-compliant ordering option, UL listed for dry and damp locations, rated for 50,000-hour LED life, and covered by a limited five-year warranty.
Pick from Dream 2x2's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
