Square recessed LED troffer with a shadowless soft-white drop-dish diffuser, 3000 to 6000 lm packages, 2700-4000K, in 24/30/36/48-inch square sizes for grid and sheetrock ceilings.
| Luminous flux | 3000–6000 lm |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (9/16 slot grid), Recessed (T-bar 9/16 and 15/16), Surface |
| Dimensions | 30" x 30" x 6" D standard; 24"/30"/36"/48" square sizes + custom (surface version 5" D) |
| Distribution | Direct |
| Finishes | White, Custom (consult factory) |
| Dimming | 0-10V 1% dimming standard (120-277 VAC); non-dim, Lutron EcoSystem 1%, custom controls; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

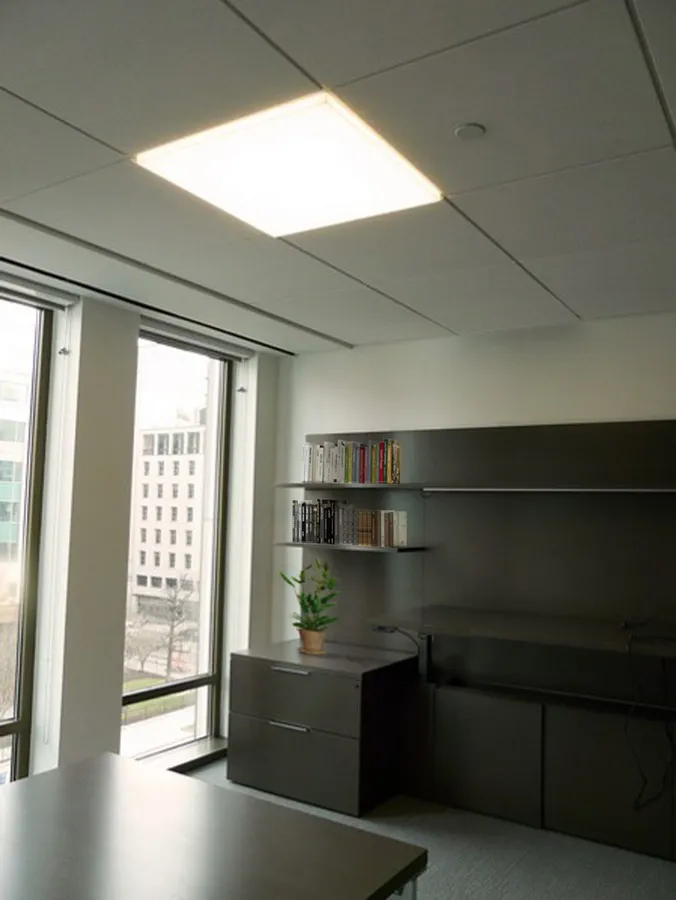

Becca Dropped Lens is a square recessed troffer whose shadowless soft-white acrylic dish diffuser drops one inch below the finished ceiling; because the dish is formed rather than molded, its corners stay sharp for a frameless look. The housing is die-formed 20-gauge steel with welded and sanded corners for a seamless, light-leak-free troffer, and the dish-and-reflector assembly installs on torsion springs with a suction-cup removal tool provided. The standard fixture is 30" x 30" x 6" deep, ordered in 24", 30", 36", and 48" square sizes plus custom, with lumen packages ordered per square foot (480/640/800/960 lm/sq ft); published photometry covers 3000 to 6000 delivered lumens, with the 4170 lm package drawing 38 W (109 lm/W at 3000K). CCTs are 2700/3000/3500/4000K at 80+ or 90+ CRI, with tunable white (2700-5000K) available. Drivers are universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and custom controls plus an emergency battery-backup driver are optional, and options include a flush lens, IK8 rating, and 6 ft whip. It mounts in 9/16 slot grid and 9/16 or 15/16 T-bar ceilings (sheetrock and other ceiling types via factory), and a surface-mount version with 5" depth is also offered. Fixtures are IBEW manufactured and assembled in the USA, BABAA-qualified, UL listed for dry and damp locations, with 50,000-hour rated LED life and a five-year limited warranty.
Pick from Becca Dropped Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
