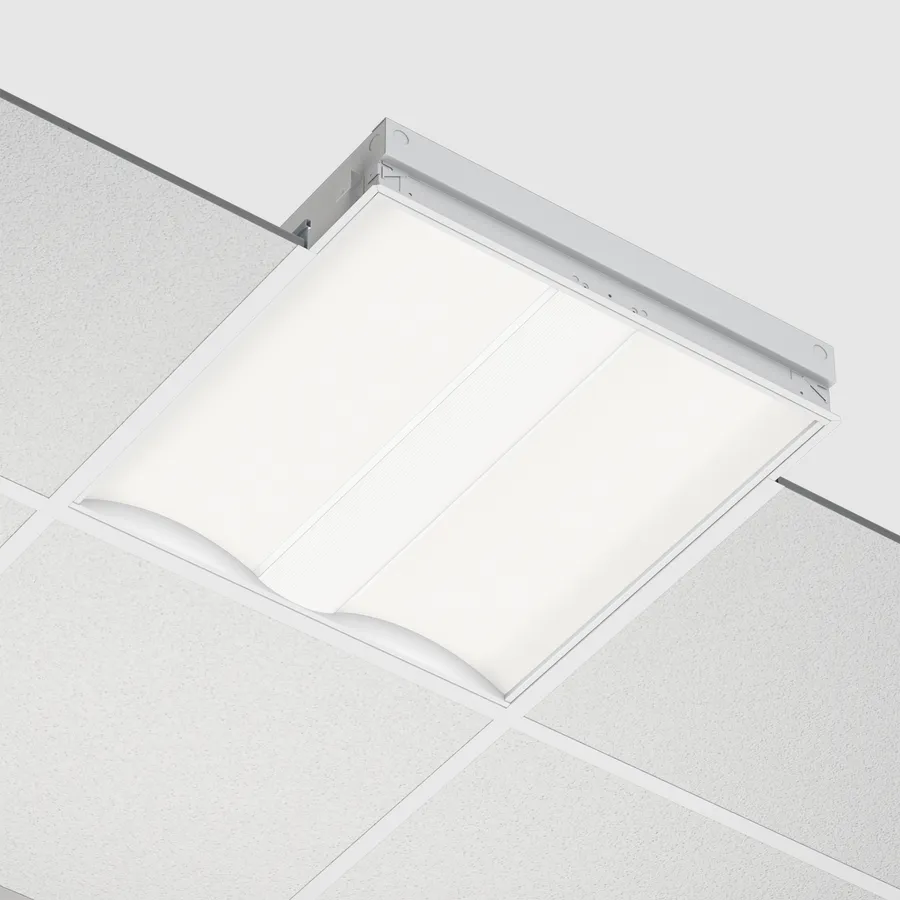

Architectural recessed LED troffer with a ribbed Median Textured Optic center element and side-lit shielding, in 1x4, 2x2, and 2x4 sizes from 2300 to 6800 delivered lumens, 80/90/95 CRI, static-white or full-spectrum.
| Wattage | 21–62 W |
|---|---|
| Luminous flux | 2300–6800 lm |
| Efficacy | 110 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥90 |
| Mounting | Recessed (grid / T-bar), Recessed (tegular), Recessed (drywall trim kit) |
| Dimensions | 1' x 4', 2' x 2', and 2' x 4' sizes; recessed into 9/16" or 15/16" T-bar / tegular grid, screw-slot T-bar, or drywall trim kit |
| Distribution | Direct |
| Finishes | Matte white, Matte black, Aluminum, Custom (RAL) |
| Dimming | 0-10V 100-1% standard; Lutron Hi-lume 1% Eco, eldoLED 1% ECOdrive & 0.1% SOLOdrive, ELV, TRIAC, DALI; PoE compatible; universal 120-277V input (347V with D1 driver) |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Vega is an efficient architectural LED troffer distinguished by a luminous shielding built around a ribbed Median Textured Optic (MTO) diffusing center element, paired with a High-Efficiency Lambertian Optic (HLO) that uses matte white reflectors across 0.075" acrylic shielding for up to 88% transmission and good source obscuration. It is offered in 1' x 4', 2' x 2', and 2' x 4' sizes with delivered output of 2300, 3200, and 4200 lm in the 1x4 and 2x2, and 4000, 5500, and 6800 lm in the 2x4, reaching up to 112 lm/W in static white. The static-white LED source is available in 2700/3000/3500/4000/5000K at a minimum 80+ CRI, with 90+ CRI (elevated R9) and 95+ CRI options, held to 3 SDCM; a full-spectrum static-white option enriches the cyan (480 nm) region for healthcare and circadian lighting strategies. All LEDs are LM-80 tested with L80 lumen maintenance greater than 60,000 hours. The factory-set 0-10V driver dims 100% to 1% on universal 120-277V input (347V with the D1 driver), with Lutron Hi-lume 1% Eco, eldoLED 1% ECOdrive and 0.1% SOLOdrive, ELV, TRIAC, and DALI driver options, plus PoE compatibility and an optional integral emergency battery. Recessed into exposed or concealed T-bar/tegular grid or drywall ceilings with a trim kit, Vega is IC rated, ETL listed to UL 1598 and CSA C22.2 No. 250.0 for indoor dry/damp locations, Chicago Plenum approved when specified, and carries a five-year limited warranty.
Pick from Vega's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
