Recessed modular accent family with a uniformly luminous Lambertian diffuser in square, rectangular, and round forms — flush or dropped up to 4" below the ceiling, 160 to 18,000 delivered lumens, 80/90 CRI, and a low-glare UGR<19 regressed option for grid or drywall ceilings.
| Luminous flux | 160–18000 lm |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥90 |
| Mounting | Recessed (grid / T-bar / tegular ceiling), Recessed (drywall / gypsum board) |
| Dimensions | Square & rectangular from 6"×6" to 4'×4' plus 20"×60" (10 sizes); round Ø12", Ø24", Ø36", Ø48"; flush or 1"–4" drop lens on base recessed; ~2 1/2"–4 5/8" housing depth |
| Distribution | Direct |
| Finishes | Matte white, White antimicrobial (Silverwerx), Custom (RAL) |
| Dimming | 0–10V 100–1% standard; DALI, Lutron Hi-lume 1% EcoSystem, eldoLED 1% ECOdrive & 0.1% SOLOdrive; integral or remote driver; BIOS SkyBlue circadian on regressed round; PoE compatible; 120–277V input (347V available) |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

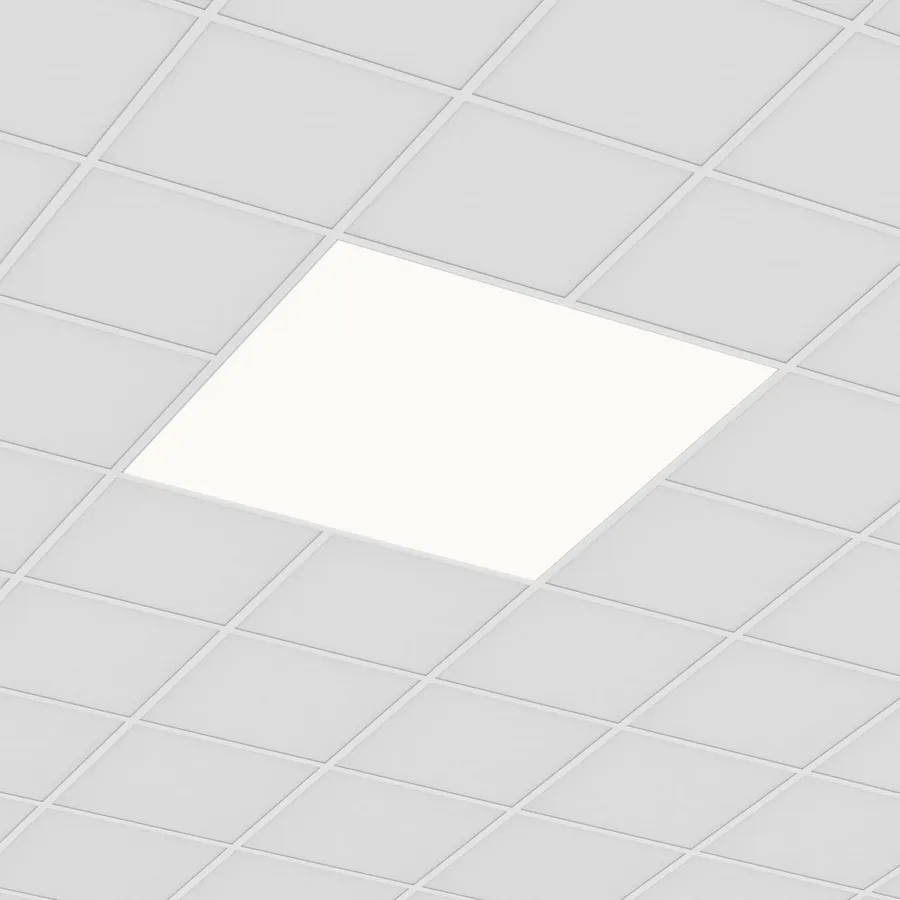

Pop Recessed is Lumenwerx's modular recessed accent luminaire, built around a uniformly luminous Uniform Lambertian Optic (ULO) diffuser — impact-modified white PMMA with up to 88% transmission — that sits flush with the ceiling or drops 1" to 4" below it as a soft luminous form. The diffuser and light engine form a fully enclosed unit secured by a twist-and-lock mechanism, so maintenance exposes no hardware. Base Pop Recessed comes as squares (1'×1', 2'×2', 4'×4') and rounds (Ø12", Ø24", Ø36", Ø48") in fixed 2,500 / 3,500 / 4,500 lm packages at up to 110 lm/W. The Pop Recessed Regressed variants extend the family to a low-glare UGR<19 aperture across ten square and rectangular sizes (6"×6" up to 4'×4', plus 20"×60") and four round sizes (Ø12"–Ø48"), spanning roughly 160 to 18,000 delivered lumens. Light source is a custom mid-flux LED array mounted directly to the spun-aluminum housing, offered in 2700/3000/3500/4000/5000K at a minimum 80 CRI, with a 90 CRI elevated-R9 option and 3 SDCM color consistency; a full-spectrum option enriches the 480 nm cyan region for healthcare and circadian strategies, and the regressed round adds BIOS Biological Static, Dynamic, and Tunable circadian drivers. LEDs are LM-80 tested to L80 beyond 60,000 hours. Drivers are dimmable 100–1% via 0–10V standard, with DALI, Lutron Hi-lume 1% EcoSystem, and eldoLED 1% ECOdrive / 0.1% SOLOdrive options, integral or remote, PoE compatible, on universal 120–277V input (347V available). A Pop Seal gasketed option makes the fixture suitable for healthcare (IP54 with the drywall mounting option), and IC-rated, NSF2, and Chicago Plenum ratings are available. Mounts into exposed or concealed T-bar/tegular grid or drywall/gypsum board ceilings, and the unlit Pop Recessed Acoustix PET-felt sound-absorption panels (and the acoustic Pop EchoCore) can be intermixed in the same ceiling. ETL listed to UL 1598 / CSA C22.2 No. 250.0 for indoor dry/damp locations, backed by a five-year limited warranty.
Pick from Pop Recessed's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
