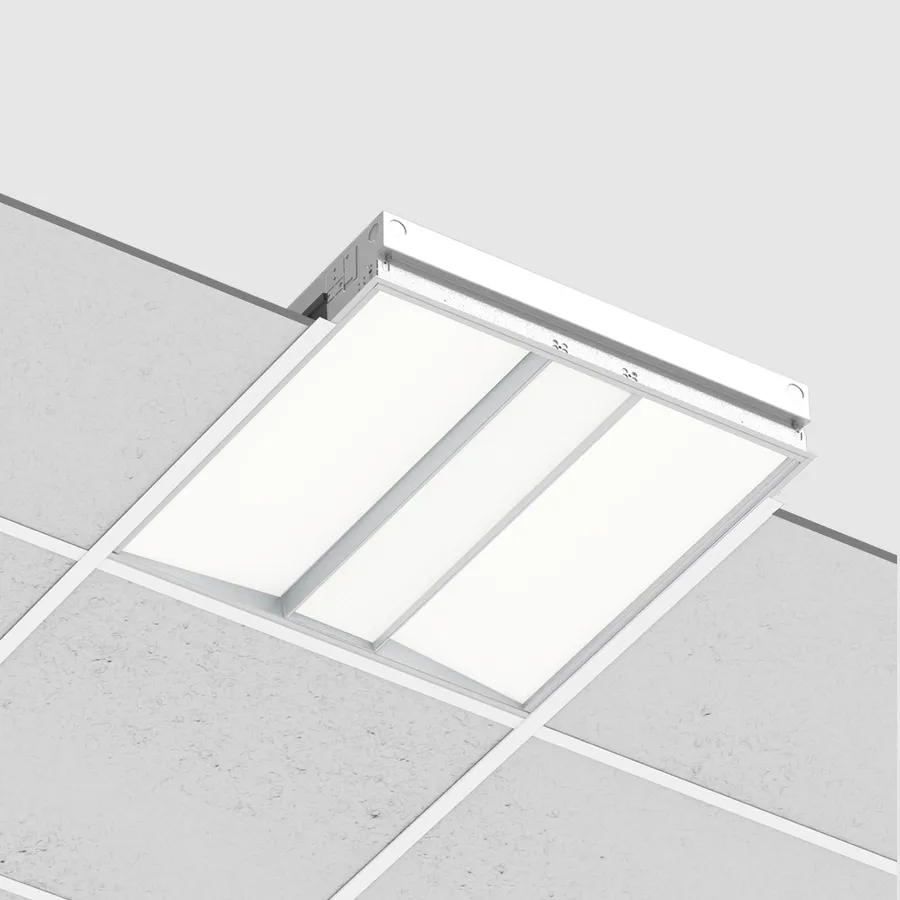

Architectural recessed LED troffer with a luminous central optic and side-lit shielding, in 1x4, 2x2, and 2x4 sizes from 2300 to 6800 delivered lumens, 80/90/95 CRI, static-white or full-spectrum, with Flat or Slope side diffusers.
| Wattage | 20–68 W |
|---|---|
| Luminous flux | 2300–6800 lm |
| Efficacy | 100 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥90 |
| Mounting | Recessed (grid / T-bar), Recessed (tegular), Recessed (drywall trim kit) |
| Dimensions | 1' x 4', 2' x 2', and 2' x 4' sizes; recessed into 9/16" or 15/16" T-bar / tegular grid, screw-slot T-bar, or drywall trim kit |
| Distribution | Direct |
| Finishes | Matte white, Matte black, Aluminum, Custom (RAL) |
| Dimming | 0-10V 100-1% standard; Lutron Hi-lume 1% Eco, eldoLED 1% ECOdrive & 0.1% SOLOdrive, ELV, TRIAC, DALI; PoE compatible; universal 120-277V input (347V with D1 driver) |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Nova is an efficient architectural LED troffer distinguished by a luminous central optical element that distributes gentle brightness from the sides of the fixture. It is offered in 1' x 4', 2' x 2', and 2' x 4' sizes with two center optics: the Precision Micro-Prism Optic (PMO), a catadioptric lens achieving a 45-degree glare cut-off and greater than 90% optical efficiency, or the High-Efficiency Lambertian Optic (HLO) using matte white reflectors across 0.075" acrylic shielding for up to 88% transmission. Nova is available with both Flat and Slope side diffusers. Delivered output runs 2300, 3200, and 4200 lm in the 1x4 and 2x2, and 4000, 5500, and 6800 lm in the 2x4, with static-white efficacy up to 115 lm/W. The static-white LED source is offered in 2700/3000/3500/4000/5000K at a minimum 80+ CRI, with 90+ CRI (elevated R9) and 95+ CRI options, held to 3 SDCM; a full-spectrum static-white option enriches the cyan (480 nm) region for healthcare and circadian applications. All LEDs are LM-80 tested with L80 lumen maintenance greater than 60,000 hours. The factory-set 0-10V driver dims 100% to 1% on universal 120-277V input (347V with the D1 driver), with Lutron Hi-lume 1% Eco, eldoLED 1% ECOdrive and 0.1% SOLOdrive, ELV, TRIAC, and DALI options, plus PoE compatibility and an optional integral emergency battery. Recessed into exposed or concealed T-bar/tegular grid or drywall ceilings with a trim kit, Nova is IC rated, ETL listed to UL 1598 and CSA C22.2 No. 250.0 for indoor dry/damp locations, Chicago Plenum approved when specified, and carries a five-year limited warranty.
Pick from Nova's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
