High Performance Recessed LED troffer collection in 1×1 through 2×4 sizes, published at 800–7,812 total lumens across six door styles plus an asymmetric wall-wash member, in 80/90 CRI at 3000–4000K.
| Luminous flux | 800–7812 lm |
|---|---|
| Color temperature (CCT) | 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed grid ceiling (T-bar), Drywall kit, Surface mount, Pendant |
| Dimensions | Recessed troffer in 1×1, 1×2, 1×4, 2×2, and 2×4 sizes; 4 in housing depth (HPW wall wash in 2, 4, and 8 ft lengths) |
| Distribution | Direct, Wall wash |
| Finishes | 96 Low Gloss White, Anti-microbial 96 Low Gloss (HPR-DM option) |
| Dimming | 100% to 10% standard, 1% available; 0–10V drivers (FC-10% / FC-1%), pre-qualified controls, and integrated daylight/occupancy sensor options |
| Rated environments | Damp location, IC-rated, Chicago Plenum option |
| Rated lifetime | 100,000 h |
| Warranty | 10 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

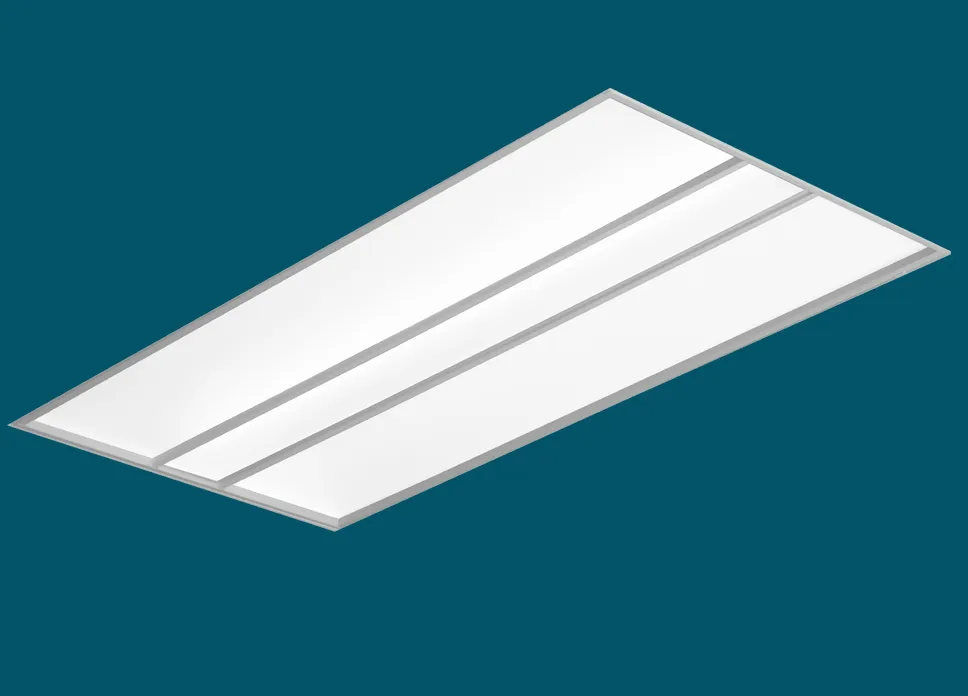

Finelite's HPR (High Performance Recessed) is a recessed LED troffer/panel collection built on a 4-inch-deep housing in 1×1, 1×2, 1×4, 2×2, and 2×4 sizes. Six door styles are published — Angled (A), Flat (F), Angled Narrow Rail (ANR), Curved Slotted (CS), Double Diffuse (DD), and Wave (WAV) — with Diffuse, Slotted, and Round center optics (DCO/SCO/RCO), alongside the HPW asymmetric recessed wall wash offered in 2, 4, and 8 ft lengths. Static-white output is offered in Standard (S), Boosted Standard (B), High (H), and Very High (V) packages; brochure photometry (3500K, 80 CRI) publishes 800–7,812 total delivered lumens and 93–142 lm/W across the door and wall-wash styles. Color is 3000K, 3500K, or 4000K static white plus a two-source Tunable White option (2700K–6500K), each in 80+ or 90+ CRI. Dimming runs 100% to 10% standard with a 1% option, pre-qualified drivers/controls, and integrated daylight and occupancy sensors. Mounting covers recessed grid ceilings, a drywall kit, surface mount, and pendant (IC-rated), rated for damp locations with a Chicago Plenum option, and the collection is ETL-listed (UL 1598 / CSA C22.2 No. 250.0), RoHS compliant, BAA compliant, DLC qualified (2×4/2×2/1×4), Declare 2.0 verified, and carries a 10-year performance-based warranty (ships in 10 working days). Two sub-variants extend the line: HPR-DM (Dynamic Multifunction) is a 2×4 dual-mode 90-CRI luminaire pairing a low-lumen indirect ambient mode with a high-lumen task mode (up to 18,345 combined lumens all-on), with an anti-microbial finish option and a 5-year warranty; HPR-SL (Streamline) is a higher-efficacy successor (up to 155 lm/W) in 1×4/2×2/2×4, publishing 3,248–6,832 lumens at 23.1–46.7 W (3500K, 80 CRI) in S/B/H/V packages, with L90 maintenance at 60,000+ hours, Title 24 JA8 compliance, and a 10-year warranty.
Pick from HPR's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
