Industrial-truss linear pendant with regressed lens, delivering 350-1000 lm/ft direct plus optional 350-1000 lm/ft indirect at 2700-4000K, in 4-12 ft lengths; also offered surface and wall mounted.
| Wattage | 4.3–12.7 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 79 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, round/square J-box canopy), Surface, Wall |
| Dimensions | 3-1/4" W x 6" H truss profile; 4/6/8/12 ft nominal lengths + custom (1" increments); continuous rows available |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, chrome/gold plated) |
| Dimming | 0-10V dimming 1% standard; non-dim, Lutron EcoSystem 1%, and PoE (Igor node) options; Lutron Athena wireless node option; DALI/DMX via factory; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

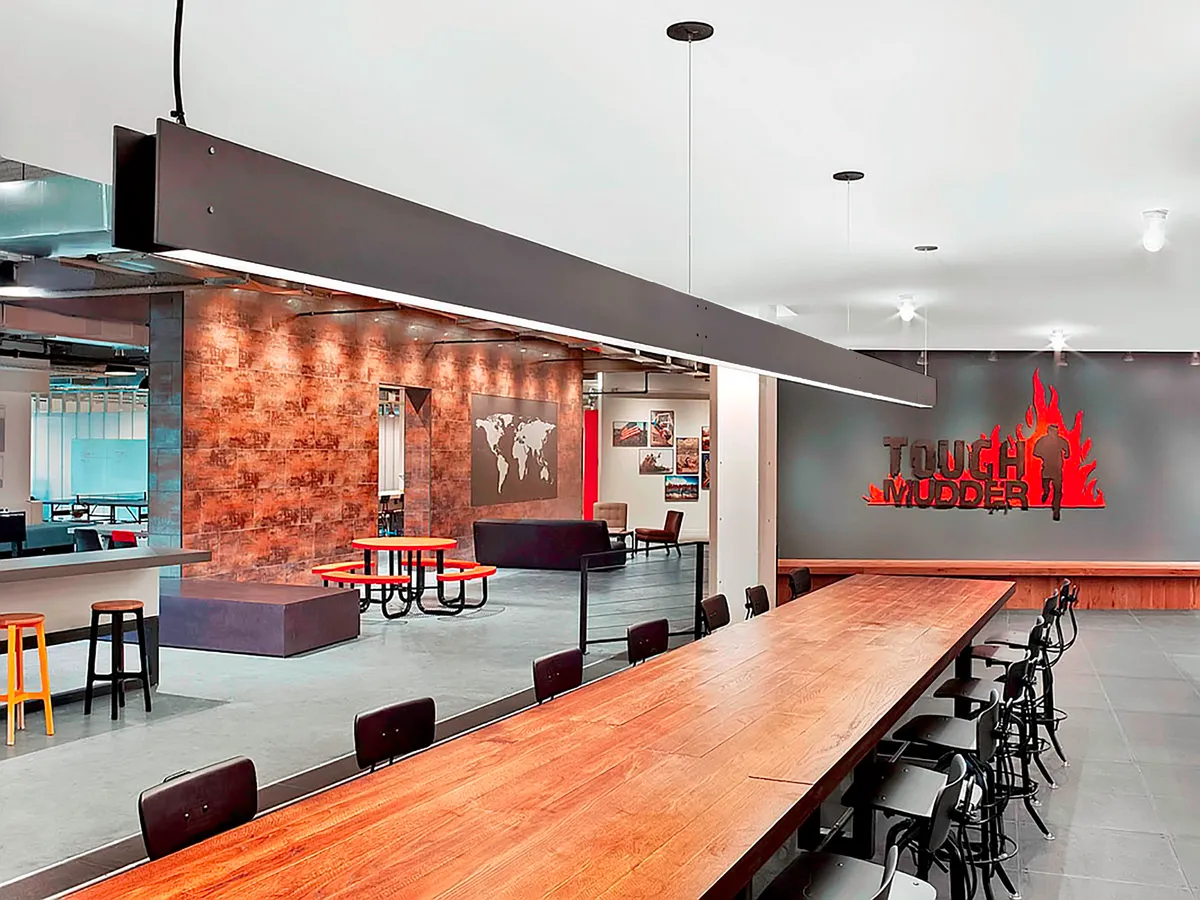

Truss Regress Lens is the standard-size profile in Picasso Lighting's Truss series, an open-framework linear pendant designed to recreate an industrial truss, with a slightly regressed soft-white acrylic direct lens that lifts out for maintenance. Side panels and end details are 1/4 in extruded aluminum in a 3-1/4 in wide by 6 in high profile, supplied in nominal 4, 6, 8, and 12 ft lengths (custom lengths in 1 in increments) with continuous rows available; panels attach with decorative thumb screws and need not be removed for installation or maintenance. Published output runs 350 to 1000 lm/ft direct (4.3 to 12.7 W/ft, 79-82 lm/W at 3000K) with independently selectable 350 to 1000 lm/ft indirect packages behind Lambertian, 120-degree batwing, flat 150-degree, or asymmetric indirect optics. Standard CCTs are 2700K-4000K with a tunable-white 2700-5000K option, in 80+ or 90+ CRI, driven at universal 110-277 VAC with 0-10V 1% dimming standard and non-dim, Lutron EcoSystem 1%, PoE (Igor node), and custom controls (DALI, DMX via factory) available. The pendant hangs on gripper-locking aircraft cable (48 in standard) from round or square canopies, and the Truss series is also available in surface and wall versions. Fixtures are IBEW-built in Moonachie, NJ (BABAA-compliant option), UL listed for dry and damp locations, rated 50,000 hours, and covered by a limited five-year warranty.
Pick from Truss Regress Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
