Compact industrial-truss linear pendant with regressed lens, delivering 350-1000 lm/ft direct plus optional 350-1000 lm/ft indirect at 2700-4000K, in 4-12 ft lengths.
| Wattage | 4.3–12.7 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 79 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, round/square J-box canopy), Pendant (stem) |
| Dimensions | 3-1/4" W x 4-3/4" H mini truss profile; 4/6/8/12 ft nominal lengths + custom (1" increments); continuous rows available |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, chrome/gold plated) |
| Dimming | 0-10V dimming 1% standard; non-dim and Lutron EcoSystem 1% options; Lutron Athena wireless node option; DALI/DMX/PoE via factory; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

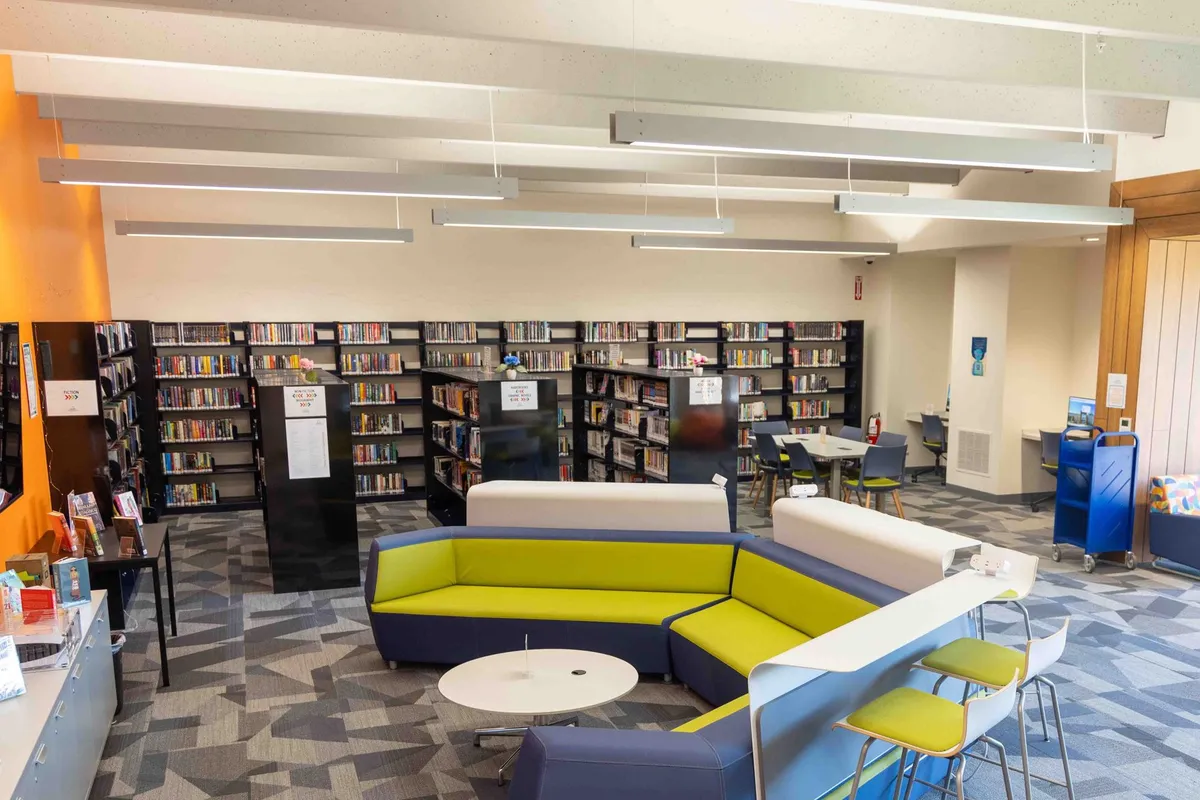

Truss Mini Regress Lens is the smaller of Picasso Lighting's two Truss profiles, an open-framework linear pendant styled after an industrial truss with a slightly regressed soft-white acrylic direct lens. Side panels and end details are 1/4 in extruded aluminum in a 3-1/4 in wide by 4-3/4 in high profile, supplied in nominal 4, 6, 8, and 12 ft lengths (custom lengths in 1 in increments) with continuous rows available; panels attach with decorative thumb screws and need not be removed for installation or maintenance. Published output runs 350 to 1000 lm/ft direct (4.3 to 12.7 W/ft, 79-82 lm/W at 3000K) with independently selectable 350 to 1000 lm/ft indirect packages behind Lambertian, 120-degree batwing, flat 150-degree, or asymmetric indirect optics. Standard CCTs are 2700K-4000K with a tunable-white 2700-5000K option, in 80+ or 90+ CRI, driven at universal 110-277 VAC with 0-10V 1% dimming standard and non-dim, Lutron EcoSystem 1%, and custom controls (DALI, DMX, PoE via factory) available. It hangs on gripper-locking aircraft cable (48 in standard) from round or square canopies or can be stem mounted, and the wider Truss series is also offered in surface and wall versions. Fixtures are IBEW-built in Moonachie, NJ (BABAA-compliant option), UL listed for dry and damp locations, rated 50,000 hours, and covered by a limited five-year warranty.
Pick from Truss Mini Regress Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
