2.5 in direct linear pendant with integral driver and 1/2 in dropped frosted-acrylic lens, 350-750 lm/ft at 4.3-9.48 W/ft, 2700-4000K plus tunable white, in 4-12 ft lengths.
| Wattage | 4.3–9.48 W/ft |
|---|---|
| Luminous flux | 350–750 lm/ft |
| Efficacy | 79 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, round/square J-box canopy), Pendant (stem) |
| Dimensions | Nominal 2-1/2" x 2-1/2" profile; 4/6/8/12 ft nominal lengths + custom (1" increments); continuous rows available |
| Distribution | Direct |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, chrome/gold plated) |
| Dimming | 0-10V dimming 1% standard; non-dim and Lutron EcoSystem 1% options; DALI/DMX/PoE via factory; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

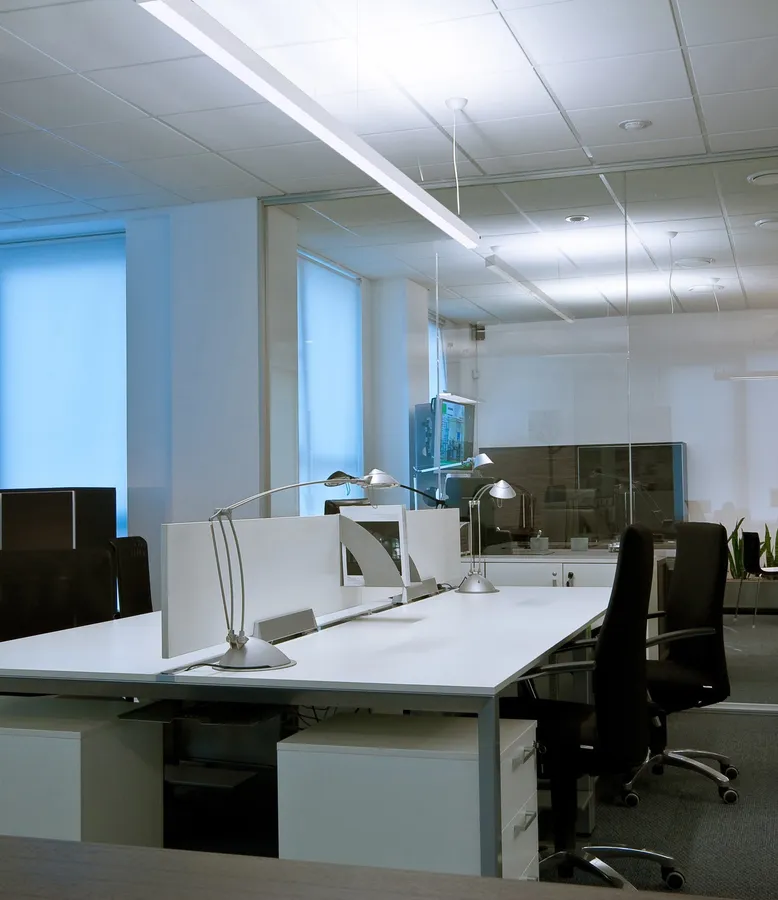

Sienna 2.5 Dropped Lens is the downlight-only, two-and-a-half-inch profile of Picasso's Sienna linear family, with an integral driver and an extruded frosted-acrylic lens dropped a half inch below the housing. Extruded-aluminum housings come in nominal 4, 6, 8, and 12 ft lengths (custom lengths in 1 in increments) with continuous rowing available and internal components in minimum 20-gauge die-formed steel. The performance table publishes 350 lm/ft at 4.3 W/ft (82 lm/W) through 750 lm/ft at 9.48 W/ft (79 lm/W) at 3000K, direct distribution only. CCT options are 2700K, 3000K, 3500K, and 4000K plus tunable white (2700-5000K), in 80+ or 90+ CRI. Cable mounting uses gripper-style locking with 48 in standard cables and round or square 5 in J-box canopies (slot-grid, T-grid, unistrut, and rod supports available); stem mounting is also offered, and the Sienna series comes in wall, surface, surface-grid, and recessed versions as well. Drivers are universal 110-277 VAC with 0-10V 1% dimming, non-dim, Lutron EcoSystem 1%, and custom control options. The 2.5 profile is part of Picasso's EZ install/ship program, supports BABAA-compliant ordering, is IBEW-manufactured in Moonachie, NJ, UL listed for dry and damp locations, rated 50,000 hours, and carries a limited five-year warranty.
Pick from Sienna 2.5 Dropped Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
