4-1/2 in wide linear pendant with regressed frosted lens, delivering 350-1000 lm/ft direct plus optional 350-1000 lm/ft indirect at 2700-4000K, in 4-8 ft lengths; also offered surface mounted.
| Luminous flux | 350–1000 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, round/square J-box canopy), Pendant (stem), Surface |
| Dimensions | 4-1/2" W x 4" H profile; 4/6/8 ft nominal lengths + custom (1" increments); continuous rows available |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, chrome/gold plated) |
| Dimming | 0-10V dimming 1% standard; non-dim and Lutron EcoSystem 1% options; Lutron Athena wireless node option; DALI/DMX/PoE via factory; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

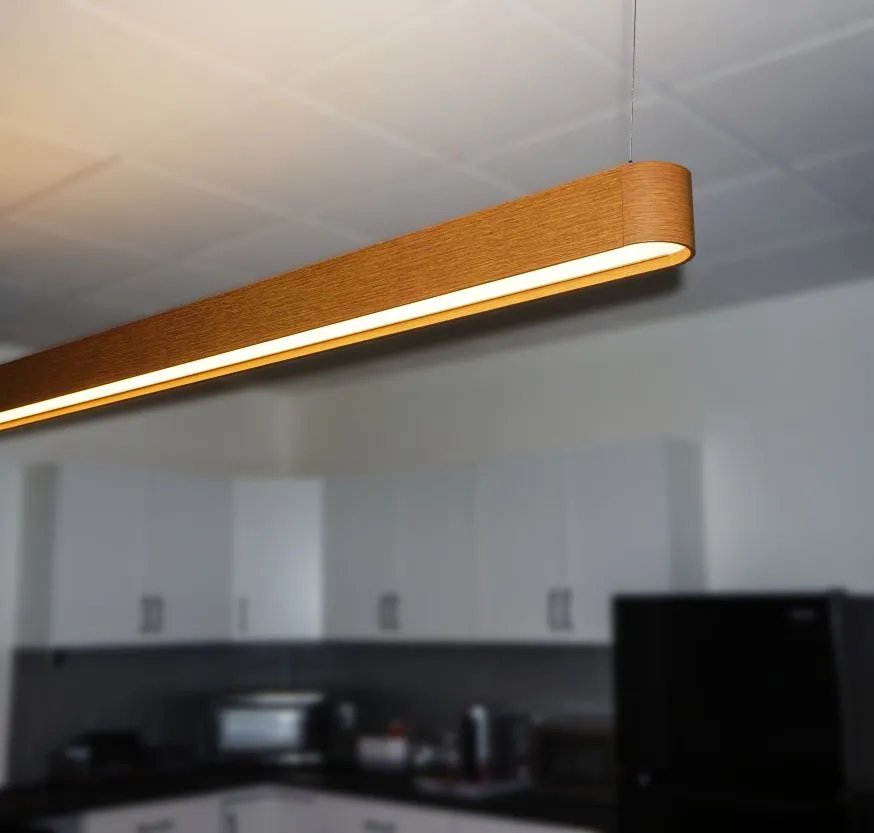

Muse Regress Lens is a linear cable pendant in Picasso Lighting's Muse series, built on a single extruded-aluminum profile 4-1/2 in wide by 4 in high with curved extruded-aluminum end caps. Housings come in nominal 4, 6, and 8 ft lengths (custom lengths in 1 in increments) and can be continuously rowed, with easy access to the driver and LED boards. The direct component uses a slide-in frosted acrylic lens with orderable packages of 350, 500, 750, or 1000 lm/ft, and independently selectable 350 to 1000 lm/ft indirect packages sit behind Lambertian, batwing (including 120-degree), flat 150-degree, or asymmetric optics; the performance table lists 5.23 W/ft direct at 350 lm/ft and 7.68 W/ft direct at 500 lm/ft (66-68 lm/W at 3000K), with 8.6 W/ft indirect at 750 lm/ft. Standard CCTs are 2700K-4000K with a tunable-white 2700-5000K option, in 80+ or 90+ CRI, driven at universal 110-277 VAC with 0-10V 1% dimming standard and non-dim, Lutron EcoSystem 1%, and custom controls (DALI, DMX, PoE via factory) available. It hangs on gripper-locking aircraft cable (48 in standard) from round or square canopies or can be stem mounted, and the Muse series is also available surface mounted, with a 12 in wide version under decorative pendants. Fixtures are IBEW-built in Moonachie, NJ, UL listed for dry and damp locations, rated 50,000 hours, and covered by a limited five-year warranty.
Pick from Muse Regress Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
