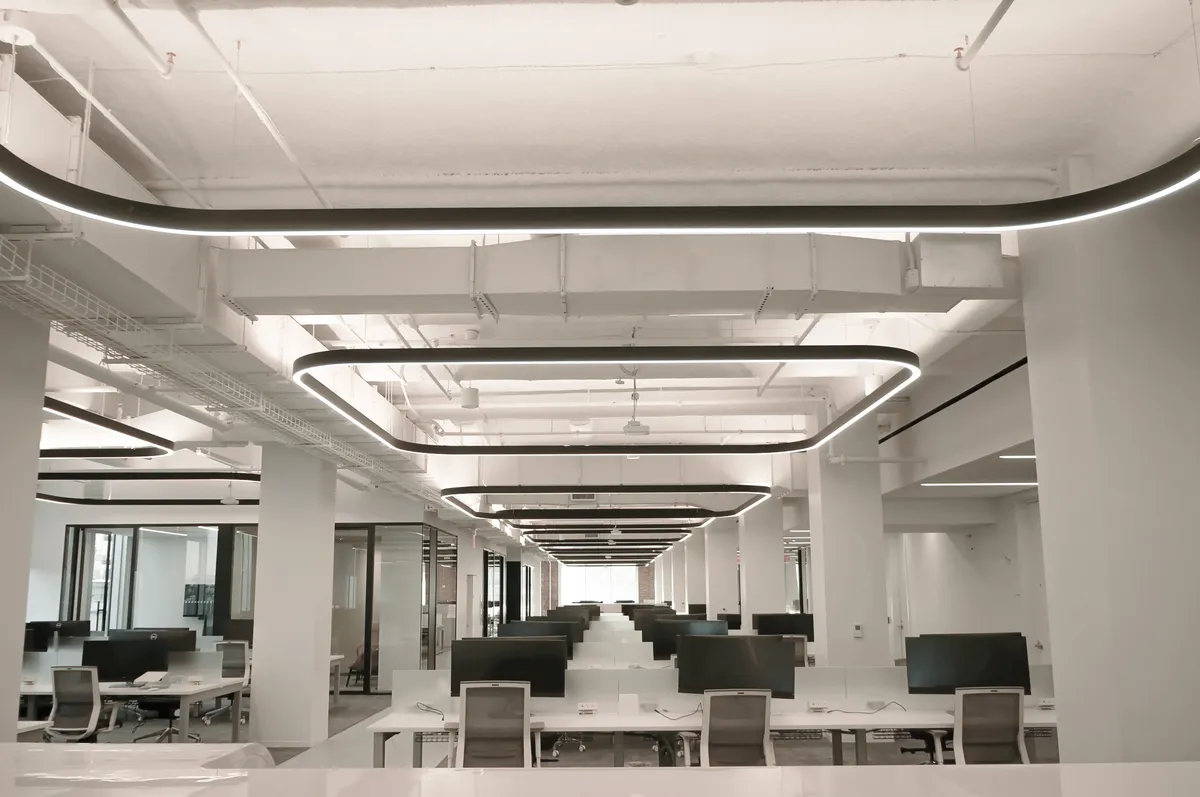

Higher-output 3"-wide curved pendant from Picasso's Curve Series — direct/indirect 350 to 1000 lm/ft at up to 115 lm/W, 2700-4000K plus tunable white, in factory-bent arcs, straights, and custom patterns.
| Wattage | 3–9.25 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 108 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable, J-box / slot grid / T-grid / Unistrut / threaded rod canopies), Pendant (stem), Surface |
| Dimensions | 3" W x 3-3/4" H profile; 30/45/60/90-degree arcs on 2/3/4 ft radii, 4 ft and 8 ft straights, custom patterns in 1" increments |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, chrome/gold plated) |
| Dimming | 0-10V 1% dimming standard (120/277V); non-dim; Lutron EcoSystem 1%; Lutron Athena wireless node, POE, DALI, DMX optional; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Curves-3 Flush Lens is the larger 3" x 3-3/4" profile of Picasso Lighting's Curve Series, delivering the family's higher lumen packages: the LED performance table publishes 350, 500, 750, and 1000 lm/ft at 3000K (3 to 9.25 W/ft direct, with matching indirect boards) at up to 115 lm/W; direct packages of 350/500/750 lm/ft and indirect up to 1000 lm/ft are orderable. Aluminum extrusions are factory-bent into 30, 45, 60, and 90-degree arcs on two, three, and four-foot radii, with 4 ft and 8 ft straight sections and custom patterns in 1-inch increments, shipping in 1-4 clamp-joined sections. The direct side uses a slightly regressed Opal White lift-and-shift acrylic lens, with a Matte Clear indirect optic option. Standard CCTs run 2700K-4000K in 80+ or 90+ CRI, with tunable white (2700-5000K) and warm dim available and LED life rated at 50,000 hours. Universal-voltage 110-277 VAC drivers include 0-10V 1% dimming standard, with non-dim, Lutron EcoSystem 1%, Lutron Athena wireless nodes, two-circuit wiring, emergency battery backup, and POE/DALI/DMX options. Mounting is gripper-locking aircraft cable (48" standard) from round or square canopies with J-box, slot-grid, T-grid, Unistrut, and threaded-rod adapters, or stem; the series is also offered surface mounted and recessed. IBEW-manufactured in Moonachie, NJ (BABAA option), UL listed for dry and damp locations, five-year limited warranty.
Pick from Curves-3 Flush Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
