Minimalist 1-3/8" wide by 6" tall linear LED pendant with a regressed frosted lens, 350 or 500 lm/ft direct plus optional indirect, 2700-4000K, in 2-8 ft lengths and continuous rows.
| Wattage | 5.3–7.5 W/ft |
|---|---|
| Luminous flux | 350–500 lm/ft |
| Efficacy | 67 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (aircraft cable), Recessed, Surface, Wall |
| Dimensions | 1-3/8" W x 6" H profile; 2/3/4/6/8 ft nominal lengths + custom (1 in. increments), continuous rows available |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone powder coat, woodgrain, anodized, chrome/gold plating) |
| Dimming | 0-10V 1% dimming standard (120V or 277V); non-dim, Lutron EcoSystem 1%, Lutron Athena wireless node; DALI/DMX/PoE on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

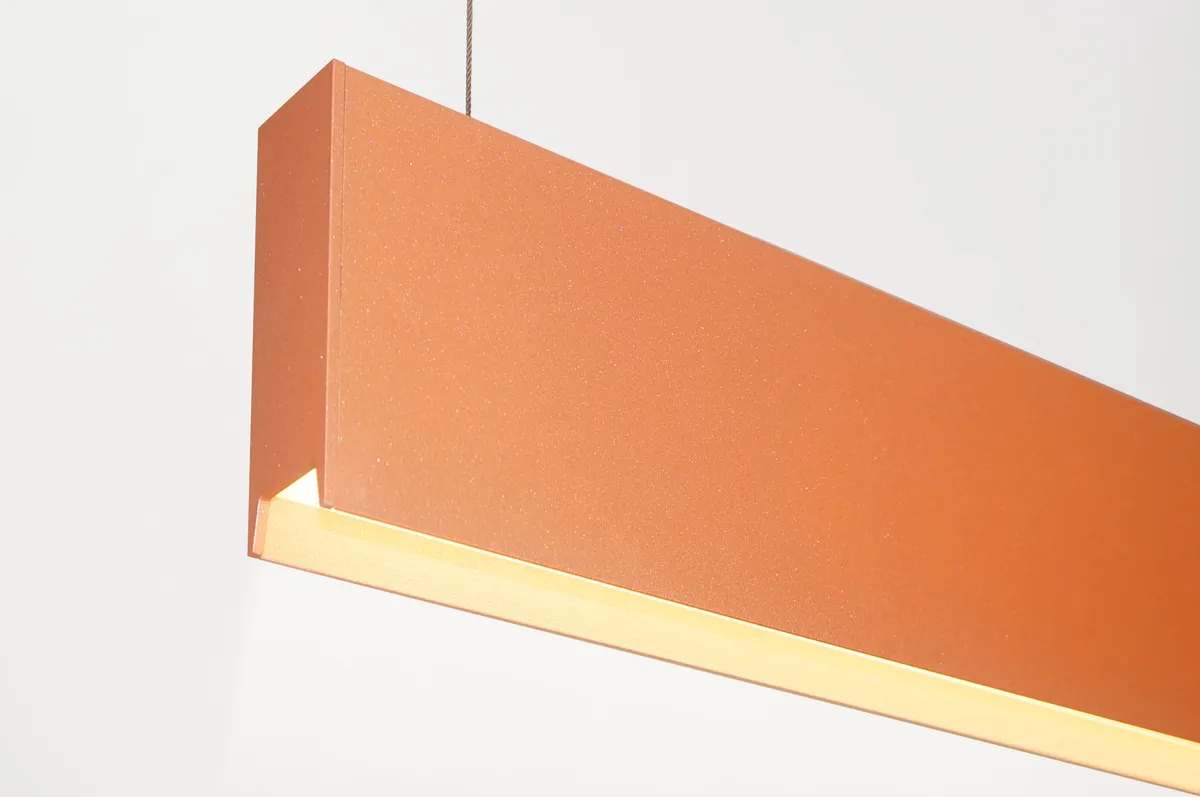

Blade 6 Regress Lens is the tallest member of Picasso Lighting's minimalist Blade series, an extruded-aluminum linear pendant with a 1-3/8" wide by 6" high profile and an extruded snap-in frosted acrylic lens regressed behind milled-aluminum end caps. Nominal lengths are 2, 3, 4, 6, and 8 ft plus custom sizes in 1-inch increments, and fixtures may be continuously rowed. Output is 350 or 500 lm/ft direct (5.3-7.5 W/ft, 67 lm/W at 3000K) with optional 350 or 500 lm/ft indirect (2.7-3.9 W/ft) through Lambertian, 120-degree batwing, 150-degree flat, or asymmetric uplight lenses; CCTs are 2700/3000/3500/4000K at 80+ or 90+ CRI, with tunable white (2700-5000K) and custom lumen tuning offered. Drivers are universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and Lutron Athena wireless-node options are published, with DALI/DMX/PoE and emergency battery-backup drivers available. Aircraft-cable mounting uses gripper-style locking on standard 4 ft cables to a round or square J-box canopy, and the Blade series is also offered in Recessed, Surface, and Wall versions. Fixtures are IBEW manufactured and assembled in the USA, UL listed for dry and damp locations, with 50,000-hour rated LED life and a five-year limited warranty.
Pick from Blade 6 Regress Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
Picasso Lighting · Pendant
