Cable-suspended decorative ring pendant with 350-1000 lm/ft direct and optional 350-1000 lm/ft indirect output, 2700-4000K plus tunable white, in 3-6 ft nominal diameters.
| Wattage | 4.3–12.7 W/ft |
|---|---|
| Luminous flux | 350–1000 lm/ft |
| Efficacy | 79 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (cable, canopy to J-box) |
| Dimensions | 2-1/2" W x 3-3/4" H ring profile (3" W at top output); 3/4/5/6 ft nominal ring diameters (Canopy version limited to 5 ft by weight) |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, plated aluminum) |
| Dimming | 0-10V 1% dimming or non-dim (120/277 VAC); Lutron, Eldoled, DALI, DMX, PoE and custom controls on request; universal 110-277 VAC HPF drivers |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

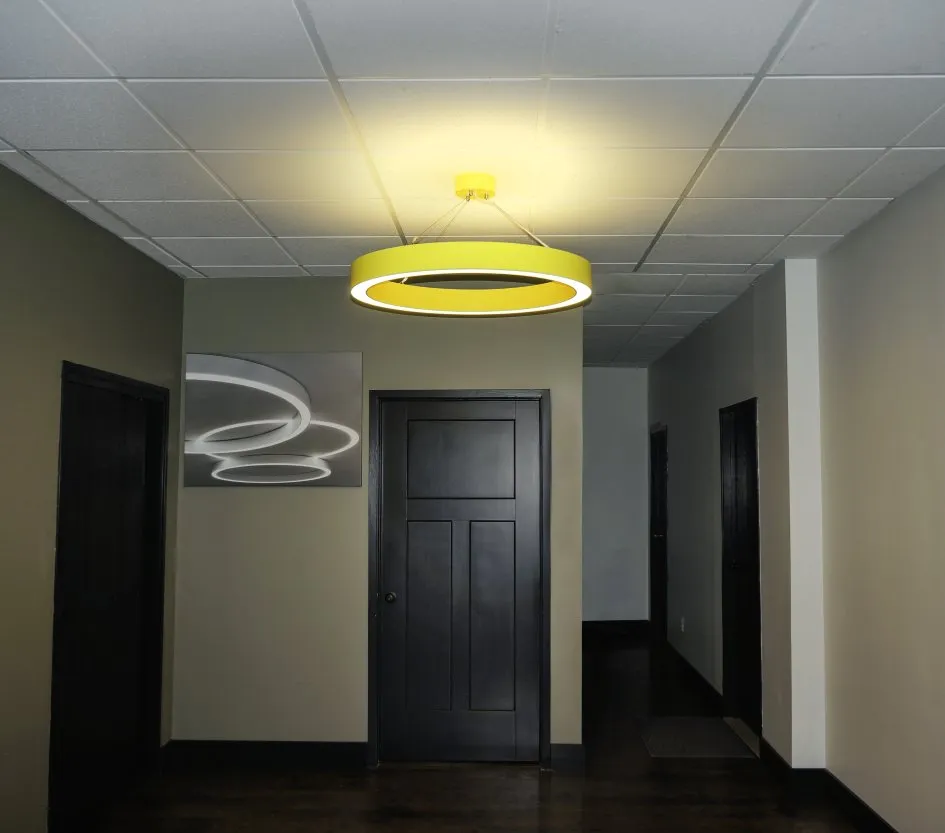

Anello Canopy Flush Lens is the canopy-hung decorative pendant in Picasso Lighting's Anello ring series, an extruded-aluminum ring in nominal 3, 4, 5 and 6 ft diameters shipped in 2-4 clamp-locked sections with easy driver and LED-board access; the overview notes the Canopy version is limited to 5 ft diameter because of weight. It uses the 2-1/2" x 3-3/4" Anello profile (width becomes 3" at the top output) with a slightly regressed lay-in opal-white acrylic direct lens and matte-clear indirect optic. The LED performance table publishes 350, 500, 750 and 1,000 lm/ft direct at 4.3-12.7 W/ft direct (3.4-9.7 W/ft indirect), with independent indirect packages of 350-1,000 lm/ft, in 2700/3000/3500/4000K plus tunable white, 80+ or 90+ CRI, 3 SDCM LEDs and 50,000-hour rated LED life. Suspension is by cable with gripper-style field-adjustable locking (48" standard) from custom canopies mounting to a standard J-box, larger sizes using a reinforced canopy; the Anello series is also available in recessed and surface versions. High-power-factor universal 110-277 VAC drivers offer non-dim and 0-10V 1% dimming at 120 or 277 V plus custom controls, with two-circuit direct/indirect wiring, emergency battery-backup, inverter wiring, occupancy sensor and Lutron Athena wireless options. Finishes include standard white, black and silver powder coat with RAL/Pantone, wood, anodized and plated custom options plus selectable canopy and cord colors. Made in America, IBEW-assembled, UL listed for dry and damp locations, with a limited five-year warranty.
Pick from Anello Canopy Flush Lens's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
