OCL Architectural Lighting · Pendant
OCL's evenly illuminated architectural cylinder pendant with cast-aluminum end caps and a frosted acrylic diffuser, in 3"/5"/7" diameters and 12–96" lengths — delivering 730–19,800 delivered lumens, with tunable-white, RGBW, and optional performance COB downlight.
| Wattage | 6–144 W |
|---|---|
| Luminous flux | 730–19800 lm |
| Efficacy | 138 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Beam angle | 25° / 60° |
| Mounting | Pendant, 5.75" surface-mount canopy (P1CB, no downlight), Pendant, 8" surface-mount canopy (P1FH, with downlight), Pendant, 5" flat canopy with remote-driver enclosure (P1FJ) |
| Dimensions | Body dia 3" / 5" / 7"; lengths 12 / 24 / 36 / 48 / 60 / 72 / 96 in |
| Distribution | Direct/Indirect, Direct (optional COB downlight) |
| Finishes | White Textured (standard), Matte White, RAL / Pantone / custom |
| Dimming | 0-10V to 1% (DM1); dual 0-10V to 0.1% (DM8); DALI-2 Type 6 to 0.1% (DALI); DMX 512A/RDM to 0.1% (DMX); universal 120–277V; Nichia 757 body LEDs, Bridgelux COB downlight |
| Rated environments | Dry, Damp (optional ULD label) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

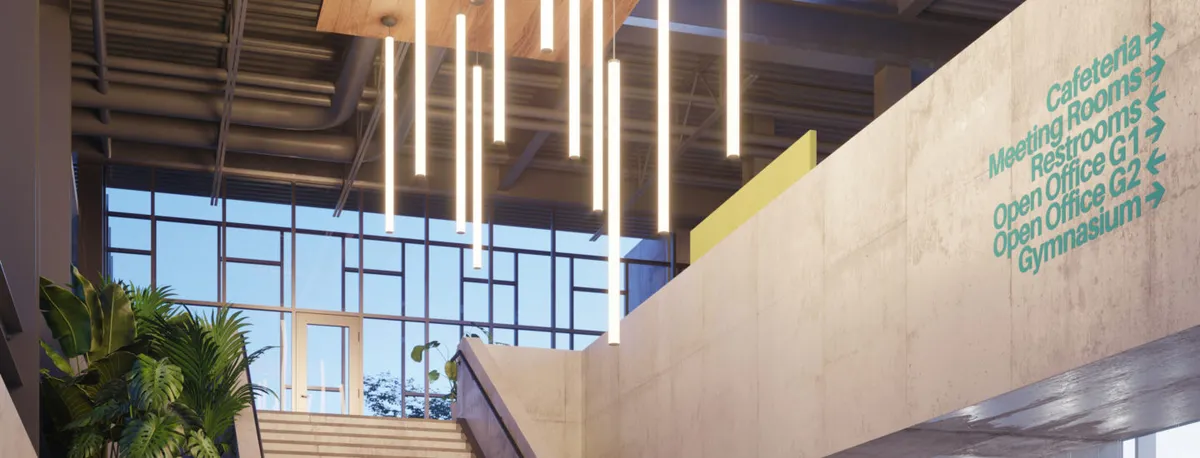

Tubie is OCL Architectural Lighting's evenly illuminated architectural cylinder pendant, built from a die-cast and extruded aluminum body with cast-aluminum end caps and a frosted white acrylic diffuser, fully enclosed to minimize dust and debris and clusterable into large-scale arrays. It is offered in three diameters — Tubie 3" (TB3), Tubie 5" (TB5) and Tubie 7" (TB7) — each in seven lengths (12, 24, 36, 48, 60, 72 and 96 in). The 3" and 5" bodies deliver 730/1240/1650/2200/2750/3300/4690 lm (LED1, 6–32 W) and 1100/2200/3300/4400/5500/6600/8800 lm (LED2, 9–61 W); the 7" body adds output tiers, delivering 830–8390 lm (LED1), 1100–14300 lm (LED2) and 2480–19800 lm (LED3, up to 144 W), so the family spans 730 to 19800 delivered lumens at up to 140 lm/W (test no. 20864.0). Delivered figures are shown for 80+ CRI at 3500K (multiply by 0.95 for 2700K, 0.97 for 3000K, 1.03 for 4000K; 90+ CRI uses a 0.85 multiplier). Beyond static white, the body is available as tunable white (TWH1, 2700K–6500K, 90+ CRI / R9 50+) and RGBW, and an optional performance Bridgelux COB downlight can be added in a narrow flood (25°, 1525 lm) or wide flood (60°, 1495 lm) on 3"/5" and a higher-output LED2 downlight (2540/2490 lm) on 7". OCL proprietary Nichia 757 diodes drive the body; the luminaire mounts to a 4x4" octagon or 4" round J-box as a pendant with a 5.75" surface-mount canopy (P1CB, static white without downlight), an 8" surface-mount canopy (P1FH, static white with downlight), or a 5" flat canopy with a remote-driver enclosure (P1FJ, static/tunable-white/RGBW). Controls include 0-10V dimming to 1% (DM1), dual 0-10V to 0.1% (DM8), DALI-2 Type 6 to 0.1% (DALI) and DMX 512A/RDM to 0.1% (DMX) on universal 120–277V input. The body and canopy ship in white textured paint (WTP) standard with RAL, Pantone and custom colors available, and the diffuser is matte white (MW) acrylic. Designed and fabricated in St. Louis, Missouri; ETL listed to UL 1598 for dry locations (optional damp label), Build America Buy America (BABA) eligible, RoHS compliant, and backed by a five-year limited warranty. (Per-diameter output tables are published on the separate Tubie 3, Tubie 5 and Tubie 7 spec sheets.)
Pick from Tubie's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
