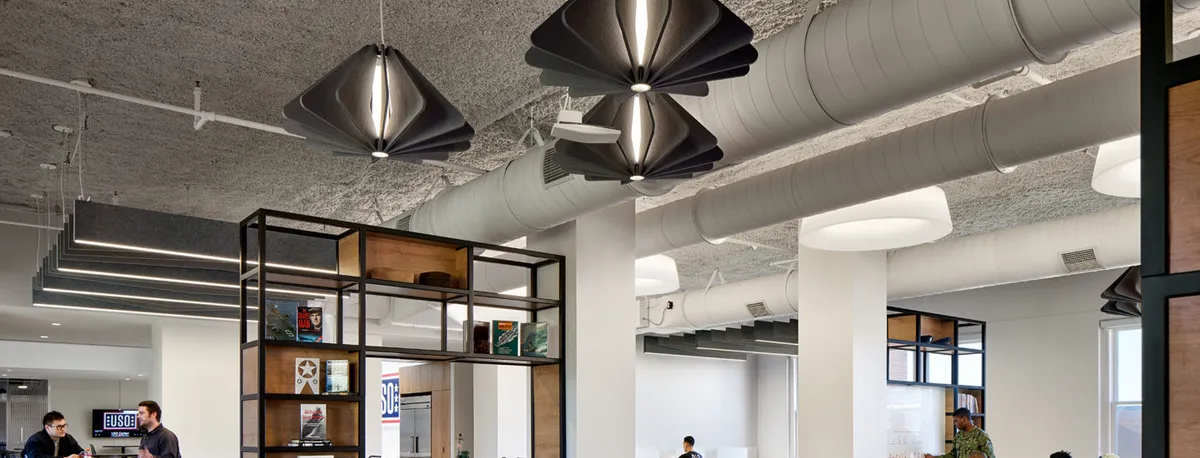

OCL Architectural Lighting · Pendant
Acoustic LED pendant from OCL pairing a 36 in glowing TUBIE body with an optional dual-circuit COB downlight, delivering 550–820 delivered lumens from the body and up to ~1,525 lumens from the downlight (92 lm/W) at 80+/90+ CRI across 2700–4000K, with a 9 mm sound-absorbing acoustic fin.
| Wattage | 6–15 W |
|---|---|
| Luminous flux | 550–1525 lm |
| Efficacy | 102 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Beam angle | 25° / 60° |
| Mounting | Pendant (suspended) |
| Dimensions | 36 in diameter; profiles: Angle (KW1), Cone (KW2), Ellipse (KW3) |
| Distribution | Direct/Indirect (glow body), Direct (COB downlight) |
| Finishes | White Textured Paint (body/canopy), Matte White, Pure Black, Charcoal, Slate, Shadow Gray, Pearl Ice, Classic White, Silver Gray, Natural Linen, Hazelwood, Cornflower Blue, Denim Blue, Brick Red, Midnight Blue, Deep Purple, Berry, Cherry Red, Carrot, Deepwater, Pineapple, Limestone, Emerald Green, Blush, Seafoam |
| Dimming | 0-10V (1%) standard; dual 0-10V, DALI-2, or DMX/RDM to 0.1% (requires P1FG flat-canopy hanging system) |
| Rated environments | Dry |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Kwyet is OCL's acoustic pendant, combining the company's TUBIE glowing-ring luminaire with a sound-absorbing 9 mm acoustic fin, offered at 36" diameter in three profiles — KW1 Angle, KW2 Cone, and KW3 Ellipse. The luminaire is dual-circuit: the frosted-acrylic body provides a soft glow and an optional Bridgelux V13 Gen 7 COB downlight adds a directed beam. Published delivered lumens (3500K, 80+ CRI) are 550 lm at 6 W (LED1 body) or 820 lm at 9 W (LED2 body); the tunable-white body (TWH1) delivers 550 lm at 6 W. The COB downlight (LED1) delivers 1,525 lm at 15 W in narrow flood (25°) or 1,495 lm at 15 W in wide flood (60°); measured efficacy is 92 lm/W on the LED2 ellipse body (test 20865.0). The body light source uses OCL's proprietary Nichia 757 LED arrays and is available at 2700K, 3000K, 3500K, and 4000K in 80+ CRI (also 90+ CRI, R9 > 50, apply a 0.85 lumen multiplier), plus tunable white (2700–5000K) and RGBW options (photometrics pending LM-79). Hanging systems are a 5.75" surface-mount canopy (P1FK, static white, no downlight), an 8" surface-mount canopy with downlight (P1FF), or a 5" flat canopy with remote driver enclosure (P1FG) — all mounting to a 4x4 octagon J-box and shipping with a field-adjustable 48", 100", or 144" cable length. Construction is extruded and die-cast aluminum with a spun-aluminum canopy and frosted extruded-acrylic diffuser; body and canopy finish is white textured paint with the acoustic fin available in more than 20 felt colors (minimum 50% post-consumer recycled PET, ASTM E-84 Class A, ASTM C423 acoustic test report). Dimming is 0-10V to 1% standard, with dual 0-10V, DALI-2, and DMX/RDM control to 0.1% optional (the 0.1% controls require the P1FG hanging system); BIOS SkyBlue circadian light engines are available. Running on 120–277V, Kwyet is ETL listed to UL 1598 for dry locations, contributes to WELL Building features L03/L04/L07/S04, is BABA compliant, and carries a 5-year warranty. Designed and fabricated in St. Louis, Missouri.
Pick from Kwyet's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
