OCL Architectural Lighting · Pendant
OCL's extruded-aluminum pendant with a 45° cutoff stepped bezel for visual comfort, in 8" and 13" bodies with narrow/wide flood optics — delivering 1,500–2,855 delivered lumens at up to 93 lm/W.
| Wattage | 16–37 W |
|---|---|
| Luminous flux | 1500–2855 lm |
| Efficacy | 77 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (surface-mount canopy, 4x4 octagon J-box), Pendant (flat canopy, OCL recessed J-box with integral driver), Pendant (emergency-driver surface canopy) |
| Dimensions | 8" or 13" tall bezel x 4–6" dia; 48" / 100" / 144" overall height (field adjustable) |
| Distribution | Direct |
| Finishes | Silver Metallic, Graphite, Steel Gray, Goldtastic, Brass Metallic, Bronze, Sky White, Matte White, Black, Black Textured, White Textured, RAL / Pantone / custom |
| Dimming | 0-10V dimming standard — DMO to 10%, DM1 to 1%; optional Lutron Hi-Lume EcoSystem 1% (DM3, LDE1) with soft-on/fade-to-black; BIOS SkyBlue circadian option; field-replaceable driver; universal 120–277V input |
| Rated environments | Dry, Damp (optional ULD label) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

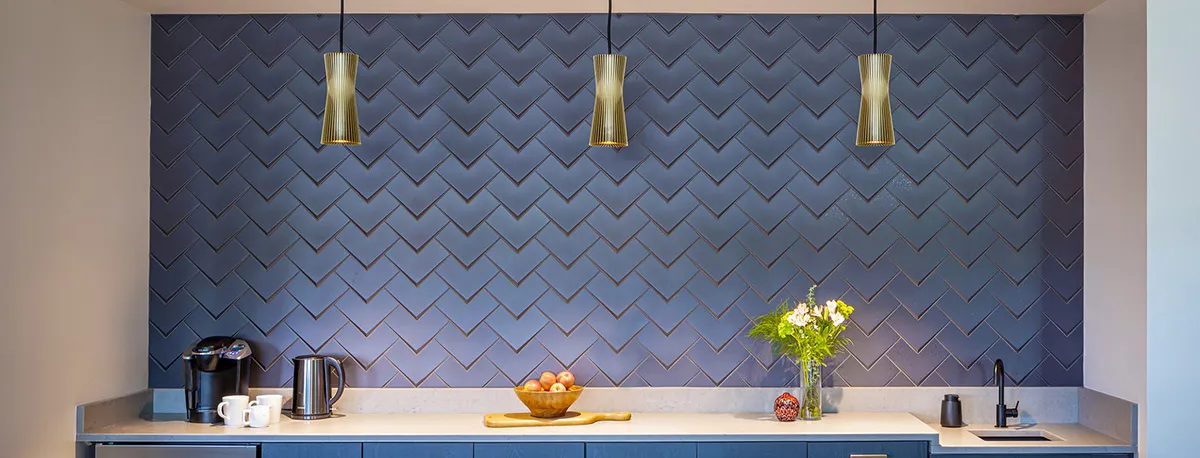

Fiori is OCL Architectural Lighting's extruded and machined aluminum pendant, built around a 45° cutoff stepped bezel that minimizes glare and increases visual comfort. Four bezel profiles (FR1–FR4) are offered in 8" and 13" bodies, with narrow flood (24°, NF) or wide flood (50°, WF) reflectors and numerous secondary lens options (hex cell louver, softening, spread and linear spread lenses). The fixture hangs from a premium braided-cloth power cord via a surface-mount canopy over a 4x4" octagon J-box (P1CB), a flat canopy over an OCL recessed integral-driver J-box (P1FC), or an emergency-driver surface canopy (P1BD), with three standard overall heights (48", 100", 144") field adjustable. At 3500K / 80+ CRI, the 8" body delivers 1,500 lm (LED1, 16 W); the 13" body delivers 1,500 lm (LED1, 16 W), 2,135 lm (LED2, 26 W) or 2,855 lm (LED3, 37 W), spanning 1,500 to 2,855 delivered lumens with efficacy published to 93 lm/W (multiply by 0.95 for 2700K, 0.97 for 3000K, 1.03 for 4000K; 90+ CRI lumens use a 0.85 multiplier). Color temperatures are 2700K, 3000K, 3500K and 4000K at 80+ CRI (R9 > 0) or 90+ CRI (R9 > 50). Fixtures run on universal 120–277V input with 0-10V dimming standard — DMO to 10%, DM1 to 1%, or Lutron Hi-Lume EcoSystem 1% (DM3) with soft-on/fade-to-black — and a BIOS SkyBlue circadian light engine is offered. Eleven standard powder-coat finishes are available (silver metallic, graphite, steel gray, goldtastic, brass metallic, bronze, sky white, matte white, black, black textured, white textured) with RAL, Pantone and custom finishes. Weights are 6–11 lb by size. ETL listed to UL 1598 for dry locations (optional damp label), Build America Buy America (BABA) compliant, RoHS compliant, and backed by a five-year limited warranty.
Pick from Fiori's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
