OCL Architectural Lighting · Pendant
Slim-profile 4.275 in drum luminaire from OCL in 14/18/24/36/48 in diameters, direct (CQ2) or direct/indirect (CQ3), with a fully luminous acrylic diffuser and 90+ CRI engine delivering 725–28,170 delivered lumens (up to 106 lm/W).
| Wattage | 10–304 W |
|---|---|
| Luminous flux | 725–28170 lm |
| Efficacy | 93 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Pendant (vertical aircraft cables), Pendant (3 angled aircraft cables), Surface / ceiling, Wall |
| Dimensions | Slim 4.275 in deep drum; 14, 18, 24, 36 and 48 in nominal diameters (14.0 / 18.0 / 22.0 / 34.0 / 46.0 in actual OD) |
| Distribution | Direct, Direct/Indirect |
| Finishes | Black Textured, White Textured, Silver Metallic, RAL / Pantone / custom |
| Dimming | 0-10V dimming to 1% standard (DM1); optional dual circuiting (DUC) for independent direct/indirect switching; field-replaceable driver; universal 120–277V input |
| Rated environments | Dry, Damp (optional ULD label) |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

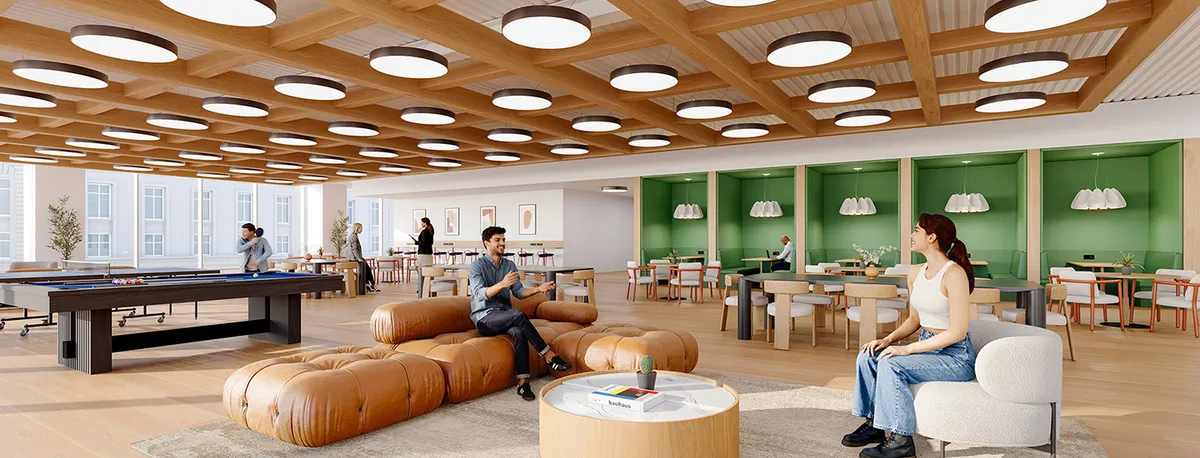

Cirque is OCL Architectural Lighting's slim-profile drum luminaire — a precision-rolled aluminum housing 4.275 in deep with a fully luminous acrylic diffuser and a proprietary 90+ CRI LED engine designed for smooth, even illumination across the entire diffuser surface. It is available in 14, 18, 24, 36 and 48 in diameters, in pendant, surface and wall-mount configurations, and in Direct (CQ2, all five sizes) or Direct/Indirect (CQ3, 24/36/48 in) illumination. Three lens options are offered — matte-white flush, 0.75 in drop, and 0.75 in regress. Delivered output for the Direct model runs 725/1225/1690 lm at 14 in, 1105/1875/2590 lm at 18 in, 1505/2545/3500 lm at 24 in, 4015/6775/9370 lm at 36 in, and 7915/13365/18450 lm at 48 in across the LED1/LED2/LED3 tiers; the Direct/Indirect model reaches 13005/20850/28170 lm at 48 in, with efficacy published to 106 lm/W. Color temperatures are 2700K, 3000K, 3500K and 4000K at 90+ CRI. Fixtures run on universal 120–277V input with 0-10V dimming to 1% standard (DM1), optional dual circuiting (DUC) for independent direct/indirect control, and field-replaceable driver components. Standard finishes are Black Textured, White Textured and Silver Metallic, with RAL, Pantone and custom finishes available. Reported lumen maintenance is L70 beyond 60,000 hours. ETL listed to UL1598 for indoor dry locations (optional damp label), BABA compliant, and backed by a five-year limited warranty.
Pick from Cirque's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
