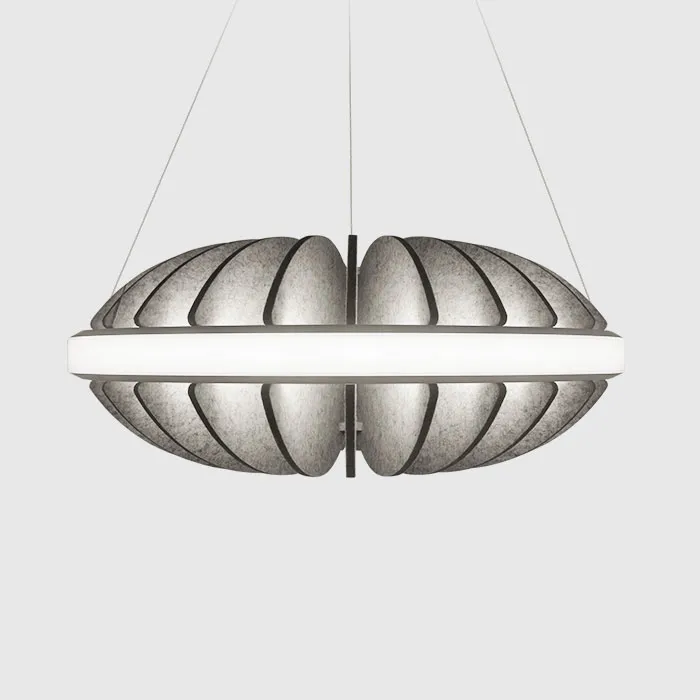

Sculptural acoustic pendant family — Bellis, Calla, Calla Shallow, and Dahlia — in 24", 36", and 48" diameters, delivering 2000 to 8000 lm at 90 CRI from a Uniform Lambertian optic while sound-absorbing recycled-felt blades cut room reverberation.
| Wattage | 21–181 W |
|---|---|
| Luminous flux | 2000–8000 lm |
| Efficacy | 44 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Pendant (aircraft cable), Pendant (power-over-aircraft cable) |
| Dimensions | Ø 24", 36", and 48" (Outward/Inward: Ø 26 1/16", 37 7/16", 49 13/16"); depth by shape — Calla Shallow 6 3/8", Calla 8 15/16", Bellis 9 11/16", Dahlia 10 7/8" |
| Distribution | Outward, Outward/Inward |
| Finishes | Matte white, Matte black, Aluminum, Custom (RAL) |
| Dimming | 0–10V 100–1% standard (NEMA 410 compliant); Lutron Hi-lume 1% EcoSystem, eldoLED 1% ECOdrive & 0.1% SOLOdrive 0–10V, DALI; PoE compatible; universal 120–277V input (347V with D1 driver only) |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Folia Acoustix is Lumenwerx's decorative acoustic pendant line, comprising four botanically inspired luminaires — Folia Bellis, Folia Calla, Folia Calla Shallow, and Folia Dahlia — each built from numerous layers of sound-absorbing felt made from recycled PET bottles. Unlit by day the multi-dimensional forms read as sculptural mobiles; lit at night they glow as celestial bodies. Offered in Ø 24", 36", and 48" sizes with Outward and Outward/Inward distributions, each fixture uses a Uniform Lambertian Optic (ULO) thermoformed from impact-modified white PMMA with up to 88% transmission. Delivered output runs from 2000 lm (Ø 24" low) to 8000 lm (Ø 48" high) in three lumen packages per size, with efficacy up to 95 lm/W on the Outward distribution. The custom mid-flux LED array is 90 CRI with elevated R9, held to 3 SDCM, in 2700/3000/3500/4000K, and Chromawerx Sola, Duo, and Quadro tunable/RGBW options are available on request. Dimmable 100–1% via 0–10V standard, with Lutron Hi-lume 1% EcoSystem, eldoLED 1% ECOdrive and 0.1% SOLOdrive, and DALI driver options, on universal 120–277V input (347V with the D1 driver) and PoE-compatible. The acoustic felt is 100% polyester with up to 50% recycled content, ASTM E-84 Class A rated, and offered in an extensive standard and premium color palette; exterior powder-coat finishes are matte white, matte black, aluminum, or custom RAL. Fixtures suspend by aircraft cable or power-over-aircraft cable with round canopy or remote driver boxes, in single- or multiple-canopy configurations. ETL listed to UL 1598 and CSA C22.2 No. 250.0 for indoor dry/damp locations, WELL-supporting, and backed by a five-year limited warranty.
Pick from Folia Acoustix's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
