Decorative 2" and 3" cylinder family in pendant, surface, and wall mountings — Diffuser, Glow Ring, and Sleeve styles with direct, indirect, and direct/indirect distributions, 80/90/95 CRI, and delivered output from 170 to 2145 lm.
| Wattage | 7–20 W |
|---|---|
| Luminous flux | 170–2145 lm |
| Efficacy | 107 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Pendant (power cord / stem / swivel stem), Surface, Wall |
| Dimensions | 2" and 3" diameter cylinders; 6", 8", 12" and custom heights up to 36" (1" increments) |
| Distribution | Direct, Indirect, Direct/Indirect |
| Finishes | Textured matte white, Textured matte black, Champagne, Custom (RAL) |
| Dimming | To 1% standard; integral 0–10V, ELV, TRIAC; remote adds Lutron Hi-lume 1% EcoSystem, DALI, eldoLED 1% ECOdrive & 0.1% SOLOdrive, DMX, Lutron DALI-2; Chromawerx SOLA dim-to-warm & DUO tunable white; PoE compatible; 120V/277V/UNV (347V with RD1 driver) |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

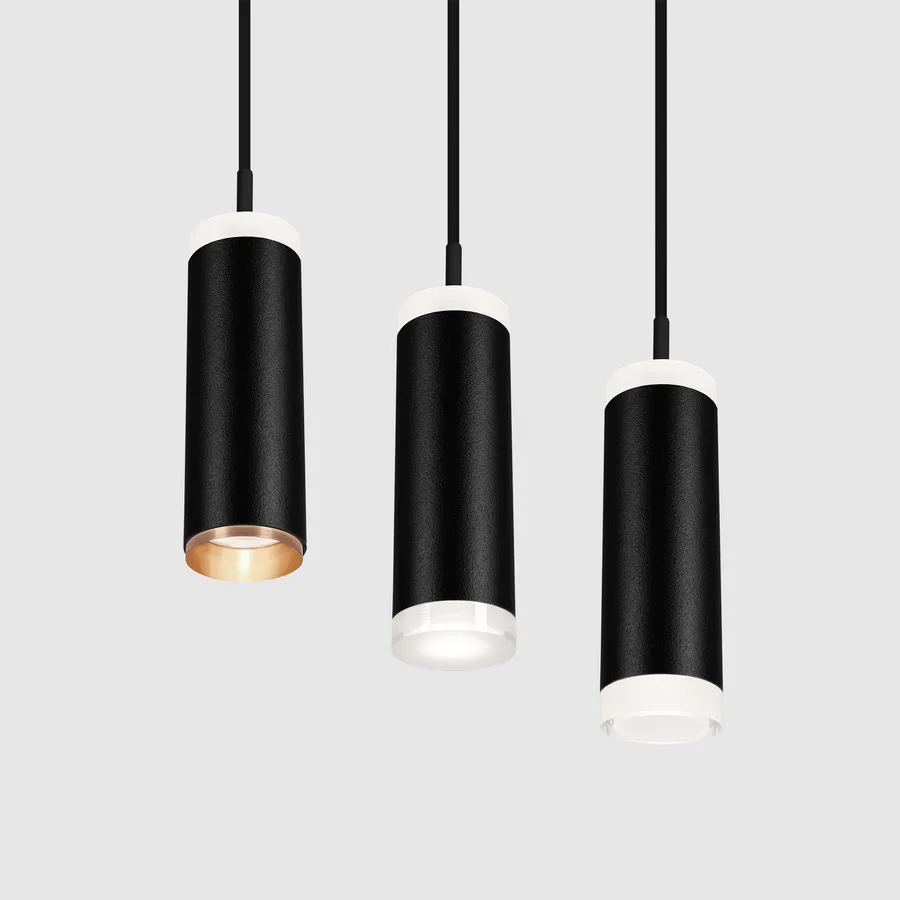

Flair Cylinder is Lumenwerx's series of pendant, surface, and wall-mounted decorative cylinders, built around refined proportions and minimalist versatility. The family comprises three styles: the Flair Diffuser (available in 2" or 3" diameters), the Flair Glow Ring (3" only), and the Flair Sleeve (3" only), each offered in 6", 8", and 12" heights plus custom heights up to 36" in 1" increments. Every style is configurable for direct, indirect, or direct/indirect distribution using fully frosted 1/4", fully frosted 3/4", partially frosted 3/4", or fully frosted flush acrylic diffusers. Delivered output ranges from roughly 170 lm on a 2" indirect configuration to 2145 lm on a 3" Sleeve direct configuration; the 3" Diffuser spans 10/14/20 W direct packages (up to ~1383 lm) while the 2" Diffuser runs 7/10 W. The light source is a compact COB LED module in 2700K, 3000K, 3500K, and 4000K with a choice of 80, 90, or 95 CRI (elevated R9 at 90 CRI and above, 2 SDCM), TM-30 Rf 90+/Rg 100, plus a Full Spectrum option and Chromawerx SOLA dim-to-warm (3500K–2200K) and DUO tunable white (6500K–2700K) circadian channels. LEDs are tested to IESNA LM-80 with L80 lumen maintenance greater than 60,000 hours. Fixtures dim to 1% with integral 0–10V/ELV/TRIAC drivers or remote drivers adding Lutron Hi-lume 1% EcoSystem, DALI, eldoLED 1% ECOdrive and 0.1% SOLOdrive, DMX, and Lutron DALI-2; PoE-compatible and available with a remote emergency battery. Housing is die-cast and extruded aluminum finished in textured matte white, textured matte black, champagne, or a custom RAL color, suspended by PVC power cord, rigid stem, or swivel stem. ETL listed to UL 1598 and CSA C22.2 No. 250.0 for indoor dry/damp locations, with a five-year limited warranty.
Pick from Flair Cylinder's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
