Decorative LED pendant family in round, oval, rectangle, square, and multiple-round forms, from 1900 to 30000 delivered lumens, with a Uniform Lambertian Optic 50/50 direct/indirect distribution, 90+ CRI, and 2700–4000K static white.
| Wattage | 21–315 W |
|---|---|
| Luminous flux | 1900–30000 lm |
| Efficacy | 95 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Pendant (aircraft cable), Pendant (power-over-aircraft cable), Pendant (power cord) |
| Dimensions | Round Ø 24"–96", Oval 2 ft x 6 ft–4 ft x 12 ft, Rectangle 1 ft x 4 ft–4 ft x 8 ft, Square 12"–96", plus 2- and 3-ring Multiple Round stacks; 2 1/8" x 1 15/16" extruded profile section |
| Distribution | Direct/Indirect |
| Finishes | Matte white, Aluminum, Matte black, Custom (specify RAL) |
| Dimming | 0–10V 100–1% standard; Lutron Hi-Lume 1% Eco, eldoLED 1% ECOdrive & 0.1% SOLOdrive, DALI; PoE compatible; universal 120–277V input (347V on select configurations) |
| Rated environments | Dry, Damp location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

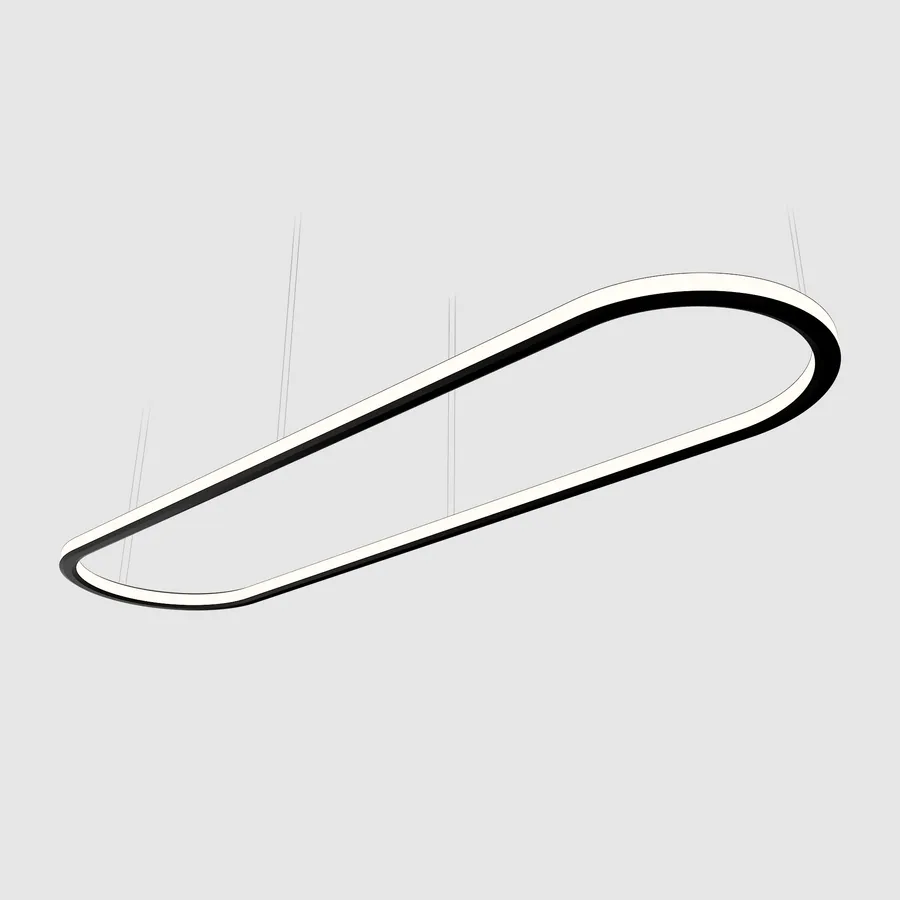

Elia is Lumenwerx's decorative pendant platform, an LED array running around the inside of a rolled-and-welded aluminum housing that illuminates 50% inward and 50% outward through a Uniform Lambertian Optic (ULO) for an even, luminous glow. It is offered in five geometries: Round (2 ft to 8 ft diameter, six sizes), Oval (2 ft x 6 ft to 4 ft x 12 ft, eight sizes), Rectangle (1 ft x 4 ft to 4 ft x 8 ft, six sizes), Square (12 in to 96 in, six sizes), and Multiple Round, which stacks two or three Elia Round rings (2 ft to 5 ft) on different planes under a shared canopy. Delivered output spans 1900 lm on the smallest square up to 30000 lm on the largest multiple-round arrangement, in Low/Medium/High packages per size, with efficacy published to 90 lm/W. The ULO is thermoformed impact-modified white PMMA with up to 88% transmission and a 95% reflective matte-white interior; the co-extruded satine polycarbonate lens delivers a spacing criteria of 1.6. Elia ships in 2700/3000/3500/4000K static white at 90+ CRI with elevated R9, held to 3 SDCM, and is also available with Chromawerx SOLA, DUO (tunable white), and QUADRO (RGBW). Factory-set adjustable-output drivers accept universal 120–277V (347V on select configurations) and dim 100–1% on 0–10V, with Lutron Hi-Lume 1% EcoSystem, eldoLED 1% ECOdrive and 0.1% SOLOdrive, and DALI options, plus PoE compatibility. Pendants suspend on aircraft cable, power-over-aircraft cable, or power cord, with single or multiple canopies and integrated or remote driver boxes. ETL listed for indoor dry/damp locations to UL 1598 and CSA C22.2 No. 250.0, backed by a five-year limited warranty.
Pick from Elia's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
