Chris Poehlmann drum pendant with a 24.5" Cream Shade fabric diffuser and an integrated LED delivering 2,600 delivered lumens at 20 W, 3000K, 0–10V dimming.
| Wattage | 20 W |
|---|---|
| Luminous flux | 2600 lm |
| Efficacy | 130 lm/W |
| Color temperature (CCT) | 3000K |
| CRI | ≥80 |
| Mounting | Triple rods, Aircraft cable |
| Dimensions | 12" body H × 24.5" dia; 32.5" overall height |
| Finishes | Architectural Bronze Powder Coat, Matte Black, Matte White |
| Dimming | 0–10V |
| Rated environments | Dry location |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

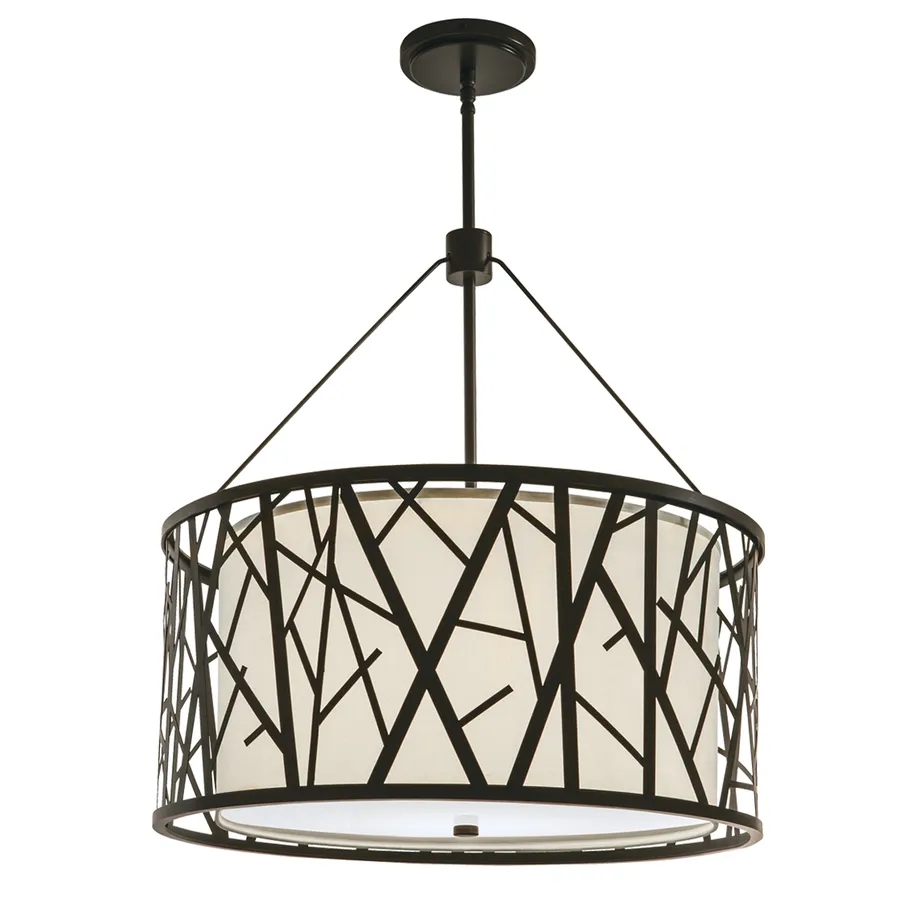

Woods Drum Pendant (WDP) is a fabric-shade pendant from ILEX Architectural Lighting, designed by Chris Poehlmann: a 24.5"-diameter Cream Shade drum with an integrated LED as standard. The LED delivers 2,600 delivered lumens at 20 W and 3000K with 0–10V dimming. It measures 12" body height × 24.5" wide with a 32.5" overall height, and mounts on Triple Rods (standard) or Aircraft Cable. Finishes are Architectural Bronze Powder Coat, Matte Black and Matte White, with custom powder-coat finishes available. Woods is Dry Location rated, UL/ETL listed, and made in ILEX's Michigan facility.
Pick from Woods Drum Pendant's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
