Folio's large-scale ring luminaire in aluminium and methacrylate, offered suspended or ceiling-mounted with diameters from Ø1000 to Ø2000 mm.
| Wattage | 63–227 W |
|---|---|
| Luminous flux | 1694–8250 lm |
| Efficacy | 36 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Suspended, Ceiling |
| Dimensions | Ø1000–Ø2000 mm (50–200 mm profile width) |
| Distribution | Direct |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

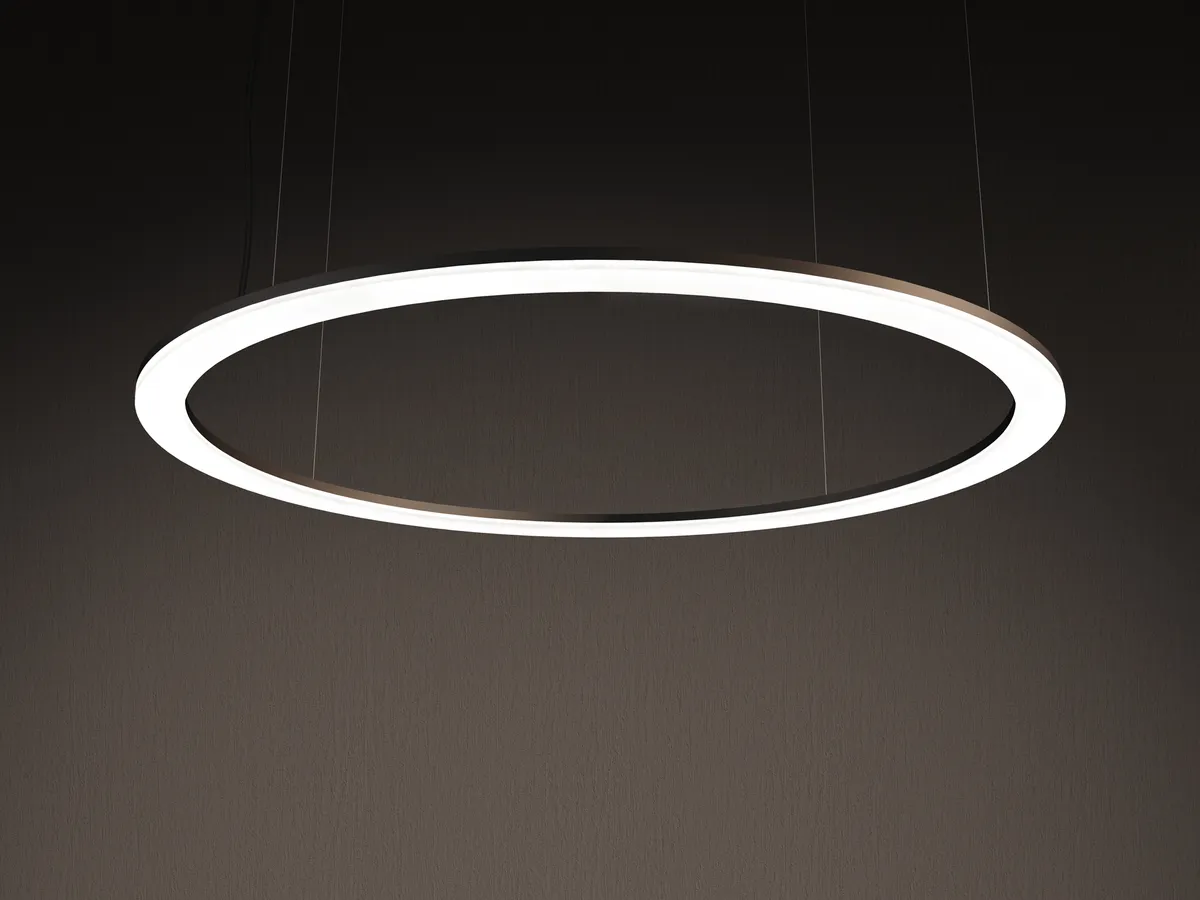

Eclipse is a circular ring luminaire made of aluminium and methacrylate, available as a suspended or ceiling fixture. Profile widths range from 50 to 200 mm across ring diameters of Ø1000, Ø1250, Ø1500 and Ø2000 mm. Nichia LEDs deliver CRI Ra min. 90 (R9 min. 50) at standard color temperatures of 2700K, 3000K, 3500K, 4000K and 5700K, with luminous flux from 1694 lm up to 8250 lm. It is rated IP40, runs on a 24 V DC input, and has an L90 rated life above 60,000 hours.
Pick from Eclipse's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
Picasso Lighting · Pendant

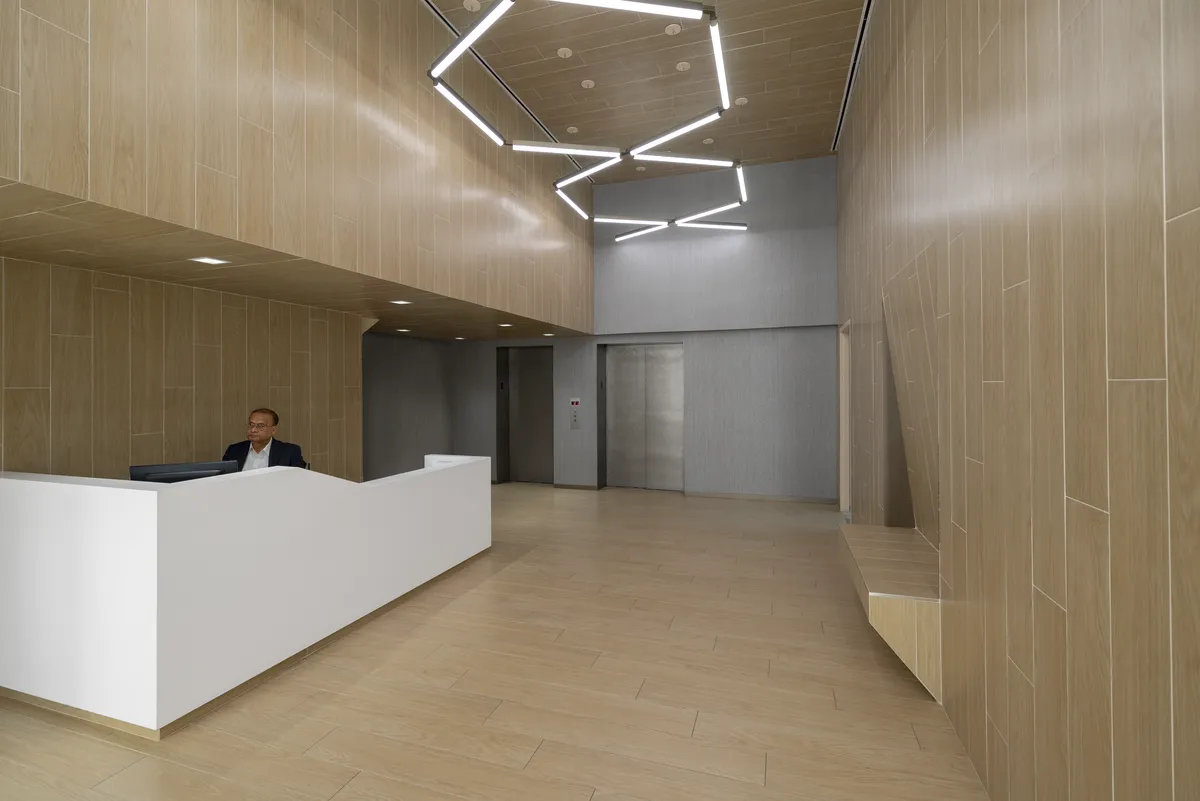

Honeycomb-pattern linear LED pendant with joinable single-to-quadruple connectors, 350 to 1000 lm/ft direct, 2700-4000K, 3-8 ft sections with opal round or square double-thick lenses.
Picasso Lighting · Pendant

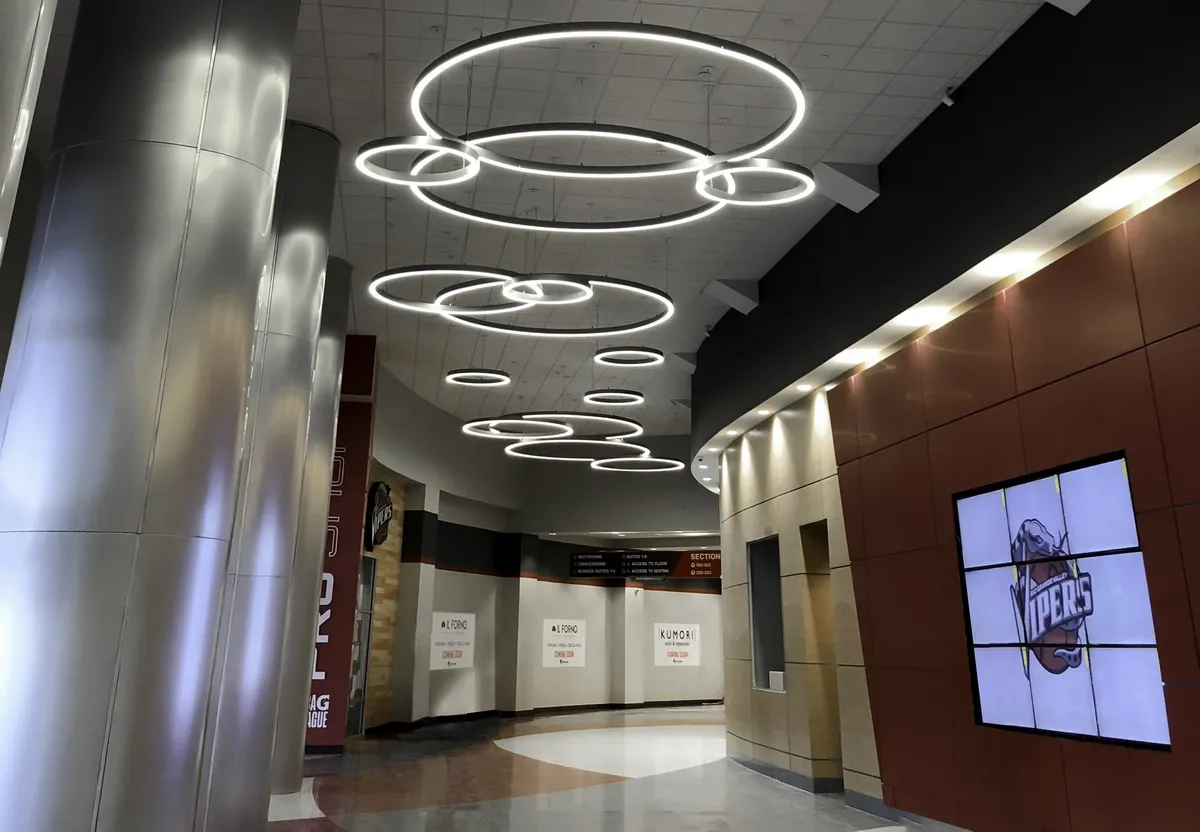

Slimmer 2-1/2" profile Anello ring in pendant and surface versions with 350-500 lm/ft direct output (indirect packages to 1000 lm/ft on the pendant), 2700-4000K plus tunable white, in 3-6 ft nominal diameters.
Picasso Lighting · Pendant

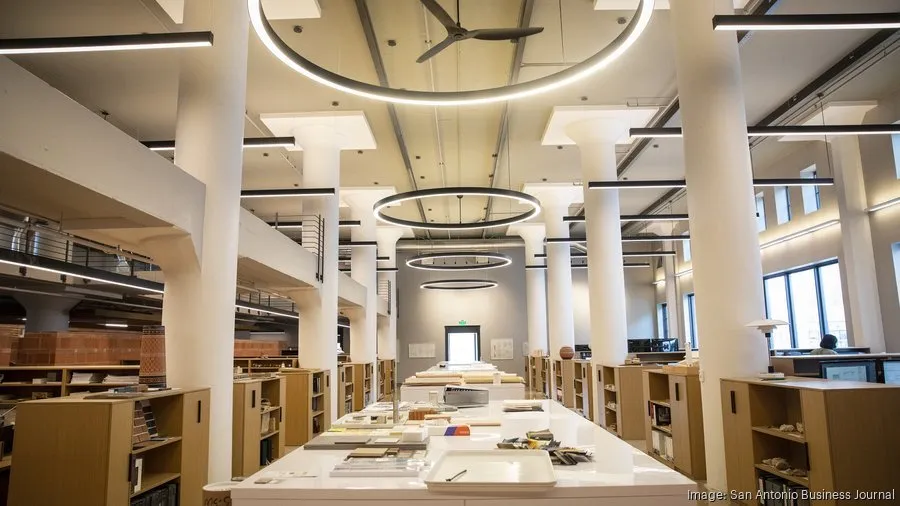

High-output 3" profile Anello ring pendant with 350-1000 lm/ft direct and optional 350-1000 lm/ft indirect output, 2700-4000K plus tunable white, in 3-6 ft nominal diameters with custom sizes to date as large as 27 ft.
