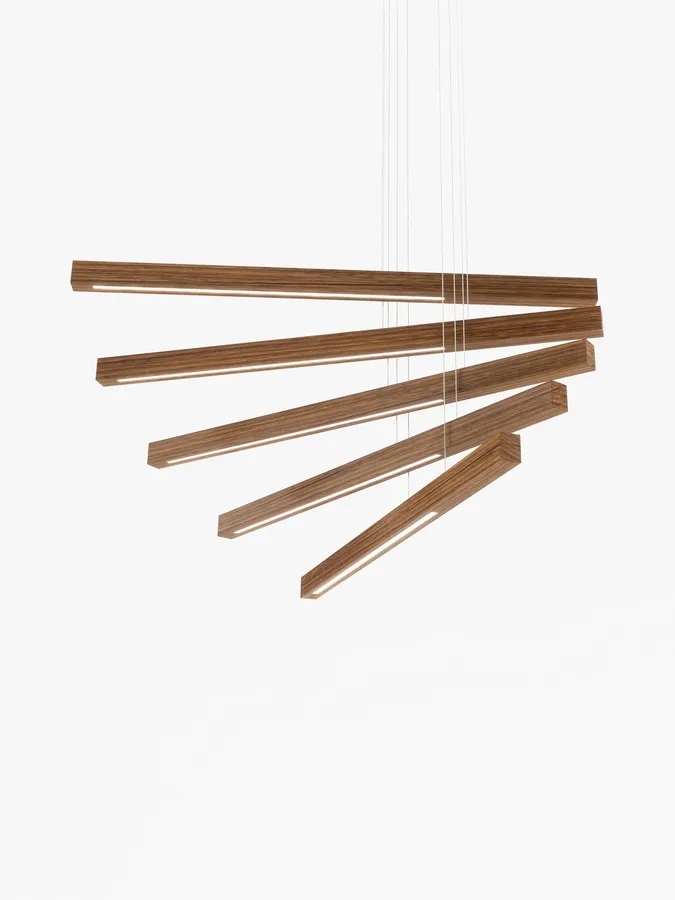

Parametric radial statement pendant from aaline's Linear Embedded series — a mass-customizable chandelier of FSC hardwood or FENIX NTM stems delivering 3,024–9,072 lm at 105 lm/W in warm 2700K–4000K white.
| Wattage | 28.8–86.4 W |
|---|---|
| Luminous flux | 3024–9072 lm |
| Efficacy | 105 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Suspended — adjustable cable (up to specified length), Power Over Cable add-on (remote driver), Junction Box Support add-on (powered canopy) |
| Dimensions | Parametric radial array: 3 or 5 stems (N); radial coverage 90° / 180° / 270° (D); stem length 2'–6' in 1' increments (L); fixture height 2'–4' in 1' increments (H); stem spacing 3" standard (Z). 6" of height reserved for canopy access. |
| Distribution | Direct, Indirect (3'+ stem lengths only), Direct + Indirect (3'+ lengths only; indirect is 30% of lm/ft) |
| Finishes | Walnut (FSC), White Oak (FSC), Cherry (FSC), Hard Maple (FSC), White Ash (FSC), Smooth Satin, Clear coat: Satin / Danish Oil / ECO zero-VOC, Painted: Satin Black / Satin White / custom, FENIX NTM: Bianco Kos / Verde Comodoro / Blu Fes / Grigio Bromo / Nero Ingo / custom, Canopy: White / Black / Custom |
| Dimming | 0-10V, TRIAC/ELV, DALI (remote drivers), Lutron EcoSystem |
| Rated environments | Dry, Damp location |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
The Polar Array (LW-EB-XPA) is aaline's parametric statement piece, designed in Toronto around generative geometric algorithms so an architect or designer can specify a one-off radial chandelier from a small kit of parameters: the number of stems (N, standard 3 or 5), the total radial coverage (D, standard 90°, 180°, or 270°), each stem's length (L, 2'–6' in 1' increments), the overall fixture height (H, 2'–4' in 1' increments, on-site adjustable ±3"), and the spacing between stems (Z, 3" standard in 1" increments). Chip-on-board LED modules behind a polycarbonate tube diffuser deliver three fixed system outputs — 3,024 lm at 28.8 W, 6,048 lm at 57.6 W, or 9,072 lm at 86.4 W — all at 105 lm/W, in 2700K, 3000K, 3500K, or 4000K white (90+ CRI at 2700K/3000K/4000K, 80+ CRI at 3500K); final output is confirmed in shop drawings and custom outputs are available. Distributions are Direct, or — on 3'+ stem lengths — Indirect and Direct + Indirect (the indirect component is 30% of the lm/ft). Power input is 110–277V AC, 50/60 Hz through a Remote or Powered-Canopy driver with 0-10V, TRIAC/ELV, DALI (remote drivers), or Lutron EcoSystem dimming, on a 1- or 2-circuit feed. Finishes are FSC-certified hardwoods — Walnut, White Oak, Cherry, Hard Maple, White Ash, and Smooth Satin — in Satin, Danish Oil, or zero-VOC ECO clear coats, or Satin Black / Satin White / custom paint, with optional FENIX NTM (Bianco Kos, Verde Comodoro, Blu Fes, Grigio Bromo, Nero Ingo, custom) and White / Black / custom canopies. Suspension mounts via Power Over Cable (remote driver) or Junction Box Support (powered canopy). The assembly weighs under 2.5 lb per foot, is rated for dry or damp locations, and carries a 5-year warranty plus a reclamation program.
Pick from Polar Array's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
