Suspended acoustic-baffle-and-light pendant in four block sizes, delivering 100.8–2,497.6 delivered lumens of 80/90+ CRI light across hardwood frames, acoustic felt, and Maharam textiles.
| Wattage | 2.6–38 W |
|---|---|
| Luminous flux | 100.8–2497.6 lm |
| Efficacy | 66 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Suspended — Remote driver / Power Over Cable, Suspended — Powered Canopy / Junction Box, Suspended — non-powered cable gripper |
| Dimensions | 4 sizes — Small 1' × 6", Medium 2' × 1', Large 4' × 2', Square 2' × 2' (custom available); <5 lbs per sq ft; 5' cable, on-site adjustable |
| Distribution | Direct — Vertical (short side) or Horizontal (long side) |
| Finishes | Wood frame: Engineered Wood, Smooth Satin, Walnut, White Oak, Cherry, Hard Maple, White Ash, Frame finish: Satin, Danish Oil, ECO Zero-VOC, Satin Black, Satin White, Acoustic felt: Charcoal, Pebble Grey, Wool White, Meadow Green, Olive, Maharam textile: Manner Hush, Gemma Multi Pallium, Messenger Depth, Manner Poplar, Manner Magic, Custom / Match Maharam |
| Dimming | 0-10V; TRIAC/ELV |
| Rated environments | Dry location, Damp location |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

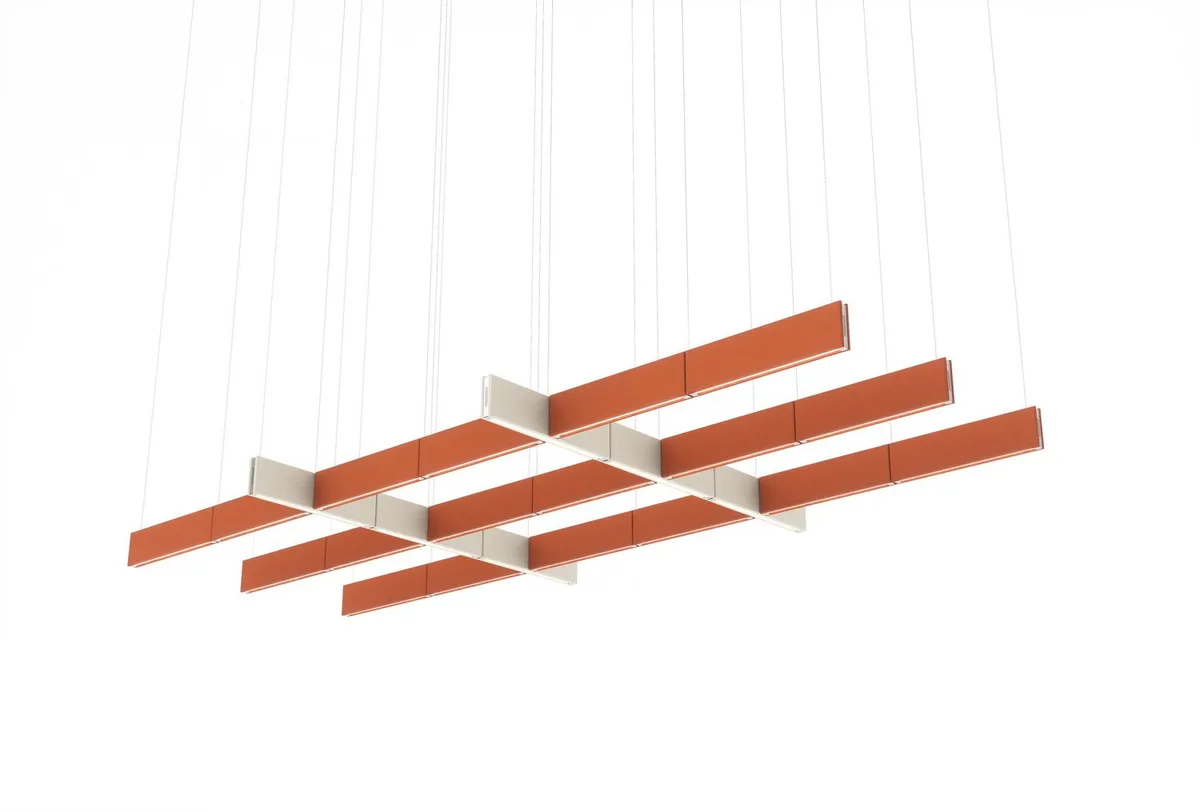

Plane is aaline's hybrid between an acoustic baffle and a luminaire — a suspended block built on the LW-EB Linear Embedded platform that pairs an aluminum frame with acoustic felt or Maharam textiles for a colorful, tactile take on overhead light and sound control. It comes in four sizes (Small 1' × 6", Medium 2' × 1', Large 4' × 2', and Square 2' × 2', with custom sizes on request) that mix and match into cluster-based compositions such as zig-zag and polar-array formations. As the Acoustic Light (AL) edition, Plane emits in three output tiers — Low 201.6 lm/ft at 5.2 W/ft (90+ CRI), Standard 445 lm/ft at 7.3 W/ft (80+ CRI), and High 624.4 lm/ft at 9.5 W/ft (90+ CRI) — for per-fixture deliveries from 100.8 lm / 2.6 W on a vertical Small baffle up to 2,497.6 lm / 38 W on a horizontal Large, with the emitter placed on the short side (Vertical Direct) or long side (Horizontal Direct) behind a polycarbonate diffuser. Color temperatures span 2700K, 3000K, 3500K, and 4000K (2700K on Low and High outputs only), dimmed via 0-10V or TRIAC/ELV, and powered at 110–277V through either a Remote driver (Power Over Cable) or a Powered Canopy (Junction Box support). Frames are offered in Engineered Wood, Smooth Satin, and FSC-certified Walnut, White Oak, Cherry, Hard Maple, and White Ash with satin, Danish oil, zero-VOC, or painted finishes, wrapped in acoustic felt (Charcoal, Pebble Grey, Wool White, Meadow Green, Olive) or Maharam textiles (Manner Hush, Gemma Multi Pallium, Messenger Depth, Manner Poplar, Manner Magic). Weighing under 5 lbs per square foot and manufactured in Toronto, Plane is rated for dry or damp locations and backed by a 5-year warranty with a reclamation program.
Pick from Plane's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
