Acoustic disc pendant whose zero-plastic felt strips nest in CNC-carved 3D wood grooves, delivering up to 1,200 lm at 90+ CRI from an integrated COB LED — offered in Beam and Globe distributions plus a replaceable-bulb edition.
| Wattage | 5.4–9.9 W |
|---|---|
| Luminous flux | 353–1200 lm |
| Efficacy | 121 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Beam angle | 15° / 18° / 24° / 36° / 60° |
| Mounting | Suspended (Powered Canopy), Suspended (Remote driver) |
| Dimensions | Disc form; Medium and Large sizes; adjustable suspension, 5 ft standard |
| Distribution | Direct |
| Finishes | FSC-certified wood: Walnut / White Oak / White Ash, Zero-plastic natural acoustic felt (40 accent colours), Canopy: White / Black / Custom |
| Dimming | 0-10V or TRIAC/ELV; DALI or Lutron on remote-driver COB edition; TRIAC/ELV on 120V Bulb edition |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

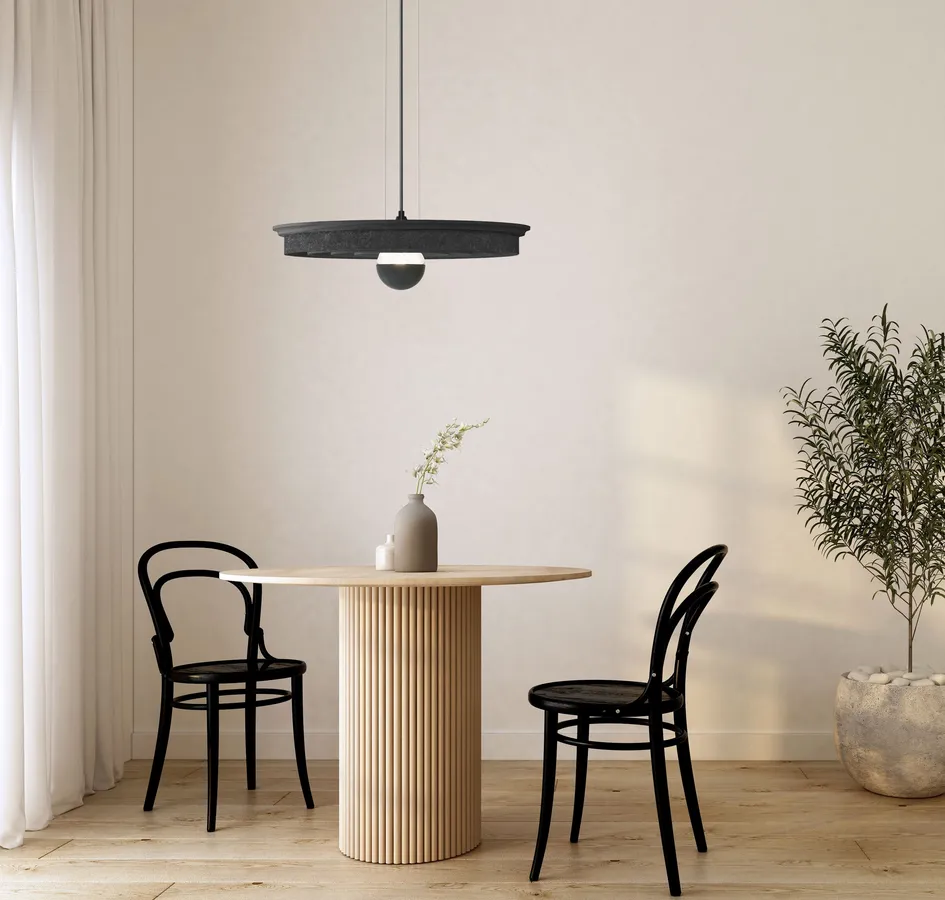

The Echo Pendant is the hero piece of aaline's Echo Collection — a shallow disc luminaire whose concentric rings of zero-plastic natural acoustic felt nest into CNC-carved 3D grooves in a solid engineered-wood base, creating a gradient of depth (a nod to harmonic serialism) while absorbing sound. Built in Toronto in Medium and Large sizes on an adjustable suspension (5 ft standard) with a Powered Canopy or Remote driver, it is offered with three light engines: a COB LED Beam edition delivering 700 lm (5.4 W), 900 lm (7.2 W), or 1,200 lm (9.9 W) at 108 lm/W, a COB LED Globe edition delivering 353 / 470 / 646 lm at the same wattages for a softer downward glow, and a Bulb edition accepting a standard E26 lamp (G40 Frosted 600 lm / 6 W, G40 Chrome-Dipped 600 lm / 7 W, or G40 Black-Dipped 400 lm / 4 W). The COB editions offer five optics — Super Spot 15°, Spot 18°, Medium 24°, Wide 36°, and Extra Wide 60° — across 2700K, 3000K, 3500K, and 4000K, all 90+ CRI, with an optional 3000K–1800K dim-to-warm; rated output is based on 3500K, 90 CRI at the Extra-Wide beam (actual output ±5%). Dimming is 0-10V or TRIAC/ELV, with DALI and Lutron available on the remote-driver COB edition (the Bulb edition dims via TRIAC/ELV on 120V). Input is 110-277V AC 50/60 Hz. Finishes pair FSC-certified wood — Walnut, White Oak, or White Ash — with zero-plastic natural acoustic felt in 40 accent colours and a White, Black, or custom canopy. The assembly weighs under 3 lbs per foot, is cETLus/cULus listed, RoHS compliant, and FSC certified, and carries 10-year life-cycle support with a 5-year parts warranty and a reclamation program.
Pick from Echo Pendant's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
