7" recessed adjustable LED elbow fixture on ON LIGHT's high-performance die-cast platform — 2,000–10,500 delivered lumens (14–80 W), up to 160 LM/W, 84/90/97 CRI, and 15°–72° tool-less MIRO reflectors; CSA listed, assembled in Canada.
| Wattage | 14–80 W |
|---|---|
| Luminous flux | 2000–10500 lm |
| Efficacy | 131 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥90 |
| Beam angle | 15° / 24° / 36° / 60° / 72° |
| Mounting | Recessed adjustable, single-gimbal (7" ceiling opening; tilt to 85°, 350° rotation) |
| Dimensions | 7" ceiling opening; 5 5/8" recessed depth + 3" min clearance; trim 3.8 lb (1.8 kg) |
| Distribution | Direct |
| Finishes | RAL 9016 White, RAL 9005 Black, RAL 9006 Silver, Custom color |
| Dimming | 0–10V (0.1–5%), DALI, Casambi; 120/277/347V input |
| Rated environments | Dry |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

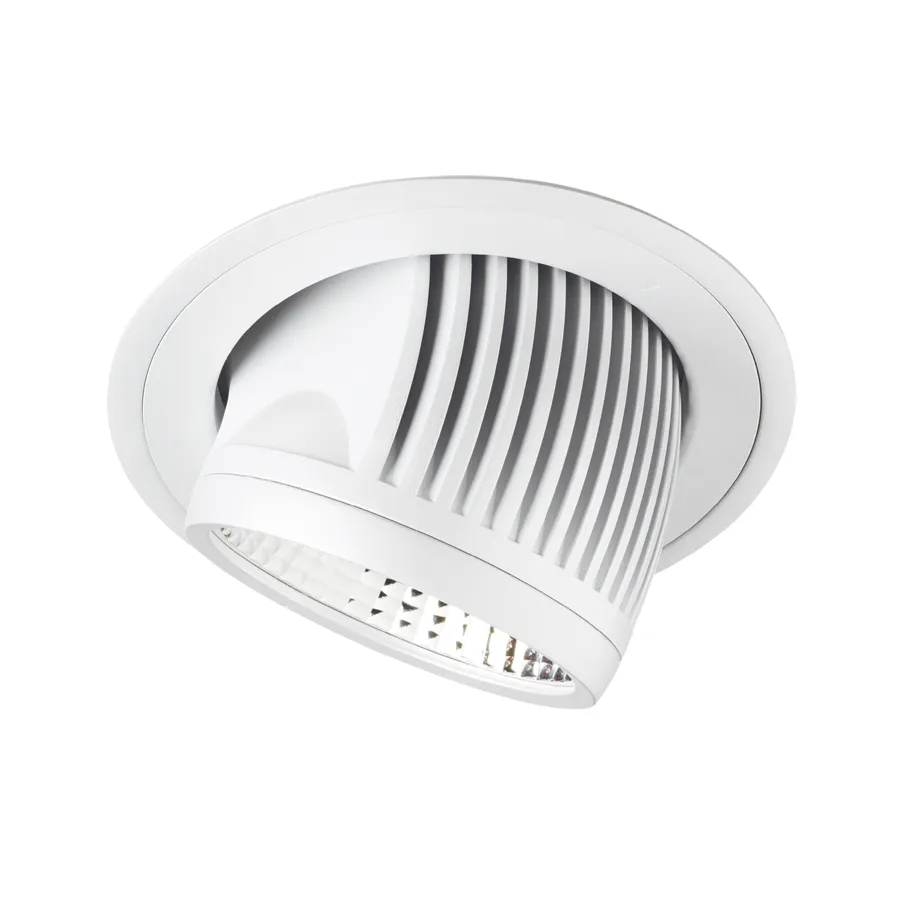

Polar is ON LIGHT's 7" recessed LED "elbow" fixture, sharing the Bridgelux Vero engine and EZ Swap tool-less reflector system of the Micro/Polar/Carda high-performance family. The die-cast aluminum single-gimbal trim pivots up to 85° on one axis and rotates 350° for adjustable accent and wall-wash aiming. Delivered output runs 2,000 lm (14 W) to 10,500 lm (80 W) across selectable driver outputs (25 W, 50 W, 60 W and 100 W drivers), reaching a nominal efficacy of 124–160 LM/W. Standard white CCTs are 2700K, 3000K, 3500K, 4000K and 5000K (tunable-white 1800K–6500K variants and bread/meat/fish food-color renderings are offered), with CRI options of 84 nominal (min 80), 90 and 97 plus an A-Class human-response option; color consistency is held to a 3-step MacAdam ellipse. Faceted pure-aluminum MIRO reflectors ship in 15°, 24°, 36°, 60° and 72° beam spreads. Drivers provide 0–10V dimming (0.1–5%), DALI and Casambi with 120V, 277V or 347V input, and the COOLED closed-loop temperature-monitoring system with a near-silent (17 dBA) MagLev fan protects the light engine. The 7" ceiling opening seats a 5 5/8" recessed body needing 3" of clearance; the textured powder-coat trim (3.8 lb) comes in RAL 9016 white, RAL 9005 black, RAL 9006 silver and custom colors. Rated 50,000 hours at L77 (IESNA TM-21) for dry locations, photometrically tested to IESNA LM-79 by an NVLAP-accredited lab, Lighting Facts qualified, CSA certified to US and Canadian standards, and backed by a 5-year system warranty; assembled in Beloeil, Canada.
Pick from Polar's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
