IP65 waterproof recessed downlight in Ø4" and Ø6" apertures, delivering 2,400–7,330 lm from an all-metal body with stainless-steel front cover for wet, poolside, and outdoor spaces.
| Wattage | 30–90 W |
|---|---|
| Luminous flux | 2400–7330 lm |
| Efficacy | 81 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥85 |
| Beam angle | 30° / 45° / 55° |
| IP rating | IP65 |
| Mounting | Recessed retrofit, New construction panel |
| Dimensions | Rev Hydro 4: Ø4" aperture, 4.8" trim, 4.2" H, 5.5 lb · Rev Hydro 6: Ø6" aperture, 6.8" trim, 5" H, 7.7 lb |
| Distribution | Direct (30°/45°/55°), Wallwash |
| Finishes | Black, White, Gray, Bronze, Brushed Stainless Steel |
| Dimming | 0–10V and DALI to 10% |
| Rated environments | ETL Wet Location listed, Outdoor / Natatorium / Marine rating options, -20 °F to 112 °F |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

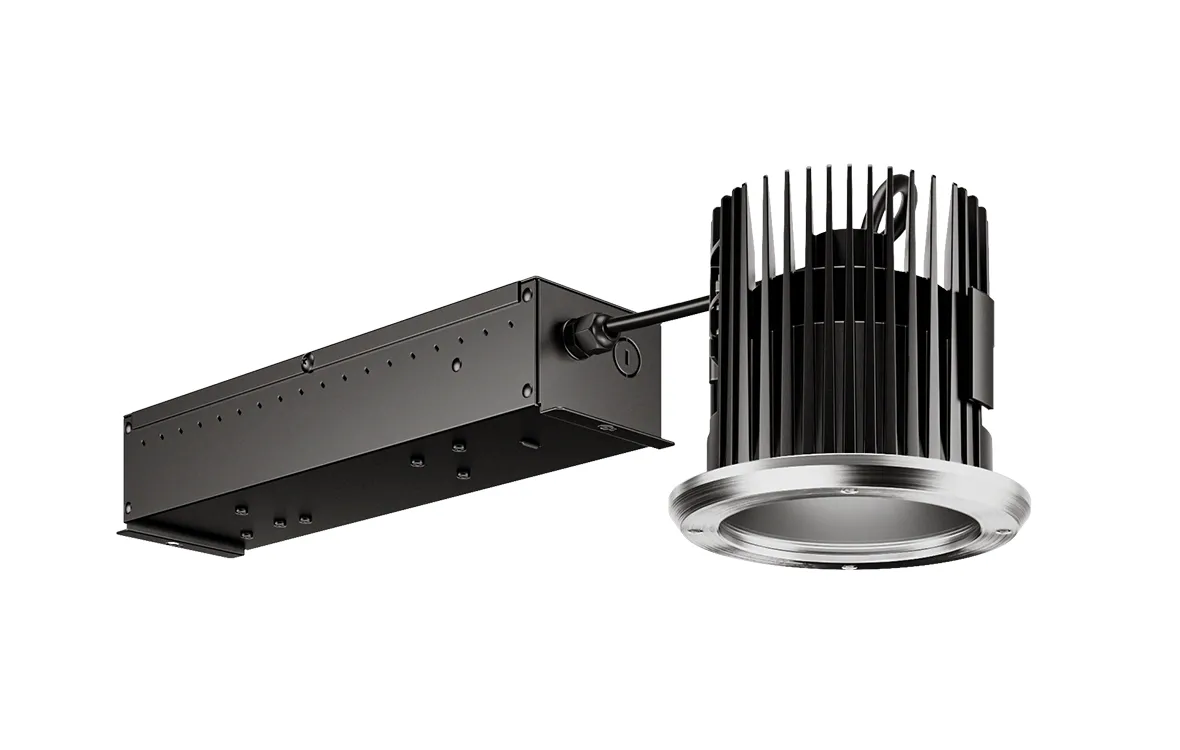

Rev Hydro is Meteor Lighting's waterproof take on the Rev recessed downlight, engineered for wet, poolside, and exposed outdoor ceilings. Two apertures cover the range: the Ø4" Rev Hydro 4 (30/40/50 W, 2,400–4,050 delivered lumens) and the Ø6" Rev Hydro 6 (50/70/90 W, 4,350–7,330 delivered lumens), both built from a die-cast aluminum body with a flow-formed aluminum trim, PC/glass lens, and stainless-steel front cover carrying an IP65 rating and ETL Wet Location listing. A trim glass cover and gasket seal block water ingress from below, and Outdoor, Natatorium (chlorine-resistant), and Marine (saltwater-resistant) rating options tailor the coatings and sealants to the environment. Optics come in 30°, 45°, 55°, and wallwash distributions at CRI 85 and 2700–5000 K, with 0–10V and DALI dimming to 10%, rated L70 at 60,000 hours and backed by a 5-year limited warranty. An Archi-Color W+RGB variant (Rev Hydro 6) and cylinder-conversion surface kits are offered separately.
Pick from Rev Hydro's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
