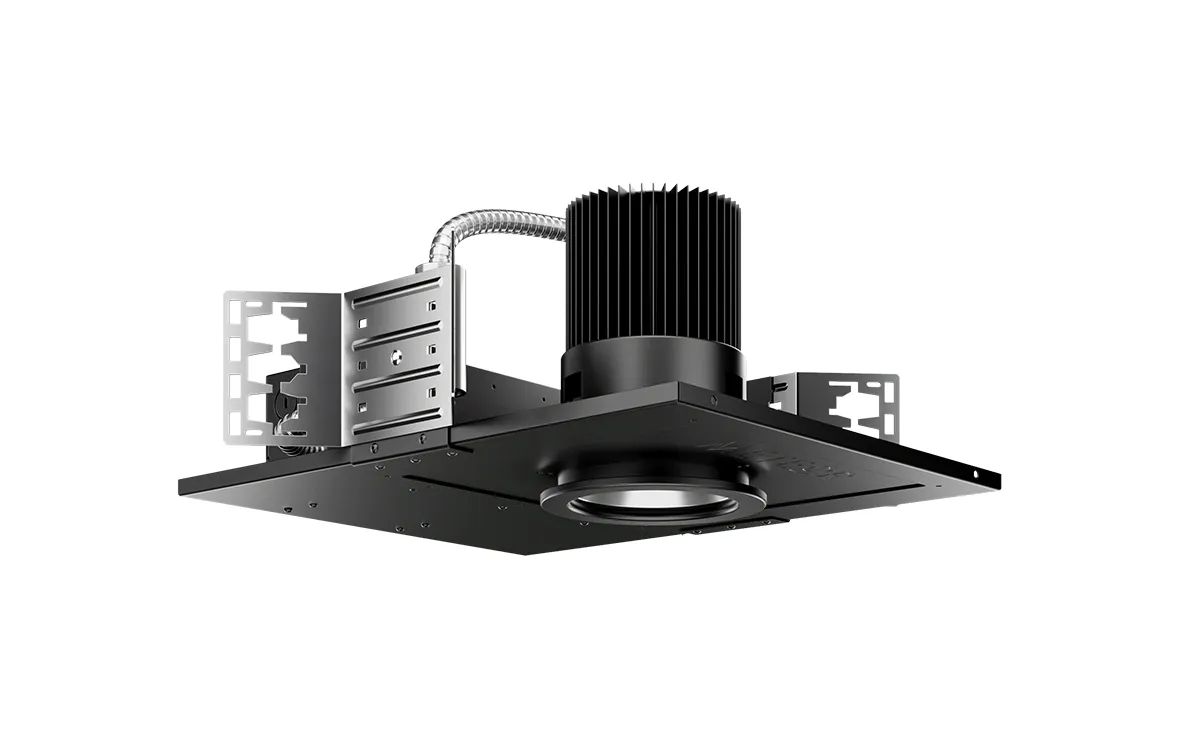

High-lumen recessed downlight in 4" and 6" apertures delivering 1,660–11,300 lm from a deep double-reflector optic, with flicker-free VX Driver dimming and new-construction or retrofit housings.
| Wattage | 20–100 W |
|---|---|
| Luminous flux | 1660–11300 lm |
| Efficacy | 113 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥85 |
| Beam angle | 35° / 40° / 45° / 55° / 60° |
| Mounting | Recessed new construction, Recessed retrofit, Sloped ceiling adapter |
| Dimensions | Rev 4: Ø4.61" aperture (NC) / Ø4.82" (retrofit), 8" height; Rev 6: Ø6.3" aperture (NC) / Ø7" (retrofit), 8" height |
| Distribution | Direct |
| Finishes | Black, White |
| Dimming | 0–10V to 1% (superior) / 10% (standard), DMX to 0.1%, DALI to 10%, TRC phase to 1%, Lutron Hi-Lume EcoSystem (VX Driver) |
| Rated environments | ETL Damp location, -20 °F to 112 °F |
| Rated lifetime | 100,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Rev is Meteor Lighting's high-output recessed downlight range, offered here in the 4-inch (Rev 4) and 6-inch (Rev 6) apertures — a "Quiet Ceiling Design" built around a deep, double optical reflector for high-efficacy performance. Rev 4 runs 20/40/60/80 W (1,660–8,695 delivered lumens) with 35°/45°/55° optics; Rev 6 runs 40/60/80/100 W (4,570–11,300 delivered lumens) with 40°/60° and a wide-diffuser option. Both use extruded-aluminum housings (high-pressure aluminum retrofit) with flow-forming aluminum reflectors, 2700K–4000K static white at CRI 85 (CRI 75/93 also available), and Meteor's proprietary VX Driver for video-flicker-free performance and IEEE 1789 compliance. Advanced dimming spans standard/superior 0–10V (10% and 1%), DMX to 0.1%, DALI, TRC line-voltage phase, and Lutron Hi-Lume EcoSystem. Available in new-construction and retrofit configurations with a matte-silver reflector and black or white trim, rated L70 at 100,000 hours and ETL Damp Location listed. The base Rev family also offers Colorflip Warm Dim, Tunable White, and Archi-Color W+RGB variants on separate spec sheets.
Pick from Rev 4/6's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
