Track accent spotlight for the AxisTrak system — narrow, medium, wide, and wall-wash beams (15°–60°) at up to 1600 lumens, 90 CRI, in deep or shallow baffles with optional hexcell, for straight or curved track segments.
| Luminous flux | 1400–1600 lm |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Beam angle | 15° / 35° / 60° |
| Mounting | AxisTrak track, Curved-segment track |
| Dimensions | 2 1⁄8″ dia; deep baffle 3 17⁄32″ H, shallow baffle 2 7⁄8″ H; Stella 32, Stella 55, and Stella 32×2 sizes |
| Distribution | Accent / spot, Wall wash |
| Finishes | Matte black, Matte white |
| Dimming | Integral 0–10V 1% driver; integral DALI-2; Empower wireless with integral sensor node; on AxisTrak (48V) |
| Rated environments | Dry, Indoor only |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

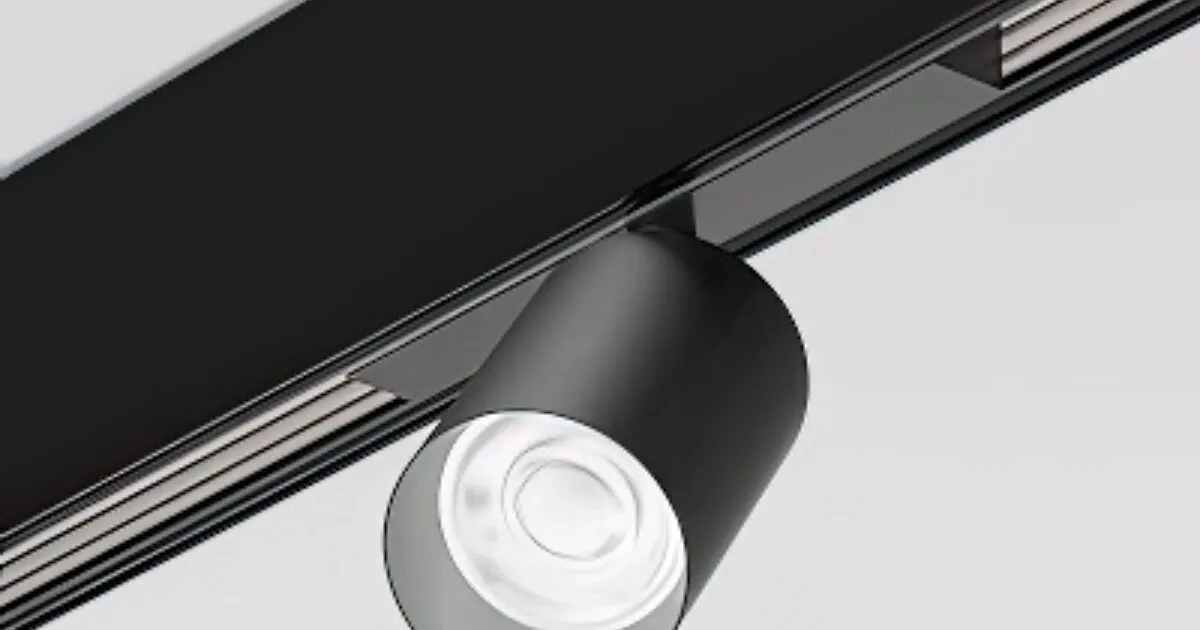

Stella is Axis Lighting's track accent spotlight for the AxisTrak and StencilFlex system, an adjustable head that aims light along straight or curved track segments. Offered in Stella 32, Stella 55, and twin Stella 32×2 heads with deep or shallow baffles (and an optional hexcell louver for glare control), it delivers narrow (15°), medium (35°), wide (60°), and wall-wash beams — Stella 55 at 1400 to 1600 lumens on 18W — at 90 CRI across 2700/3000/3500/4000K. Powered from the 48V AxisTrak, it dims via an integral 0–10V 1% driver, integral DALI-2, or Empower wireless with an integral sensor node. Available in matte black or white, Stella is cULus listed to UL2108 and carries a limited 5-year warranty.
Pick from Stella's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
