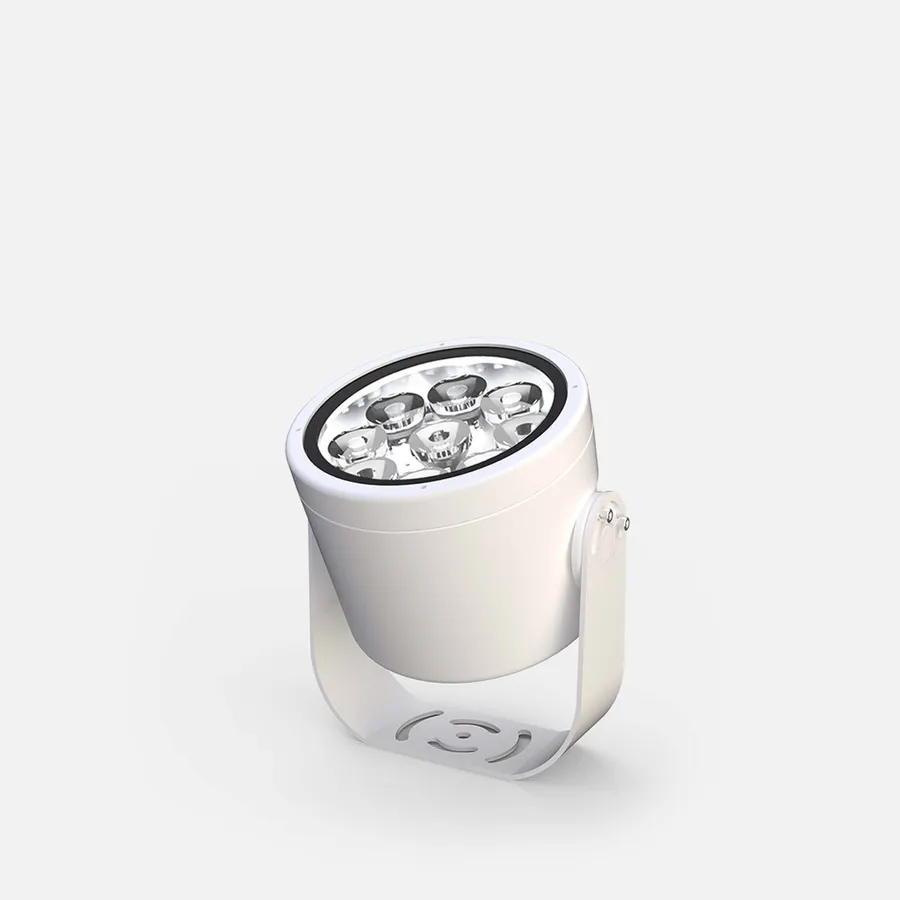

Insight Lighting · Flood Light
6" exterior performance projector delivering 1,828–2,334 lumens (up to 93.4 LM/W, 90,079 peak candela) from a 25 W A380 die-cast body with 5°–100° optics and wall wash — IP66, IK09, trunnion/knuckle/pendant/arm/stake/ceiling mounts.
| Wattage | 25 W |
|---|---|
| Luminous flux | 1828–2334 lm |
| Efficacy | 93 lm/W |
| Color temperature (CCT) | 2200K / 2700K / 3000K / 3500K / 4000K |
| CRI | ≥82 |
| Beam angle | 5° / 10° / 20° / 30° / 40° / 60° / 100° |
| IP rating | IP66 |
| Mounting | Trunnion, Knuckle, Pendant, Extended arm, Stake mount, Ceiling |
| Dimensions | Ø6.80" head × 8.00" tall (trunnion), 4.75" deep; 7 lb |
| Distribution | Direct (5°–100°), Asymmetric wall wash |
| Finishes | Textured White, Textured Black, Textured Bronze, Textured Light Bronze, Textured Gray, Textured Natural, Textured Sandstone, Custom Color |
| Dimming | 0-10V or DMX/RDM |
| Rated environments | Exterior (IP66), IK09 impact / 3G vibration (option), -40 °C to 50 °C, Coastal / extreme (CRF corrosion-resistant option) |
| Rated lifetime | 100,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
ProSpot 6 is the mid-size member of Insight Lighting's exterior performance-projector series, a 6" (Ø6.80") heavy-duty A380 die-cast aluminum accent projector for building façades and landscapes up to roughly four stories. A single 25 W Standard Output engine delivers 1,828 lumens in the 100° flood up to 2,334 lumens in the 5° spot (4000K, up to 93.4 LM/W and 90,079 peak candela) behind a tempered-glass lens, with field-swappable 5°, 10°, 20°, 30°, 40°, 60°, and 100° optics plus an asymmetric wall-wash distribution, horizontal spread lens, and optical kit. White-light CCTs are 2200K, 2700K, 3000K, 3500K, and 4000K, with factory static colors (red, green, blue, amber, and turtle-friendly amber) also offered. Power is an integrated 120V or 277V supply with 0-10V or DMX/RDM control, and mounting spans trunnion, knuckle, pendant, extended arm, stake, and ceiling with 2.38"/4.00" tenon and pole adaptors. High-durability powder-coat finishes cover Textured White, Black, Bronze, Light Bronze, Gray, Natural, and Sandstone plus custom color, with black or white cabling and an optional corrosion-resistant finish (CRF, ASTM B117) for coastal and extreme exterior sites. The 7 lb fixture is listed ETL/cETL to IP66 and IK09 with an optional 3G-vibration rating and Turtle-Friendly amber, carries 100,000-hour lumen maintenance and a 5-year limited warranty, and complies with the Build America Buy America Act (BABA option).
Pick from ProSpot 6's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
