Recessed curved/ring version of Picasso's 2"-wide Curve profile — direct 350 or 500 lm/ft, 2700-4000K plus tunable white, in 3-6 ft nominal ring sizes with trimless or threaded-rod installation.
| Wattage | 4.3–6.02 W/ft |
|---|---|
| Luminous flux | 350–500 lm/ft |
| Efficacy | 83 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (threaded rod, no flange), Recessed trimless (spackle flange) |
| Dimensions | 2" W x 4" H profile; 3/4/5/6 ft nominal ring sizes, custom sizes and oval shapes available |
| Distribution | Direct |
| Finishes | White, Black, Silver, Custom (RAL/Pantone, wood, anodized, chrome/gold plated) |
| Dimming | Remote 0-10V 1% dimming standard (120/277V); remote non-dim; remote Lutron EcoSystem 1%; Lutron Athena wireless node, POE, DALI, DMX optional; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

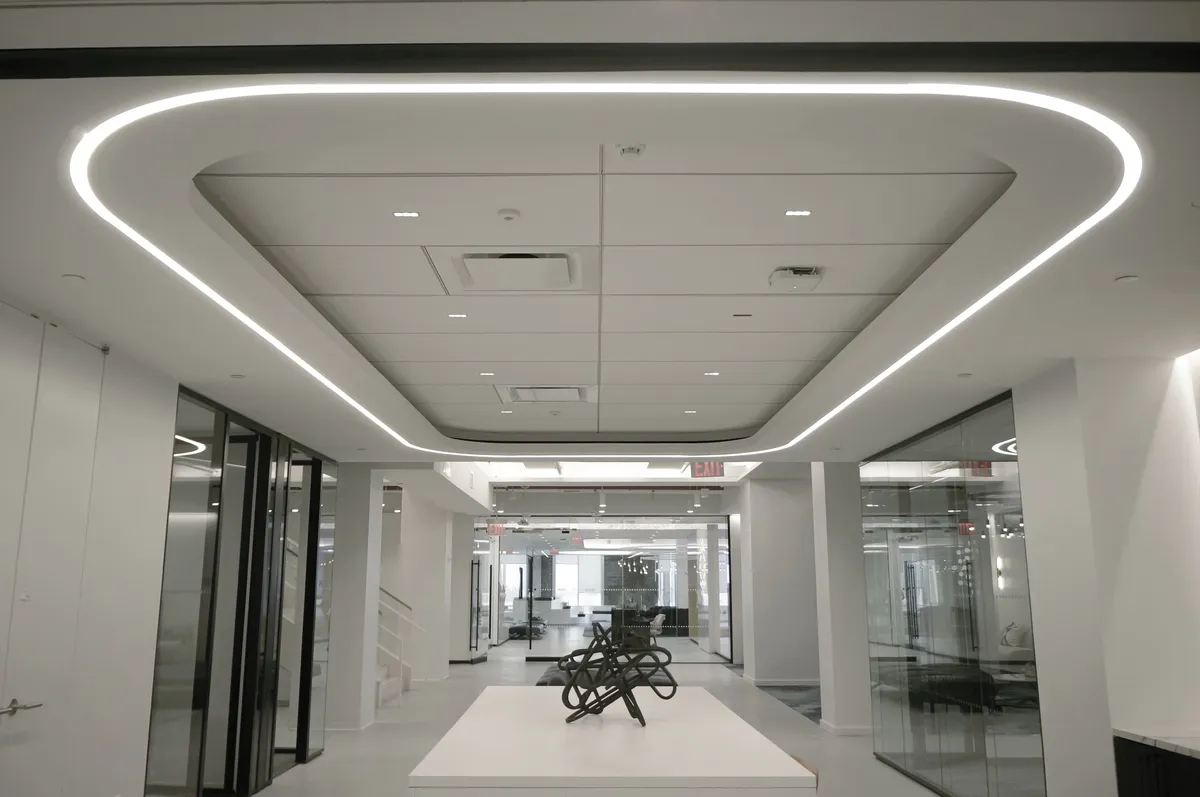

Curve 2 Recessed brings Picasso Lighting's 2" x 4" Curve profile into the ceiling plane as a recessed curved or ring fixture. Extruded aluminum rings come in standard nominal sizes of 3, 4, 5, and 6 ft, with custom sizes and custom oval shapes available; each ring ships in 2-4 sections locked together with ring clamps. The slightly regressed, lay-in Opal White acrylic lens lifts and shifts for access, and the LED performance table publishes direct output of 350 lm/ft (4.3 W/ft) and 500 lm/ft (6.02 W/ft) at 3000K. Standard CCTs run 2700K-4000K in 80+ or 90+ CRI, with tunable white (2700-5000K) and warm dim available and LED life rated at 50,000 hours. Remote drivers are universal-voltage 110-277 VAC with 0-10V 1% dimming standard; remote non-dim, Lutron EcoSystem 1%, Lutron Athena wireless nodes, remote emergency battery backup, and POE/DALI/DMX controls are optional. Installation is by equally spaced 3/8" holes receiving 1/4-20 threaded rods, either flangeless or trimless with a spackle flange; the Curve Series is also available in pendant and surface versions. IBEW-manufactured in Moonachie, NJ (BABAA option), UL listed for dry and damp locations, five-year limited warranty.
Pick from Curve 2 Recessed's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
