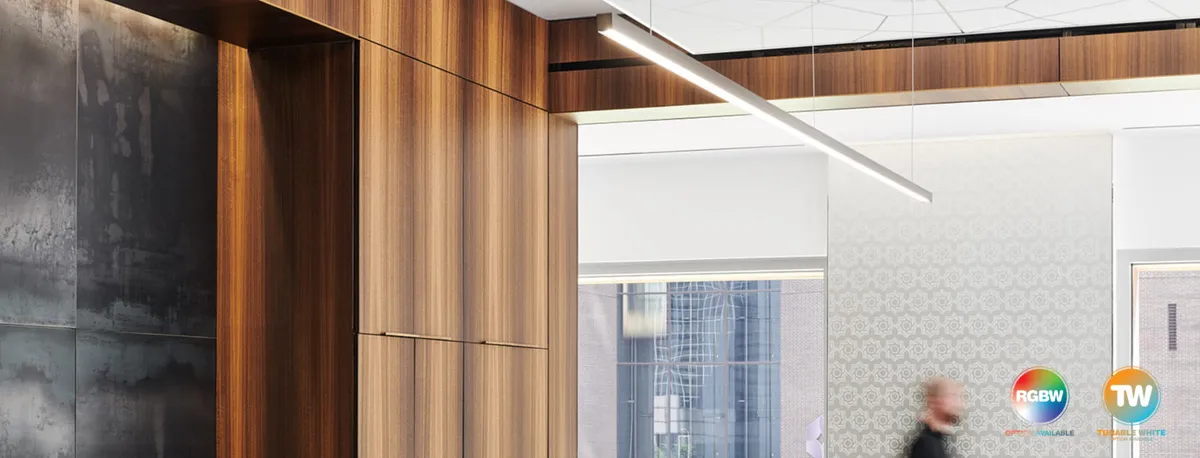

OCL Architectural Lighting · Linear
Minimal 1.75-in square-profile suspended linear LED from OCL with a seamless silicone diffuser, offered in five lengths (24–72 in) and static-white, tunable-white, or RGBW light sources, delivering 420–2,100 delivered lumens at 80+/90+ CRI.
| Wattage | 7–35 W |
|---|---|
| Luminous flux | 420–2100 lm |
| Efficacy | 60 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Pendant (suspended), Continuous run (end-to-end) |
| Dimensions | 1.75 in square profile; lengths 24 / 36 / 48 / 60 / 72 in |
| Distribution | Direct |
| Finishes | Matte White, Black, Brass Metallic, Bronze, Black Textured, Graphite, Goldtastic, Steel Gray, Silver Metallic, Sky White, White Textured, Brushed Aluminum (metal), Everwoods wood-grain (body only), RAL / Pantone / custom |
| Dimming | 0-10V (1%); dual 0-10V, DALI-2, or DMX to 0.1% |
| Rated environments | Dry, Damp location (ULD option) |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Liner is OCL's minimal suspended linear luminaire (series LN1): a 1.75" square extruded-and-welded aluminum profile with a seamless extruded-silicone diffuser that eliminates light leaks and visible seams, and can be joined end-to-end into long continuous runs. It is offered in five lengths — 24", 36", 48", 60", and 72". Two static-white LED outputs are published at 3500K, 80+ CRI: LED1 delivers 420 lm (7 W) at 24", 660 lm (11 W) at 36", 840 lm (14 W) at 48", 1,080 lm (18 W) at 60", and 1,260 lm (21 W) at 72"; LED2 delivers 720 lm (12 W), 1,080 lm (18 W), 1,320 lm (22 W), 1,740 lm (29 W), and 2,100 lm (35 W) across the same lengths. Static white is available at 2700K, 3000K, 3500K, and 4000K in 80+ CRI (R9 > 0) and 90+ CRI (R9 > 50, 0.85 lumen multiplier). A TWH1 tunable-white source (2700K–5000K, 90+ CRI, R9 50+) and an RGBW source (128–384 delivered lumens, P1EB hanging system only) are also offered. Hanging systems are P1EB (an aircraft cable at each end with a remote driver enclosure, required for RGBW) or P1SD (vertical aircraft cables to a central canopy with integral driver), field-adjustable to 48", 100", or 144" OAH. It runs on 120–277V with 0-10V (1%) dimming standard, or optional dual 0-10V (DM8), DALI-2, or DMX control down to 0.1%. The matte-white diffuser pairs with OCL's standard powder-coat and premium metal palette plus the Everwoods wood-grain body finishes (White Pine, Pine, Cherry, Teak, Walnut, Dark Walnut, Light Barnwood, Dark Barnwood) and RAL/Pantone/custom colors. LED arrays and drivers are field-replaceable; the luminaire is ETL listed to UL 1598/2108 for dry locations (damp-label optional) with a 5-year warranty. Designed and fabricated in St. Louis, Missouri.
Pick from Liner's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
