Sealwerx-series sealed linear collection in 2", 3", and 4" apertures — IP44 to IP66 ingress and IK08 impact protection, direct and direct/indirect distributions at 350–1000 lm/ft, 80/90/95+ CRI, static-white, full-spectrum, and BIOS circadian light sources.
| Luminous flux | 350–1000 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5000K |
| CRI | ≥95 |
| IP rating | IP66 |
| Mounting | Recessed, Surface, Wall, Pendant (stem) |
| Dimensions | 2" (2 3/8" wide), 3" (3 1/16" wide) & 4" (4 1/16" wide) extruded-aluminum apertures; sections 2–12 ft & continuous runs in 1 ft / 1 in increments |
| Distribution | Direct, Direct/Indirect |
| Finishes | Matte white, Matte black, Aluminum, White Antimicrobial (Silverwerx), Custom (RAL), Corrosion-resistant, Natatorium, Marine |
| Dimming | 0–10V to 1% standard; ELV, TRIAC, DALI, Lutron Hi-lume 1% Eco, eldoLED 1% ECOdrive & 0.1% SOLOdrive; remote low-temperature 10% 0–10V; PoE compatible; 120V / 277V / universal 120–277V / 347V input |
| Rated environments | Dry, Damp location, Wet location |
| Rated lifetime | 60,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

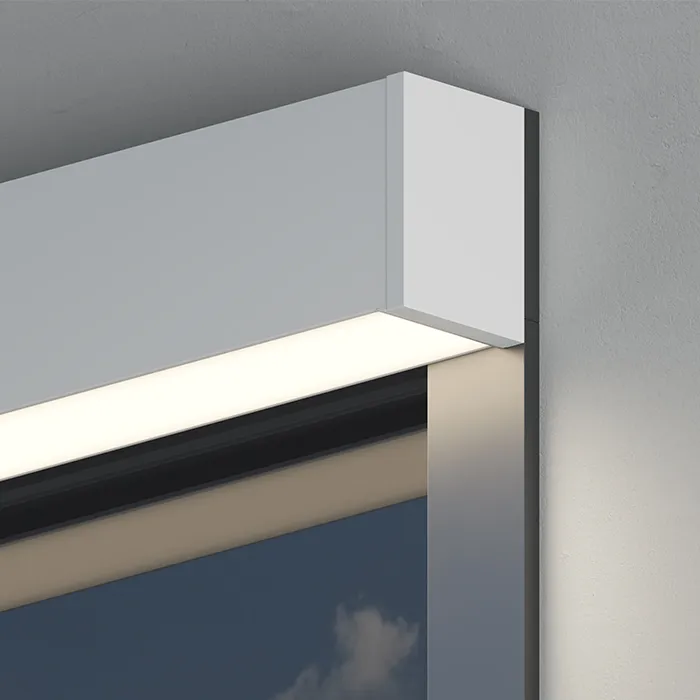

Via Seal is Lumenwerx's Sealwerx-series sealed member of the Via linear family, engineered for harsh and hygienic environments while keeping the visual continuity of the Via line. It is offered in 2" (2 3/8" wide), 3" (3 1/16" wide), and 4" (4 1/16" wide) extruded-aluminum apertures with ingress protection specified per environment from IP44 (dry/damp) through IP64, IP54, IP65, IP65EC, and IP66 (wet), plus IK08 impact resistance. Direct and direct/indirect distributions use Environmentally Protected Direct (EPDO), Asymmetric Soft Direct (ASDO), Environmentally Protected Indirect (EPIO), Asymmetric Soft Indirect (ASIO), and Widespread Indirect (WIO2) optics. Delivered output runs 350, 500, 750, and 1000 lumens per foot depending on aperture, from a cartridge-mounted LED array in 2700/3000/3500/4000/5000K, offered as static white or full-spectrum static white with 80+, 90+ (elevated R9), or 95+ CRI (full spectrum), or BIOS Biological Static/Dynamic/Tunable circadian solutions; Chromawerx SOLA and DUO tunable options are also available. All LEDs are tested to LM-80 with L80 lumen maintenance beyond 60,000 hours (3 SDCM). Standard sections span 2 to 12 ft with continuous runs in 1 ft / 1 in increments, mounting recessed, surface, wall, or pendant. Drivers are universal 120–277V (347V with the D1 driver), dimmable to 1% on 0–10V, with ELV, TRIAC, DALI, Lutron Hi-lume 1% EcoSystem, eldoLED 1% ECOdrive and 0.1% SOLOdrive, and a remote low-temperature 10% 0–10V driver; PoE compatible. Finishes include matte white, matte black, aluminum, White Antimicrobial Silverwerx, custom RAL, and corrosion-resistant, natatorium, and marine finishes for IP66/IP65/IP65EC environments. ETL listed to UL 1598 and CSA C22.2 No. 250.0 (IP44 rated for dry/damp; IP66/IP65/IP64 rated for wet locations), with a five-year limited warranty.
Pick from Via Seal's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
