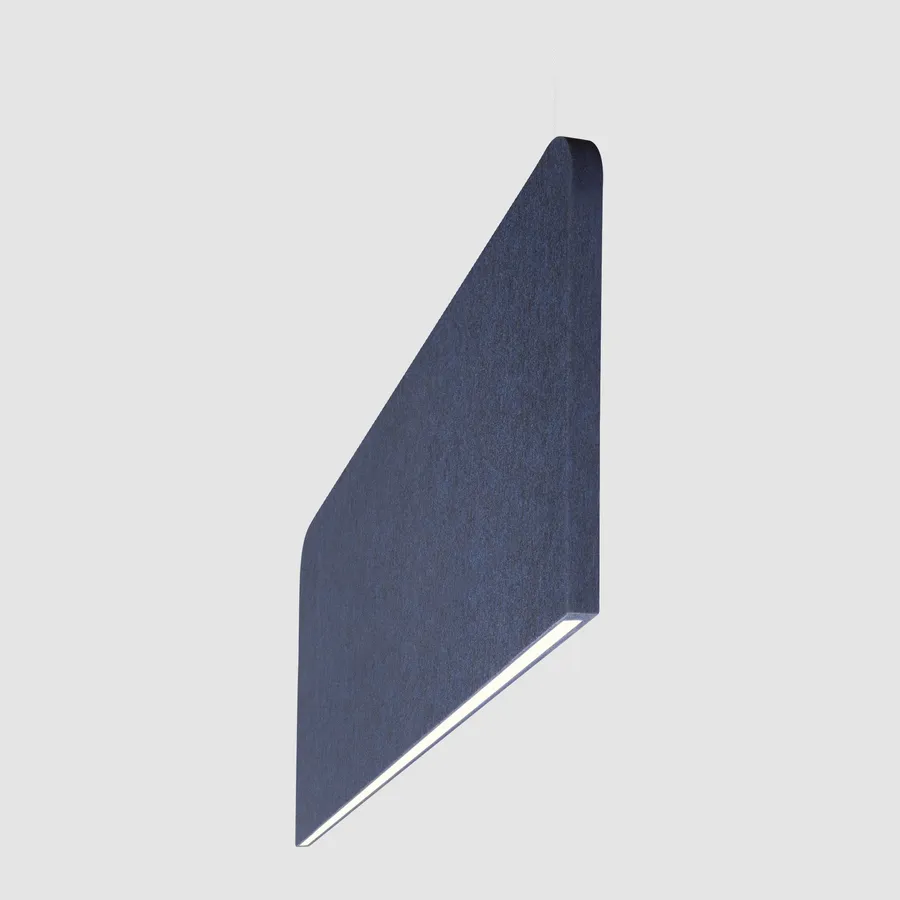

The slimmest luminaire in Lumenwerx's Acoustix portfolio — a 0.7-inch-wide suspended acoustic pendant in direct, indirect, and direct/indirect distributions at 250 or 500 lm/ft, 90 CRI with elevated R9, felt-wrapped for sound absorption, in seven lengths from 2 to 8 ft.
| Luminous flux | 250–500 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Pendant (aircraft cable) |
| Dimensions | 0.7" (18 mm) wide; seven lengths 2–8 ft; heights 8", 12", 16"; extruded-aluminum housing (0.095" nominal, up to 90% recycled content) |
| Distribution | Direct, Indirect, Direct/Indirect |
| Finishes | Matte white, Aluminum, Matte black, Custom RAL |
| Dimming | Down to 1%; 0-10V, ELV, TRIAC canopy drivers; remote 0-10V, ELV, TRIAC, Lutron Hi-lume 1% 2-wire & 1% EcoSystem, DALI, eldoLED 0.1% SOLOdrive & 1% ECOdrive; PoE compatible; 120/277/347V & universal 120–277V input |
| Rated environments | Dry, Damp location |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
Tab Acoustix is the slimmest family in the Lumenwerx Acoustix portfolio, a suspended linear pendant just 0.7 inches (18 mm) wide that pairs light with sound-dampening felt. The High-Efficiency Lambertian Optic (HLO) distributes LED output across 0.075" acrylic shielding for up to 88% transmission, delivered in direct, indirect, or direct/indirect distribution. Delivered output is 250 lm/ft for single-side (direct or indirect) and 500 lm/ft for direct/indirect at 16.8 W/ft, both at 30 lm/W (values calculated on a 4 ft fixture at 3500K, 90 CRI). The light source is a custom linear array of mid-flux LEDs, cartridge-mounted with quick-connect wiring, available in 2700/3000/3500/4000K at 90 CRI with elevated R9 and color consistency within 3 SDCM. Tab suspends on aircraft cable via integrated power-over-cable (POC) or a black/white power cord, with flat-round or deep-round canopies, and is offered in seven lengths (2 to 8 ft) and three heights (8", 12", 16"). Metal finishes are matte white, aluminum, matte black, or custom RAL, and the acoustic felt — 100% polyester with up to 50% recycled PET, ASTM E-84 Class A, moisture resistant — comes in a range of standard and premium colors. Dimming runs to 1% with 0-10V, ELV, and TRIAC canopy drivers, or remote 0-10V, ELV, TRIAC, Lutron Hi-lume 1% 2-wire and 1% EcoSystem, DALI, and eldoLED 0.1% SOLOdrive / 1% ECOdrive drivers; 120/277/347V and universal input, PoE compatible. ETL listed to UL 1598 and CSA C22.2 No. 250.0 for indoor dry/damp locations, WELL for Light/Sound/Mind aligned, and backed by a five-year limited warranty.
Pick from Tab Acoustix's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
