Color-changing performance linear grazer/wall-wash in 12"–96" lengths and continuous runs — 219–2,430 delivered lumens (48") at up to ~62 LM/W across 10°×10° to 80°×80° and asymmetric graze optics, Quad Perfect RGB+white mixing, DMX/RDM.
| Wattage | 14–61 W |
|---|---|
| Luminous flux | 219–2430 lm |
| Efficacy | 40 lm/W |
| Color temperature (CCT) | 2200K / 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Beam angle | 10° / 20° / 40° / 60° / 80° |
| Mounting | Fixed mount (FM), Hinge mount (HM), Surface mount, back (SMB), Extended arm, back (EAB), Aircraft cable (AM), Pendant (PM) |
| Dimensions | Nominal lengths 12", 24", 36", 48", 60", 72", 84", 96" plus continuous runs; 2.25" W × 2.75" H extruded-aluminum profile (3.06" over lens); 2.75 lb (1.25 kg) per foot |
| Distribution | Symmetric (10° to 80° optics), Asymmetric graze (uplight / downlight), Direct view |
| Finishes | Textured White, Textured Black, Textured Bronze, Textured Light Bronze, Textured Gray, Textured Natural, Textured Sandstone, Custom Color |
| Dimming | DMX + RDM (system, fixture, or foot-by-foot resolution); 120V or 277V integral driver |
| Rated environments | Dry or damp location, -20 °C to 40 °C |
| Rated lifetime | 75,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

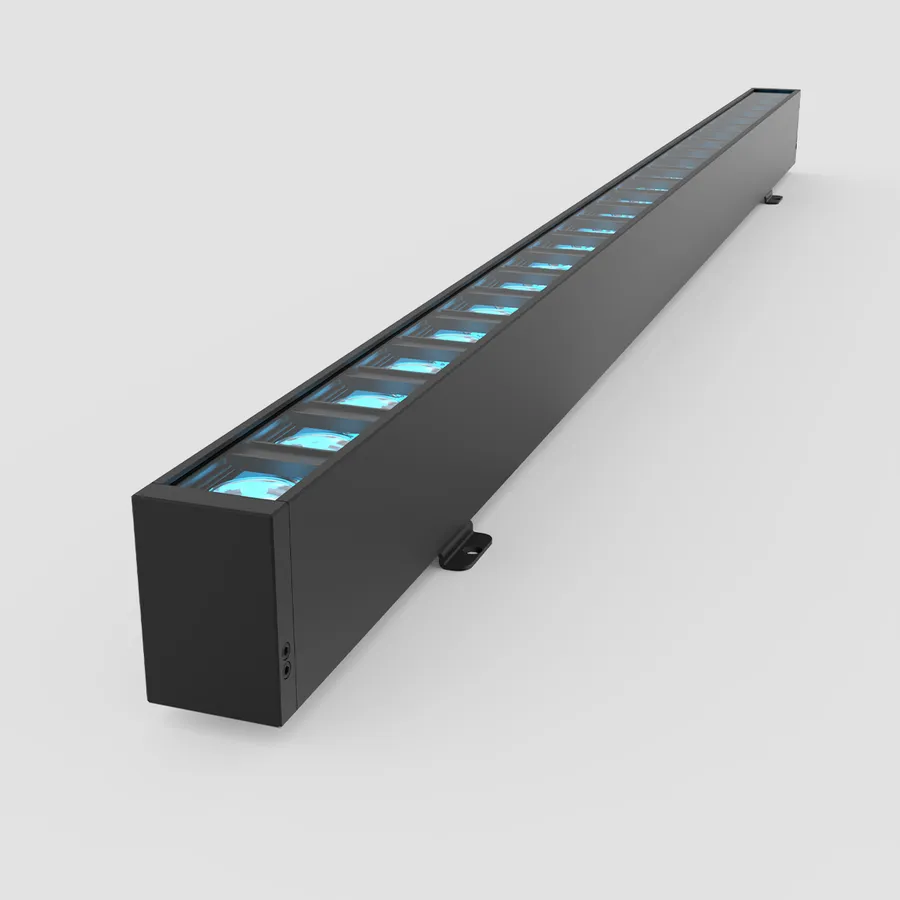

Structure Graze (MI) is Insight Lighting's color-changing performance linear for wall grazing, wall washing, and direct-view accent work. A precision extruded-aluminum housing behind a high-density acrylic lens carries Insight's patented Quad Perfect / Nitro Color engine — a quad-chip array (red, green, blue, white) that concentrates all colors in a single point of view for smooth on-axis mixing — in RGB-Amber, RGB (2200K, 2700K, 3000K, 3500K, 4000K white points), and RG-Royal Blue (3000K/4000K) configurations. Three outputs (Low 3.5 W/ft, Medium 9.0 W/ft, High 15.0 W/ft) drive an unusually broad optical set spanning symmetric 10°×10° through 80°×80°, dedicated asymmetric graze uplight/downlight distributions, and a direct-view flat white lens option; per the 48" performance table, delivered output runs from 219 lumens (Low output, 80°×80°, balanced white) up to 2,430 lumens (High output, 10°×10°, balanced white) at up to ~62 LM/W, with the white channel alone reaching 3,057 lumens. Nominal lengths are 12", 24", 36", 48", 60", 72", 84", and 96" plus continuous runs (up to 32 fixtures per feed, not to exceed 98 ft at 120V / 128 ft at 277V). Fixed, hinge, surface-back, extended-arm-back, aircraft-cable, and pendant mounts cover applications; control is DMX + RDM at system, fixture, or foot-by-foot resolution on 120V or 277V. A high-durability powder coating is offered in seven textured finishes plus custom color, with integral louver and visor options. ETL and cETL listed for dry or damp locations, RoHS, made in the USA, with L70 at 75,000 hours and a 5-year limited warranty. CRI reflects Insight's Nitro Color white channel (not printed on the color-changing spec sheet).
Pick from Structure Graze's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
