Edge-lit linear suspension luminaire with integrated Spot.Mate accent optics, delivering 2,600–3,950 lm from Nichia LEDs at CRI > 90.
| Wattage | 63–107 W |
|---|---|
| Luminous flux | 2600–3950 lm |
| Efficacy | 37 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Suspended |
| Dimensions | 200–285 × 1400–2500 mm |
| Distribution | Direct, Indirect |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

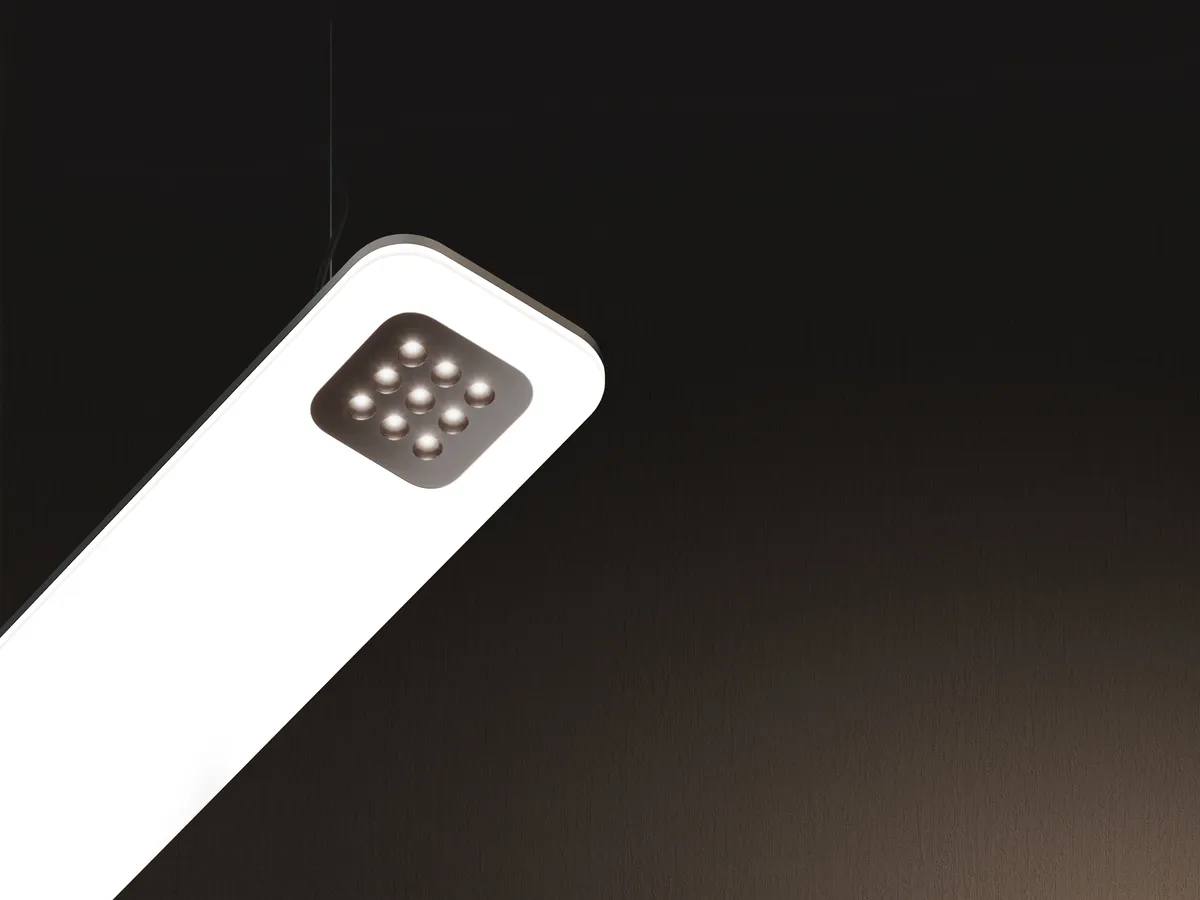

Stick is a Folio architectural linear suspension luminaire built from aluminum and methacrylate, combining a Nichia LED source with an integrated Spot.Mate (Domino Quad) accent accessory. It is offered in three sizes (200–285 mm wide, 1,400–2,500 mm long) delivering 2,600 lm to 3,950 lm, with static CCTs of 2700/3000/3500/4000/5700 K and CRI Ra ≥ 90 (R9 ≥ 50). Available with remote or integrated power supply on a 24 V DC input, dimmable, rated IP40 with an L90 > 60,000-hour rated lifespan; indirect light can be integrated.
Pick from Stick's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
