Architectural 2.5" aperture recessed linear LED slot for grid, drywall, and hard ceilings — individual units and continuous runs from 125 to 1000 delivered lumens per foot, 2700-4000K, 80/90 CRI.
| Luminous flux | 125–1000 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (grid / drywall / hard ceiling), Suspended, Surface mount, Wall mount, Perimeter |
| Dimensions | 2.5" aperture; individual units and continuous runs assembled in 1" increments (2' minimum, up to 8' continuous sections); regressed housing height 5.5" |
| Distribution | Direct |
| Finishes | Matte white |
| Dimming | 0-10V 10% (LD1) or 1% (L11) standard on 120-277V UNV; 347V, low-voltage PoE-compatible (LVN), and DALI 1% tunable-white (D1TW) options; compatible with Wattstopper PLUS, Lutron Athena, nLight, Current NX, and WaveLinx Pro connected controls |
| Rated environments | Dry, Damp location, Chicago Plenum option |
| Rated lifetime | 61,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

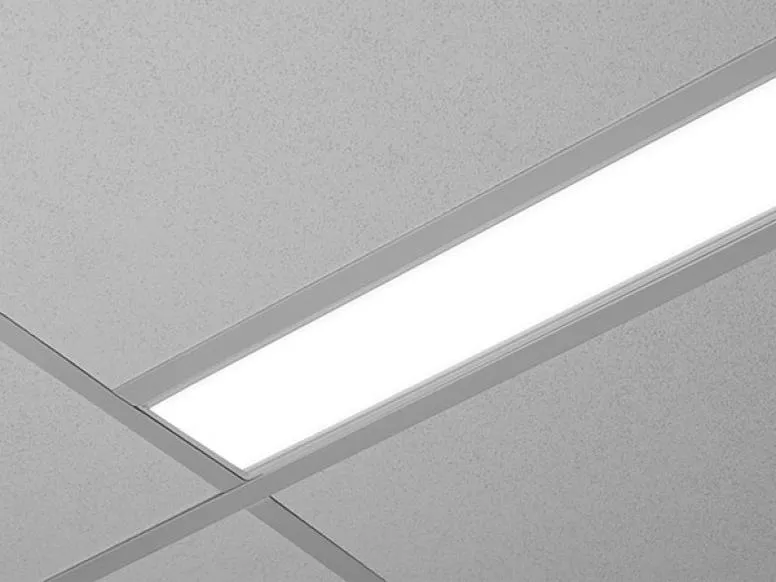

Seem 2 is Focal Point's 2.5" aperture architectural recessed linear LED slot, built for grid, drywall, and hard-ceiling applications with companion perimeter, wall-to-ceiling, suspended, and wall-mount versions. A one-piece extruded aluminum housing with 20-gauge steel end caps carries a satin-finish 0.060" extruded acrylic lens (0.118" on the regressed version) for uninterrupted, pixel- and shadow-free illumination in individual units or continuous runs assembled in 1" increments (2' minimum, up to 8' continuous sections). Shielding options include asymmetric, batwing, and flush lenses, 0.5" and 1.5" pop-down lenses, and a regressed lay-in lens. Delivered output spans 125 to 1000 lumens per foot (500-4000 delivered lumens per 4' unit), reaching up to 140 LPW, and the proprietary linear LED module is offered at 2700K, 3000K, 3500K, and 4000K in both 80+ and 90+ CRI (held to 3 SDCM), plus a 2700-6500K tunable-white option; 3500K and 4000K at 90+ CRI carry a cyanosis observation index of 3.3 or less. The standard 120-277V UNV constant-current driver includes 0-10V analog dimming (10% LD1 or 1% L11), with 347V, low-voltage PoE-compatible (LVN), and DALI 1% tunable-white options, and it integrates with Wattstopper PLUS, Lutron Athena, nLight, Current NX, and WaveLinx Pro connected controls. Emergency battery (10W for 90 minutes), emergency circuit, daylight circuit, and Chicago Plenum are factory options. Finished in matte white polyester powder coat, Seem 2 is UL and cUL listed for indoor dry or damp locations, reports L70 at greater than 61,000 hours, and carries a five-year limited warranty. Many configurations qualify for Focal Point's 10-day Quickship program.
Pick from Seem 2's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
