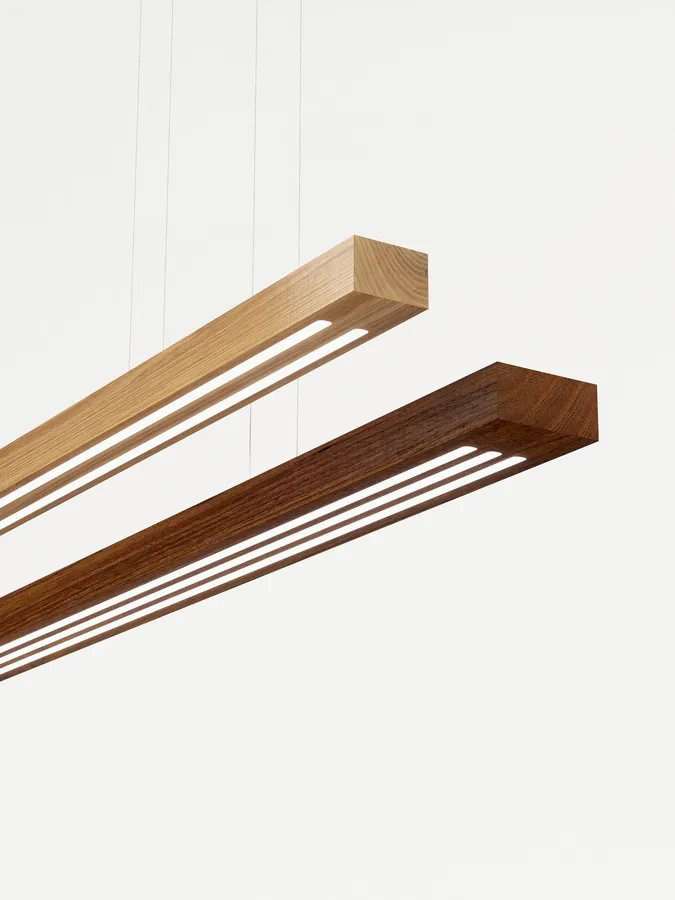

Suspended multi-channel architectural linear with two (Double, 3-3/4" wide) or three (Triple, 5-1/2" wide) parallel chip-on-board light lines, 650-1400 lumens per foot at 90+ CRI, in FSC-certified hardwood, FENIX NTM, and painted finishes.
| Luminous flux | 650–1400 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Suspended (independent cable), Suspended (junction-box support), Suspended (15/16" T-bar support), Suspended (power over cable, remote driver) |
| Dimensions | Double (LW-EB-02): 3-3/4" W x 2-1/2" H; Triple (LW-EB-03): 5-1/2" W x 2-1/2" H. Lengths 2' to 8' in 1' increments (final length confirmed at shop drawing stage) |
| Distribution | Direct, Indirect (3' lengths and longer), Direct + Indirect (indirect is 30% of lm/ft) |
| Finishes | Walnut (FSC), White Oak (FSC), Cherry (FSC), Hard Maple (FSC), White Ash (FSC), Smooth Satin (FSC), Painted Satin Black, Painted Satin White, Custom painted (Farrow & Ball), FENIX NTM (Bianco Kos, Verde Comodoro, Blu Fes, Grigio Bromo, Nero Ingo, custom) |
| Dimming | 0-10V, TRIAC/ELV, DALI, or Lutron EcoSystem; programmable lux/lumens driver, integrated or remote, on 110-277V |
| Rated environments | Dry, Damp location |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
The Linear Double/Triple is aaline's wide-profile, multi-channel member of the Linear Embedded (LW-EB) family, running two parallel light lines in the Double (LW-EB-02, 3-3/4" W x 2-1/2" H) or three in the Triple (LW-EB-03, 5-1/2" W x 2-1/2" H) for high-illuminance coverage of offices, kitchens, and workspaces. Its chip-on-board LED modules are bonded to a robust aluminum heatsink behind a polycarbonate tube diffuser and driven by programmable lux/lumens drivers, delivering 650-1400 delivered lumens per foot at 105 lm/W. Suspended units are built to order in lengths from 2' to 8' in 1' increments, with Direct, Indirect (3' and longer), and Direct + Indirect distributions (indirect output is 30% of the lm/ft), integrated or remote programmable drivers on 110-277V, one- or two-circuit wiring, and 0-10V, TRIAC/ELV, DALI, or Lutron EcoSystem dimming. The LED is offered at 2700K, 3000K, 3500K, and 4000K, at 90+ CRI (3500K is published at 80+ CRI). Finishes span FSC-certified hardwood (Walnut, White Oak, Cherry, Hard Maple, White Ash, and Smooth Satin), painted wood in Satin Black, Satin White, or custom Farrow & Ball colors, and FENIX NTM laminates (Bianco Kos, Verde Comodoro, Blu Fes, Grigio Bromo, Nero Ingo, or custom). Mounting is via independent suspension cable, junction-box support, or 15/16" T-bar clip for integrated drivers, and power-over-cable or T-bar for remote drivers. Manufactured in Toronto, Canada from 100% recyclable components, rated for dry or damp locations, standard UGR<25, and backed by a five-year warranty with a reclamation program.
Pick from Linear Double/Triple's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
