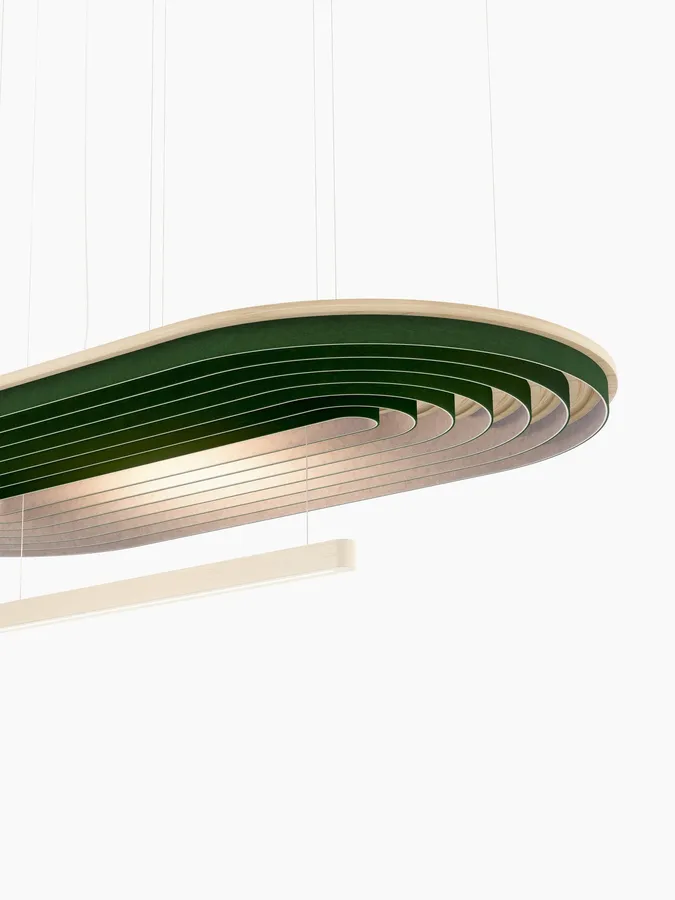

Rounded-edge acoustic-lighting cloud from aaline's Conference Room System, inspired by harmonic serialism — 900 delivered lumens per foot on a modified LW-EB engine, 90 CRI, 2700–4000K, and up to NRC 1.0 sound absorption.
| Luminous flux | 900 lm/ft |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Suspended — adjustable cable (5' standard, on-site adjustable) |
| Dimensions | Rounded-edge acoustic cloud with integrated minimal-profile LW-EB light bar; modular; final dimensions confirmed at shop-drawing stage |
| Distribution | Direct, Indirect, Direct + Indirect |
| Finishes | FSC-certified hardwood (clear and painted), 100% natural acoustic felt (40+ colours) |
| Dimming | 0-10V, TRIAC/ELV, DALI, or Lutron EcoSystem (1- or 2-channel control) |
| Rated environments | Dry, Damp location |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.
CRS Echo (CRS-EC) diversifies aaline's Conference Room System with a softer, minimal aesthetic — smoother curves and rounded edges inspired by harmonic serialism — for suspended ceilings that want acoustic performance without a hard architectural profile. Acoustic modules made from selectively harvested Canadian hardwood and 100% natural felt reach up to NRC 1.0, and integrate a minimal-profile modification of aaline's LW-EB light engine behind a polycarbonate tube diffuser. The engine delivers 900 lm/ft at 8.6 W/ft (105 lm/W), with custom lumen output available on request, and offers a range of CCT — 2700K, 3000K, 3500K, and 4000K — in 1- or 2-channel control using 90 CRI LED chips. Light distribution is Direct, Indirect, or Direct + Indirect to independently tune the warm, welcoming ambience of a room for virtual or in-person meetings. The system runs on 110–277V AC (50/60 Hz), is suspended on adjustable cable (5' standard, on-site adjustable), and dims via 0-10V, TRIAC/ELV, DALI, or Lutron EcoSystem; final dimensions and material selections are confirmed at shop-drawing stage. Finishes include FSC-certified hardwoods in clear or painted coats and 100% natural acoustic felt in 40+ colours. Weighing under 2 kg per foot and rated for dry or damp locations, CRS Echo is ETL/cETL and UL/cUL listed (FSC, RoHS Compliant) with a 5-year warranty and a material reclamation program.
Pick from CRS Echo's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
