Picasso Lighting · Panel Light
Trimless dropped recessed Nubez stretch-fabric luminous panel for slot-grid and T-bar ceilings in 2x2 to 8x12 sizes, specified at 250-625 lm/sq ft (published table lists 9,000-22,500 lm) in 2700-4000K at 80+ or 90+ CRI.
| Luminous flux | 9000–22500 lm |
|---|---|
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K |
| CRI | ≥80 |
| Mounting | Recessed (9/16" slot grid, trimless dropped), Recessed (9/16" and 15/16" T-bar, trimless dropped) |
| Dimensions | 2x2 (24" x 24") to 8x8 (96" x 96") squares plus 2x4, 3x4, 4x5, 5x6, 6x8, 5x10, 8x12 (96" x 144") rectangles; output specified per sq ft |
| Distribution | Direct |
| Finishes | Standard White (special applications by factory consultation) |
| Dimming | 0-10V 1% dimming standard; non-dim and Lutron EcoSystem 1% selectable; PoE, DALI, DMX on request; universal 110-277 VAC |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

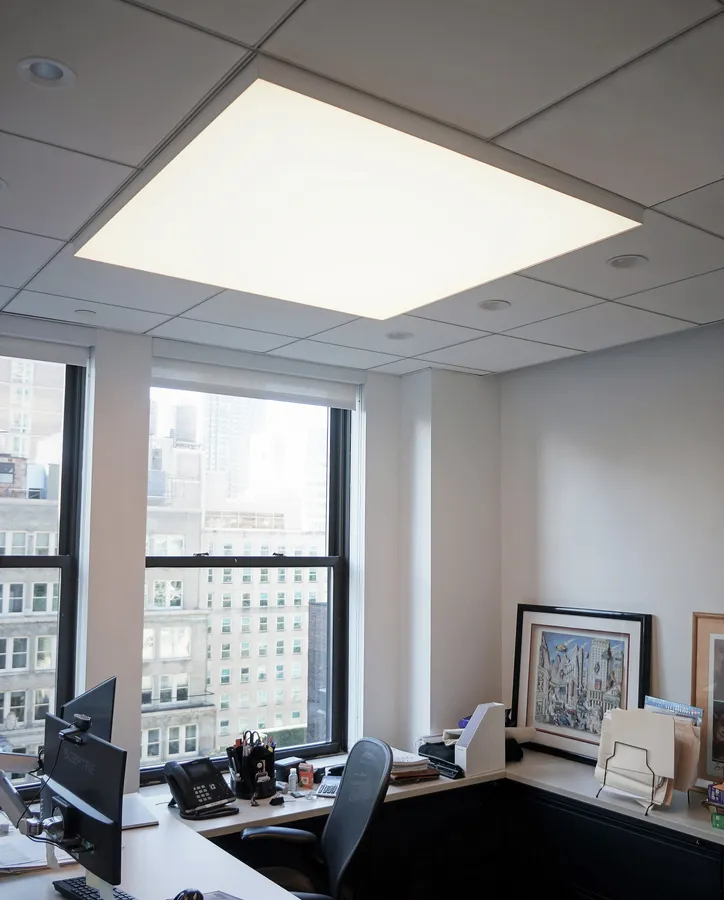

Nubez Dropped Trimless (NUB-RD) is the trimless dropped recessed member of Picasso Lighting's Nubez stretch-fabric series, creating a skylight-like luminous ceiling by stretching dual layers of clear and opal-white flexible membrane over a die-formed 20-gauge steel troffer housing with welded, ground corners and no light leaks; the opal-white layer faces the room and ceiling thickness is unrestricted. A single ordering sheet covers 2x2 through 8x8 squares plus 2x4, 3x4, 4x5, 5x6, 6x8, 5x10, and 8x12 (96 by 144 in) rectangles, installed trimless in 9/16 in slot grid or 9/16 in and 15/16 in T-bar ceilings. Output is specified per square foot in 250, 375, 500, and 625 lm/sq ft packages, with the published quick-reference table listing 9,000 to 22,500 total lumens (250 to 625 lm/sq ft) at 90 lm/W at 3000K, in 2700K, 3000K, 3500K, and 4000K at 80+ or 90+ CRI (3 SDCM), with tunable white 2700-5000K selectable and custom lumens available. Drivers are UL-recognized, universal 110-277 VAC with 0-10V 1% dimming standard; non-dim, Lutron EcoSystem 1%, and custom controls are selectable, with PoE, DALI, and DMX available on request, plus options for Lutron Athena wireless nodes, emergency battery backup, an occupancy sensor, a 6 ft whip, and an NRC-0.55 acoustical membrane. The standard powder-coat finish is white, with special applications by factory consultation, and the wider Nubez series is also offered flush-trim recessed, surface-mounted, and pendant-mounted. Fixtures are IBEW manufactured and assembled in the USA with a BABAA-compliant ordering option, UL listed for dry and damp locations, rated for 50,000-hour LED life, and covered by a limited five-year warranty.
Pick from Nubez Dropped Trimless's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
