Picasso Lighting · Panel Light
Hexagonal surface-mount luminous panel in 24", 36" and 48" diameters with 2,000 to 12,000 delivered lumens, 90+ CRI, 3000-4000K, and pendant, surface and wall mounting variants.
| Wattage | 16.5–99.6 W |
|---|---|
| Luminous flux | 2000–12000 lm |
| Efficacy | 120 lm/W |
| Color temperature (CCT) | 3000K / 3500K / 4000K |
| CRI | ≥90 |
| Mounting | Surface (mounting pan to J-box), Pendant, Wall |
| Dimensions | 24", 36" or 48" diameter hexagonal profile; custom sizes by consultation |
| Distribution | Direct, Direct/Indirect |
| Finishes | White, Black, Custom (RAL/Pantone, wood, plated aluminum) |
| Dimming | 0-10V dimming 1% standard (120/277/347 VAC) or non-dim; Lutron, Eldoled, DALI, DMX, PoE on request; universal 110-277 VAC HPF drivers |
| Rated environments | Dry, Damp location |
| Rated lifetime | 50,000 h |
| Warranty | 5 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

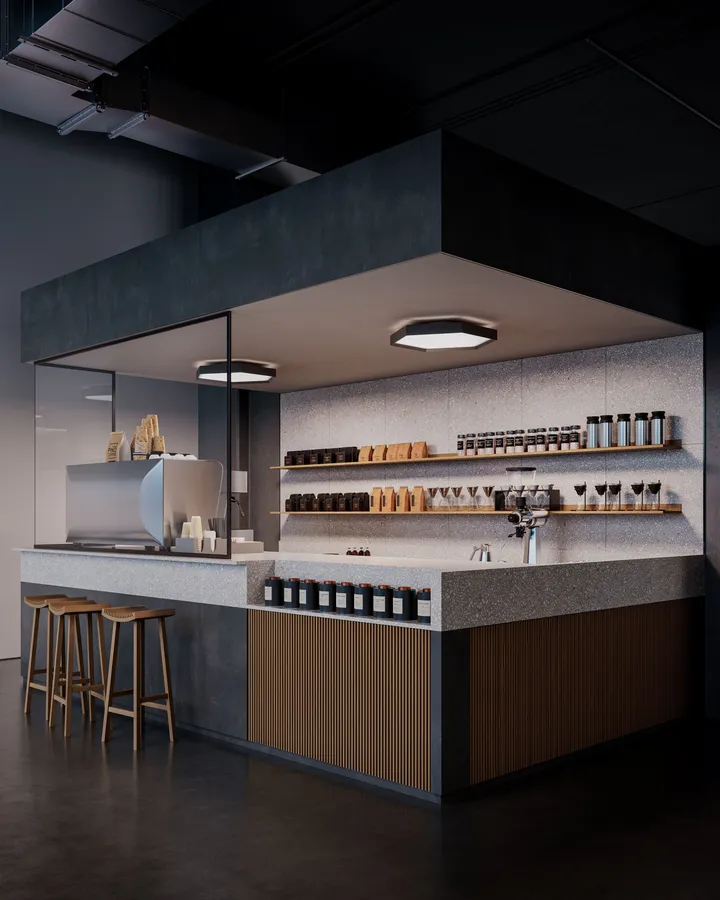

Juliette Hex is a hexagonal decorative luminaire from Picasso Lighting's Juliette Hex and Round series, built as an extruded-aluminum housing (formed and welded) with a flat acrylic PMMA lens for even, low-glare distribution and an optional back soft-glow for direct/indirect ambient enhancement. It comes in three profile sizes — 24", 36" and 48" diameters — with integral drivers and pendant, surface and wall mounting applications; the surface version attaches via a mounting pan to a standard J-box. Published output runs from 2,000 total lumens (24" low) to 12,000 total lumens (48" high) at 16.5-99.6 W and 121 lm/W, with 3000/3500/4000K CCT options, 90+ CRI, 3 SDCM LEDs and 50,000-hour rated LED life; drivers can be factory-set to specific lumen outputs, and tunable white or warm dim is available. Standard powder-coat finishes are white and black, with RAL/Pantone colors, wood finishes and aluminum plating as custom options. Drivers are high-power-factor universal 110-277 VAC with 0-10V 1% dimming standard (120/277/347V variants), non-dim options, and Lutron, Eldoled, DALI, DMX and PoE controls on request. Certified to UL and CSA standards for dry and damp locations, Class A fire rated per ASTM E84, IBEW-assembled in the USA, and covered by a limited five-year warranty.
Pick from Juliette Hex's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
