Square edge-lit aluminium and methacrylate panel by Folio, wall- or ceiling-mounted, delivering 744–950 lm at CRI > 90.
| Wattage | 18–27 W |
|---|---|
| Luminous flux | 744–950 lm |
| Efficacy | 35 lm/W |
| Color temperature (CCT) | 2700K / 3000K / 3500K / 4000K / 5700K |
| CRI | ≥90 |
| IP rating | IP40 |
| Mounting | Wall, Ceiling |
| Dimensions | 200×200–300×300 mm × 35–48 mm deep |
| Distribution | Direct |
| Finishes | White, Black, Custom RAL/NCS/Pantone |
| Rated lifetime | 60,000 h |
| Warranty | 2 years |
Specifications sourced from the manufacturer's datasheet . Verify against the current revision before specifying.

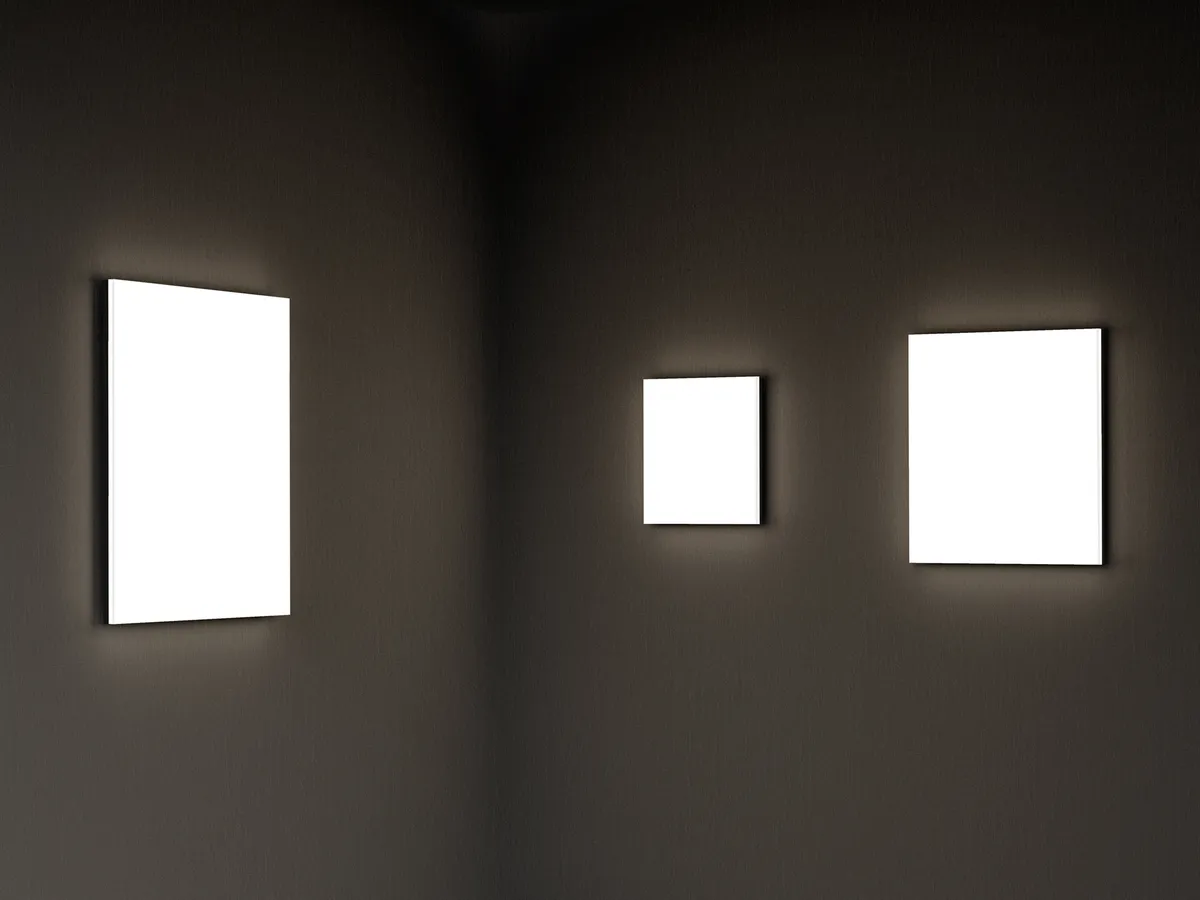

Pixel is a minimal square panel from Folio's Architectural range, built in aluminium with a methacrylate diffuser and Nichia LEDs. It installs on the wall or, as the Minus ceiling version, on the ceiling, in 200×200, 250×250 and 300×300 mm sizes. Standard CCTs are 2700 K, 3000 K, 3500 K, 4000 K and 5700 K at CRI Ra ≥ 90 (R9 ≥ 50), and the panel runs on 24 V DC with a remote or integrated power supply. It carries an L90 > 60,000-hour rating at 50 °C and a 2-year warranty.
Pick from Pixel's published options to compose a copyable, submittal-ready specification. All choices come from the manufacturer datasheet — confirm the final build against the current revision before ordering.
Submittal summary
